Productnummer: 3513558

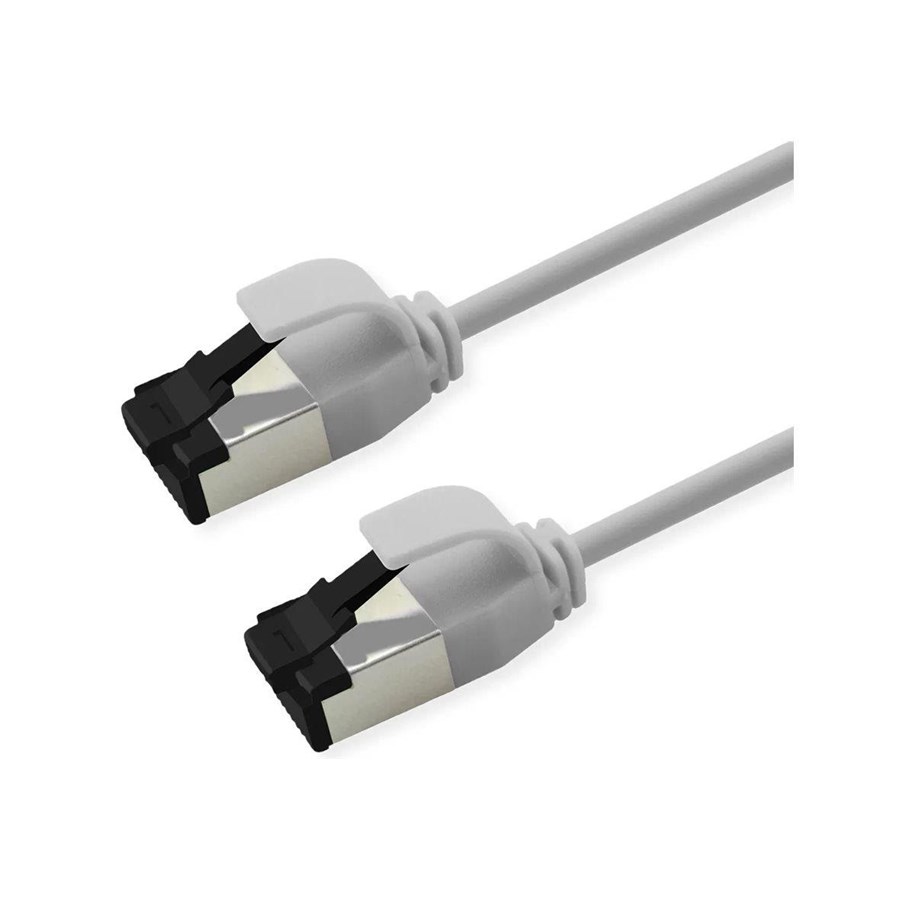

Roline patch cable - 1.5 m - white RAL 9003 - Wit

Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 1.5 m, 4.5 mm, S/FTP, PiMF, CAT 8.1, IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt, slank, gevormd, zonder haken, met strengen, wit, RAL 9003

39,91 € 32,98 € excl. BTW
Goedkoopste privé verzending 4,99 €
Bestelproduct, 5 - 6 werkdagen levertijd

The Roline patch cable by Secomp is designed to deliver performance and reliability for networking needs. Its S/FTP (Shielded Foiled Twisted Pair) technology features foil with braid shielding, which helps reduce interference while ensuring a stable connection. The cable is compliant with various standards such as IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt, suitable for Power over Ethernet (PoE) applications. It supports a data transfer rate of up to 40 Gbps, catering to high-speed network requirements. The cable is constructed with low smoke zero halogen (LSZH) materials that enhance safety in the event of fire by reducing smoke emission and toxic fumes.This patch cable is equipped with gold-plated RJ-45 connectors on both ends, ensuring optimal connectivity. Its design includes molded construction, kink protection, and snagless features that contribute to durability and ease of handling. With a slim profile and a bending radius of 27 mm, it can fit into tight spaces while maintaining performance integrity. The cable is also PoE+ and PoE++ ready, which adds to its versatility in various networking environments.

Producent
Productnummer
3513558
Model
21.15.3464
EAN
7630049638921
Naar de website van de producent
Productbeschrijving
Roline verbindingskabel - 1.5 m - wit, RAL 9003
Type
Verbindingskabel - CAT 8.1 - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Technologie
S/FTP, PiMF
Beschermingsmateriaal
Folie met boordsel
Draden per kabel
8 bedrading
Voorzieningen
Slank, gevormd, zonder haken, met strengen, PoE-gereed, dubbel afgeschermd, afgeschermde stekkers, maximaal 40 Gbps, blanke koperdraad, knikbescherming, 1:1 pinout, buigradius 27 mm, PoE+ Ready, geschikt voor PoE++, vergulde contacten
Kabellengte
1.5 m
Doorsnede
4.5 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Wit, RAL 9003

Algemeen

Netwerkkabeltype
Verbindingskabel - CAT 8.1 - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Technologie
S/FTP, PiMF
Beschermingsmateriaal
Folie met boordsel
Materiaal van omhulsel
Laag Rook Geen Halogenen (LSZH) / TPE
American Wire Gauge (AWG)
28
Draden per kabel
8 bedrading
Paren per kabel
4 paren
Impedantie
100 ohm
Vlakke aansluiting
Goud
Voorzieningen
Slank, gevormd, zonder haken, met strengen, PoE-gereed, dubbel afgeschermd, afgeschermde stekkers, maximaal 40 Gbps, blanke koperdraad, knikbescherming, 1:1 pinout, buigradius 27 mm, PoE+ Ready, geschikt voor PoE++, vergulde contacten
Kabellengte
1.5 m
Doorsnede
4.5 mm
Kleur
Wit, RAL 9003

Connectiviteit

Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male

Diversen

Conformiteitsnormen
TIA/EIA-568, ISO 11801, REACH, RoHS, EN50173, ANSI/TIA 568.2-D, IEC60332-1-2, IEC 61034, IEC 60754-2

Omgevingsparameters

Min. gebruikstemperatuur
-10 °C
Max. gebruikstemperatuur
60 °C
