Productnummer: 3513627

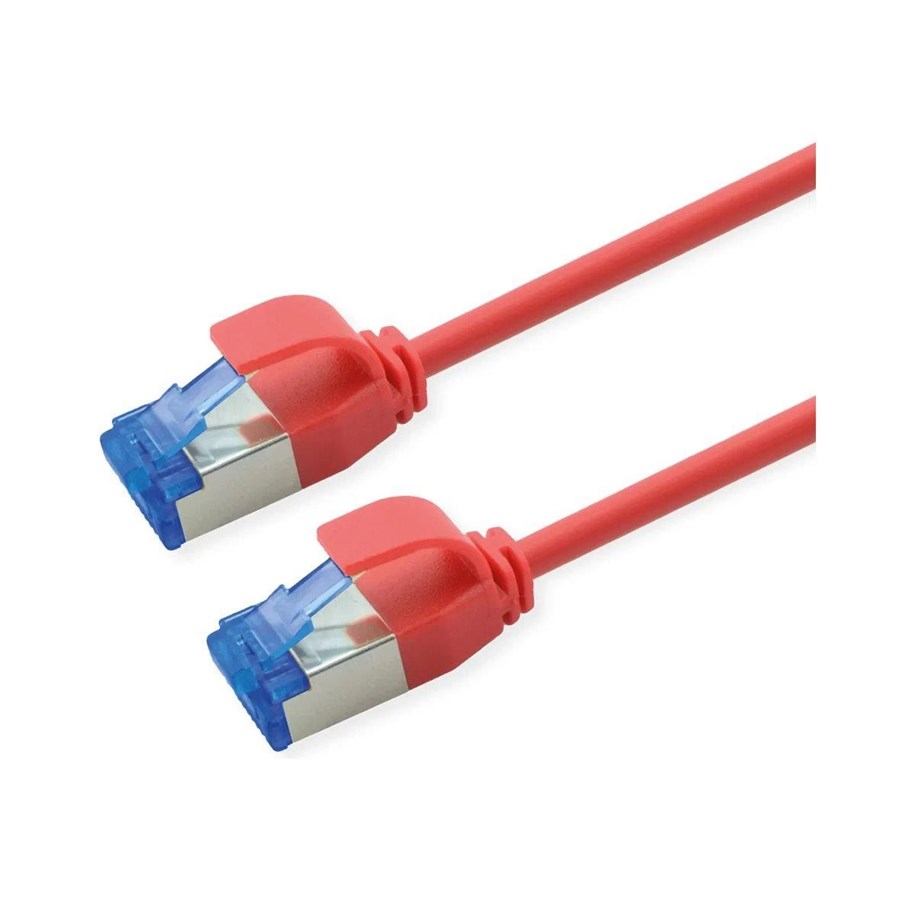

Roline patch cable - 1.5 m - red pantone 199C - Rood

Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 1.5 m, 4.5 mm, S/FTP, PiMF, CAT 6a, IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt, slank, halogeenvrij, gevormd, zonder haken, rood, pantone 199C

38,91 € 32,16 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd

The Roline patch cable offers performance and reliability for network connections. Designed with S/FTP technology and foil with braid shielding, this cable ensures minimal interference and maximum signal clarity. With a Low Smoke Zero Halogen (LSZH) jacket material, it provides a safer environment in case of fire, making it an ideal choice for various applications. Featuring PoE capabilities and supporting speeds of up to 10 Gbps, this CAT 6a cable is suitable for both personal and professional networking needs.Equipped with gold-plated connectors and a tangle-free design, the Roline cable is built for durability and ease of use. The locking lever ensures a secure connection while the slim profile makes it easy to manage in tight spaces. With a bending radius of 27 mm, flexibility is maintained without compromising performance. Compliant with important standards such as IEEE and ISO, it meets various environmental and operational requirements.

Producent
Productnummer
3513627
Model
21.15.4304
EAN
7630049637955
Naar de website van de producent
Productbeschrijving
Roline verbindingskabel - 1.5 m - rood, pantone 199C
Type
Verbindingskabel - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Technologie
S/FTP, PiMF
Beschermingsmateriaal
Folie met boordsel
Draden per kabel
8 bedrading
Voorzieningen
Slank, halogeenvrij, gevormd, zonder haken, maximaal 10 Gbps, PoE-gereed, blanke koperdraad, buigradius 27 mm, vergrendelingshevel, PoE+ Ready, geschikt voor PoE++, 1:1 pinout, knopenvrij
Kabellengte
1.5 m
Doorsnede
4.5 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Rood, pantone 199C

Algemeen

Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Technologie
S/FTP, PiMF
Beschermingsmateriaal
Folie met boordsel
Materiaal van omhulsel
Weinig rook, geen halogenen (Low Smoke Zero Halogen = LSZH)
American Wire Gauge (AWG)
28
Draden per kabel
8 bedrading
Vlakke aansluiting
Goud
Voorzieningen
Slank, halogeenvrij, gevormd, zonder haken, maximaal 10 Gbps, PoE-gereed, blanke koperdraad, buigradius 27 mm, vergrendelingshevel, PoE+ Ready, geschikt voor PoE++, 1:1 pinout, knopenvrij
Kabellengte
1.5 m
Doorsnede
4.5 mm
Kleur
Rood, pantone 199C

Connectiviteit

Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male

Diversen

Conformiteitsnormen
Class Ea, ISO 11801, REACH, RoHS 2.0, EN50173, ANSI/TIA 568.2-D

Omgevingsparameters

Min. gebruikstemperatuur
-10 °C
Max. gebruikstemperatuur
60 °C

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
