Productnummer: 3397464

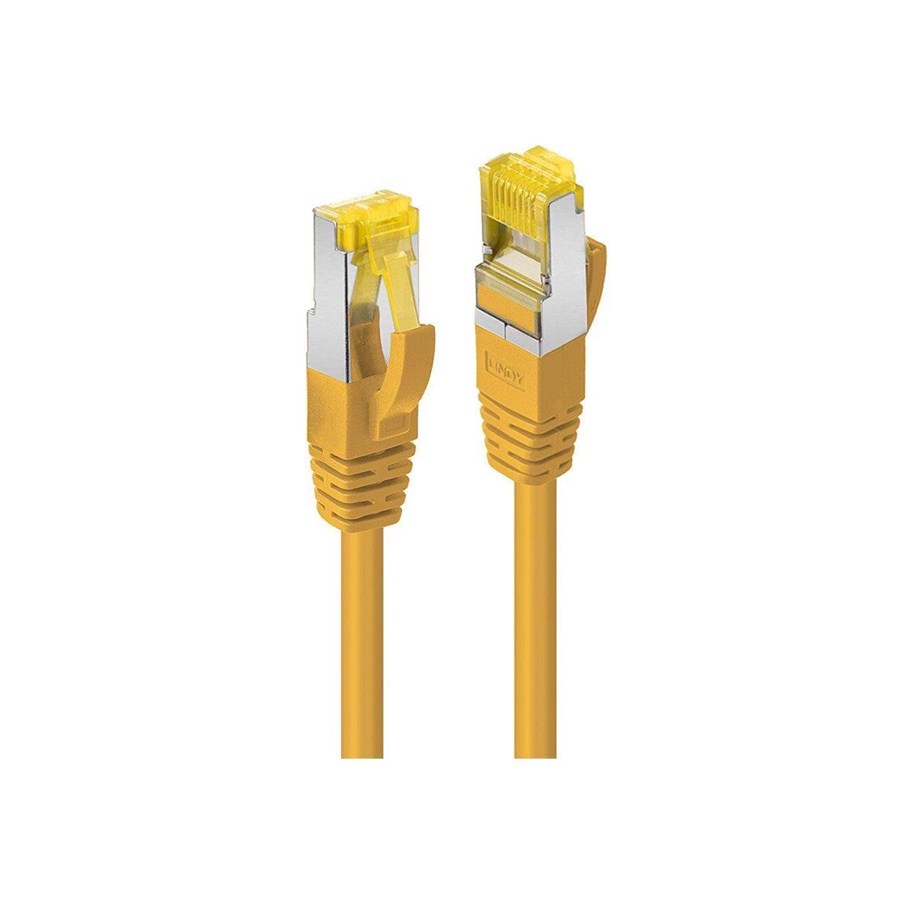

Lindy patch cable - 1 m - yellow - Geel - 1m
Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 1 m, 6.5 mm, S/FTP, CAT 7 (kabel)/CAT 6a (aansluitingen), halogeenvrij, zonder haken, geel
6,78 €
5,60 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Cat 7 S/FTP LSZH network cable with Cat 6a connectors supports bandwidth up to 600 MHz and features a snagless design with gold-plated contacts for Ethernet standards up to 10 GBase-T.The Cat 7 cable material for operating frequencies up to 600 MHz with braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centers, server rooms, rack mounting of network and control cabinets etc. for networks of 10 GBase-T.The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.This product uses Cat 7 cable material. The Cat 7 standard originally defined the GG45 connectors, which were intended as a further development of RJ-45, but were not able to establish themselves on the market. In the meantime, the RJ-45 connector developed to easily meet the requirements of Cat 7, but has never been defined for Cat 7. Therefore the imprint on the cable reads as follows: "Cat 6a S/FTP patch cords with 600 MHz raw cable".
Producent
Productnummer
3397464
Model
47662
EAN
4002888476621
Naar de website van de producent
Productbeschrijving
Lindy verbindingskabel - 1 m - geel
Type
Verbindingskabel - CAT 7 (kabel)/CAT 6a (aansluitingen)
Technologie
S/FTP
Beschermingsmateriaal
Folie met aluminium vlechtwerk
Voorzieningen
Halogeenvrij, zonder haken, spanningontlasting, grendelbescherming, roestbestendig, polycarbonaat behuizing, koperen geleiders, buigradius 78 mm, vergulde pinnen
Lengte
1 m
Doorsnede
6.5 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Geel
Pakkettype
Plastic zak
Algemeen
Netwerkkabeltype
Verbindingskabel - CAT 7 (kabel)/CAT 6a (aansluitingen)
Technologie
S/FTP
Beschermingsmateriaal
Folie met aluminium vlechtwerk
Materiaal van omhulsel
Halogeenvrij (LSZH) / thermoplastisch elastomeer (TPE)
American Wire Gauge (AWG)
26
Vlakke aansluiting
Nikkel
Voorzieningen
Halogeenvrij, zonder haken, spanningontlasting, grendelbescherming, roestbestendig, polycarbonaat behuizing, koperen geleiders, buigradius 78 mm, vergulde pinnen
Lengte
1 m
Doorsnede
6.5 mm
Kleur
Geel
Connectiviteit
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Diversen
Conformiteitsnormen
UL, RoHS, ISO/IEC 11801, REACH, CP65 - tot 600 MHz
Informatie verpakking
Plastic zak
Garantie van de fabrikant
Service & Support
10 jaar garantie
Omgevingsparameters
Min. gebruikstemperatuur
-10 °C
Max. gebruikstemperatuur
60 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
