Productnummer: 3396619

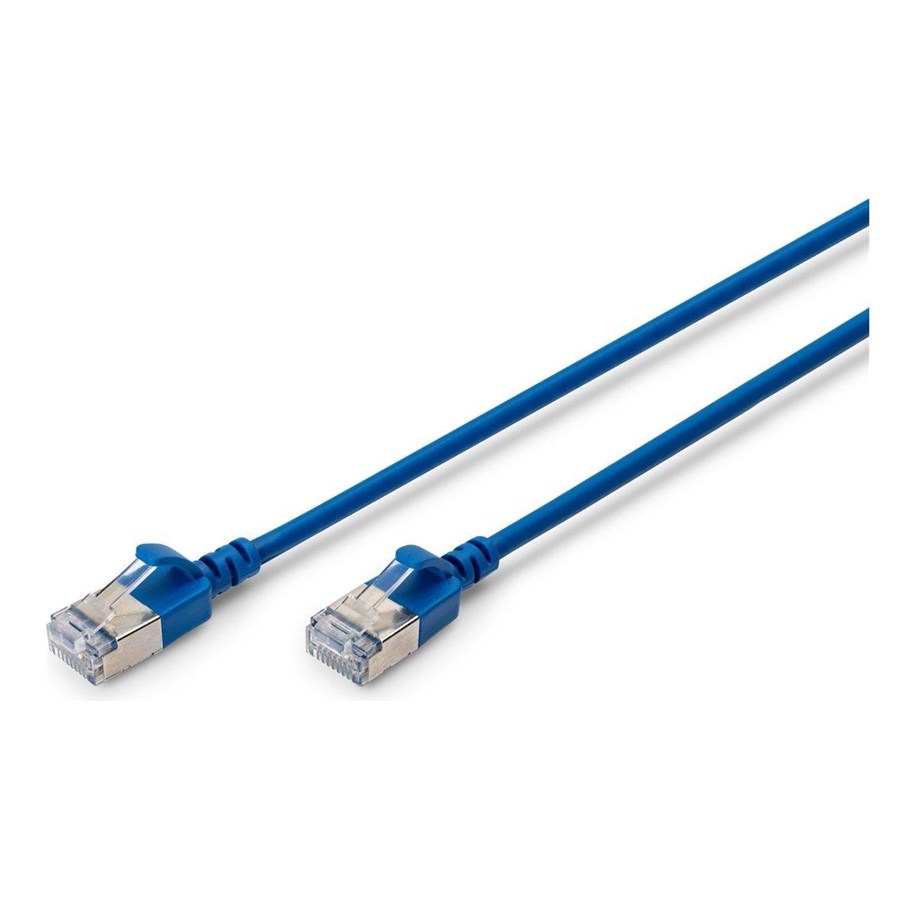

DIGITUS patch cable - 5 m - blue - Blauw - 5m

Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 5 m, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogeenvrij, slank, blauw

13,29 € 10,98 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The DIGITUS DK-1632-A-050S-B is a patch cable designed to meet a variety of networking needs. It features a F/FTP design that supports data transmission of up to 10 Gbps. Compliant with IEEE 802.3 standards, this CAT 6a cable is suitable for PoE+ applications, ensuring efficient power delivery alongside data transfer. Made with bare copper conductors, it offers a 1:1 pinout configuration and performance in demanding environments.Built to withstand up to 750 mating cycles, the cable is crafted from Low Smoke Zero Halogen (LSZH) and HDPE materials, providing a slim profile without compromising safety. With a tested frequency of up to 500 MHz and a bending radius of 57 mm, it offers flexibility for various installations. Operating in temperatures ranging from -20 °C to 60 °C, it adheres to multiple compliance standards for durability and reliability in high-performance networks.

Producent
Productnummer
3396619
Model
DK-1632-A-050S-B
EAN
4016032498070
Naar de website van de producent
Productbeschrijving
DIGITUS verbindingskabel - 5 m - blauw
Type
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengte
5 m
Doorsnede
3.8 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Blauw
Pakkettype
Plastic zak

Algemeen

Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Materiaal van omhulsel
Weinig rook geen halogeen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengte
5 m
Doorsnede
3.8 mm
Kleur
Blauw

Connectiviteit

Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male

Diversen

Conformiteitsnormen
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - tot 500 MHz
Informatie verpakking
Plastic zak

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
