Productnummer: 3484718

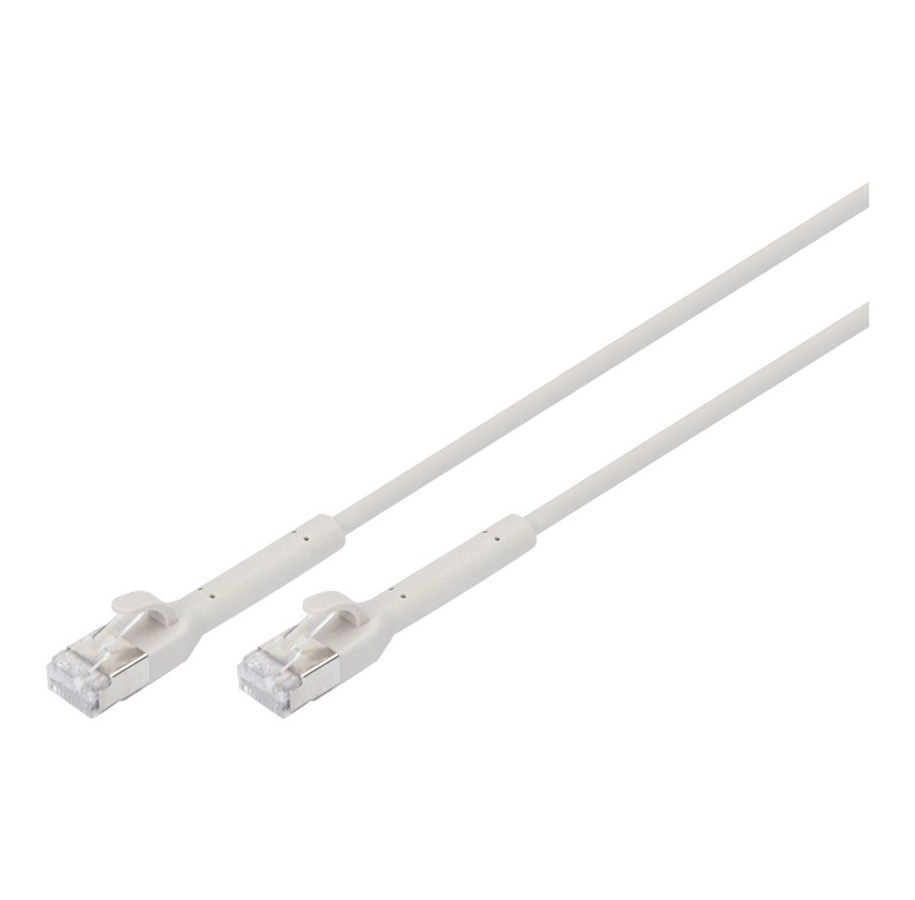

DIGITUS patch cable - 30 cm - grey - Grijs
Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 30 cm, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogeenvrij, gevormd, zonder haken, met strengen, grijs
7,21 €
5,96 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The DIGITUS DK-1632-A-003B patch cable is designed for high-speed networking, supporting data transfer rates of up to 10 Gbps. Constructed with bare copper conductors and featuring a flexible design, this cable is appropriate for installations where bendability and space-saving are essential. The cable complies with IEEE 802.3 standards and includes color-coded fibers, ensuring straightforward installation and organization. Additionally, it is PoE+ Ready, suitable for powering devices alongside data transmission.With metal foil shielding and braid, the cable minimizes interference and maintains signal integrity, while the low smoke zero halogen (LSZH) jacket provides safety in environments where fire hazards are a concern. This cable also includes kink protection and a snagless design, offering durability with up to 750 mating cycles and ensuring longevity in various applications. Suitable for a temperature range from -20°C to 60°C, this CAT 6a patch cable is versatile for both residential and commercial use.
Producent
Productnummer
3484718
Model
DK-1632-A-003B
EAN
4016032504085
Naar de website van de producent
Productbeschrijving
DIGITUS verbindingskabel - 30 cm - grijs
Type
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Beschermingsmateriaal
Metaalfolie met vlechtwerk
Draden per kabel
8 bedrading
Voorzieningen
Halogeenvrij, gevormd, zonder haken, met strengen, Slank, PoE+ Ready, vezels in bijpassende kleuren, knikbescherming, blanke koperdraad, buigzaam, 1:1 pinout, maximaal 10 Gbps, HDPE insulation, 750 gepaarde cycli, flexibel, Near-End Crosstalk (NEXT)
Kabellengte
30 cm
Doorsnede
3.8 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Grijs
Algemeen
Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Beschermingsmateriaal
Metaalfolie met vlechtwerk
Materiaal van omhulsel
Laag Rook Geen Halogenen (LSZH) / TPE
American Wire Gauge (AWG)
32/7
Draden per kabel
8 bedrading
Paren per kabel
4 paren
Voorzieningen
Halogeenvrij, gevormd, zonder haken, met strengen, Slank, PoE+ Ready, vezels in bijpassende kleuren, knikbescherming, blanke koperdraad, buigzaam, 1:1 pinout, maximaal 10 Gbps, HDPE insulation, 750 gepaarde cycli, flexibel, Near-End Crosstalk (NEXT)
Kabellengte
30 cm
Doorsnede
3.8 mm
Gewicht
20 g
Kleur
Grijs
Connectiviteit
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Diversen
Conformiteitsnormen
IEC 60332-1, ISO/IEC 11801, IEC 60603-7-4, IEC 61034, EN 50173, TIA/EIA-364-21 - tot 500 MHz
Garantie van de fabrikant
Service & Support
25 jaar garantie
Omgevingsparameters
Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
