Productnummer: 3394812

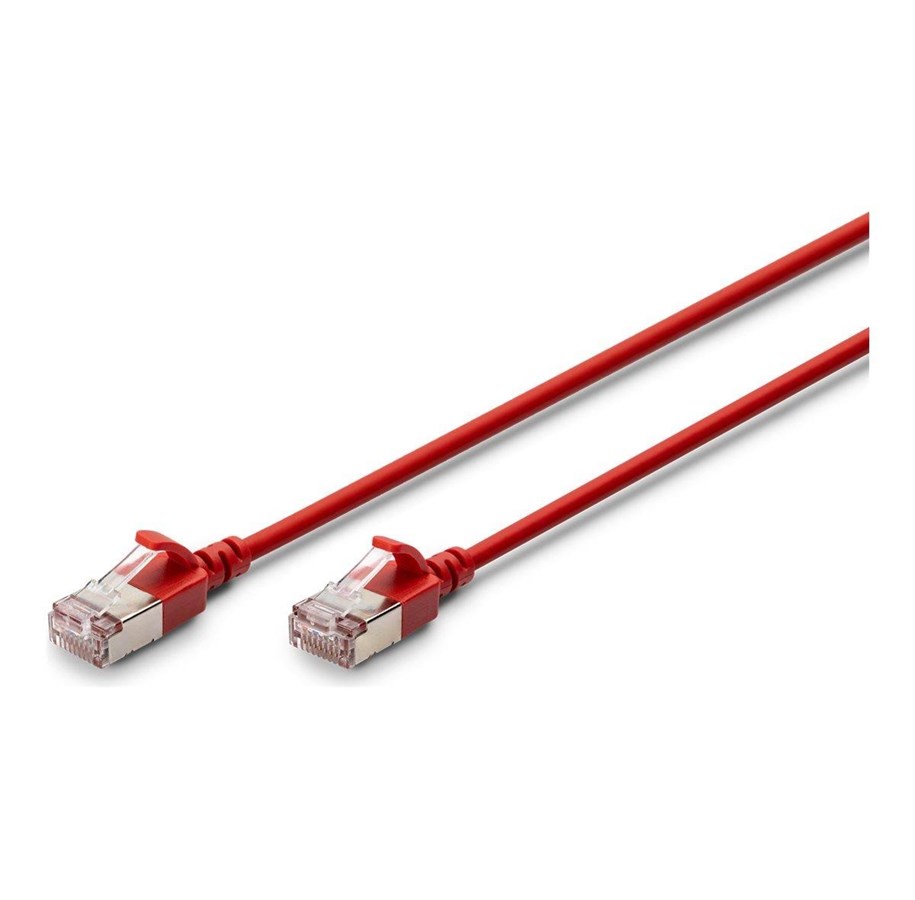

DIGITUS patch cable - 3 m - red - Rood - 3m

Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 3 m, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogeenvrij, slank, rood

11,04 € 9,12 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The DIGITUS patch cable is designed to meet high standards with a focus on performance and flexibility. This CAT 6a cable supports data transfer rates of up to 10 Gbps, providing a solution for various networking applications. Its bare copper conductors ensure optimal conductivity, while the F/FTP technology enhances performance by reducing interference. With a slim design and a minimum bending radius of 57 mm, this cable is easy to manage and install in tight spaces. Compliant with multiple industry standards including IEEE 802.3, this patch cable is also PoE+ ready, suitable for powering devices while delivering data. Its low smoke zero halogen (LSZH) jacket provides safety in environments where fire hazards are a concern. The cable has been tested for frequency performance up to 500 MHz and offers 750 mating cycles, ensuring durability and reliability.

Producent
Productnummer
3394812
Model
DK-1632-A-030S-R
EAN
4016032497929
Naar de website van de producent
Productbeschrijving
DIGITUS verbindingskabel - 3 m - rood
Type
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengte
3 m
Doorsnede
3.8 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Rood
Pakkettype
Plastic zak

Algemeen

Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Materiaal van omhulsel
Weinig rook geen halogeen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengte
3 m
Doorsnede
3.8 mm
Kleur
Rood

Connectiviteit

Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male

Diversen

Conformiteitsnormen
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - tot 500 MHz
Informatie verpakking
Plastic zak

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
