Productnummer: 3394817

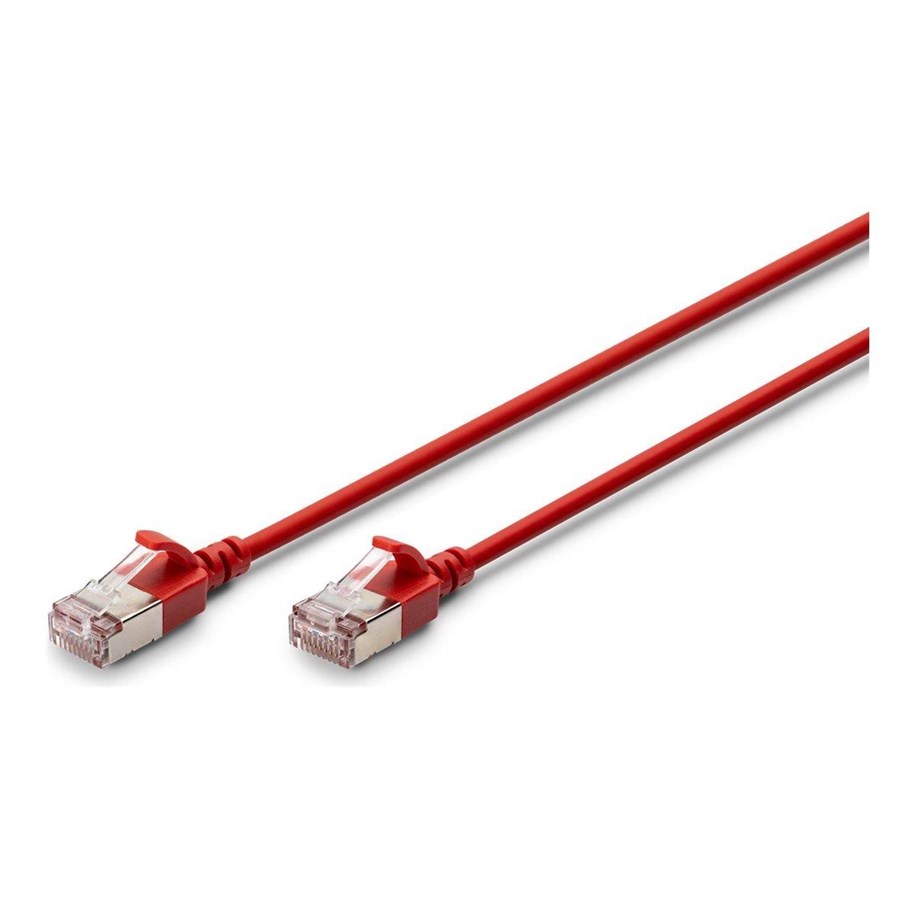

DIGITUS patch cable - 2 m - red - Rood - 2m
Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogeenvrij, slank, rood
8,62 €
7,12 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The DIGITUS DK-1632-A-020S-R patch cable is designed to support high-speed data transmission with a maximum throughput of up to 10 Gbps. Equipped with RJ-45 connectors on both ends, this cable features a flexible design that ensures easy handling and installation in tight spaces. The cable complies with multiple standards, including IEEE 802.3, and is PoE+ ready, making it a choice for powering devices while transmitting data. Constructed with bare copper, the patch cable offers optimal conductivity and low signal loss. Its low smoke zero halogen (LSZH) jacket provides safety in case of fire and halogen-free benefits. With a tested frequency of up to 500 MHz and a robust design allowing for 750 mating cycles, this CAT 6a cable delivers reliable performance over its lifespan.
Producent
Productnummer
3394817
Model
DK-1632-A-020S-R
EAN
4016032497912
Naar de website van de producent
Productbeschrijving
DIGITUS verbindingskabel - rood
Type
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, buigradius 57 mm, Near-End Crosstalk (NEXT)
Kabellengte
2 m
Doorsnede
3.8 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Rood
Pakkettype
Plastic zak
Algemeen
Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Materiaal van omhulsel
Weinig rook geen halogeen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, buigradius 57 mm, Near-End Crosstalk (NEXT)
Kabellengte
2 m
Doorsnede
3.8 mm
Kleur
Rood
Connectiviteit
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Diversen
Conformiteitsnormen
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - tot 500 MHz
Informatie verpakking
Plastic zak
Omgevingsparameters
Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
