Productnummer: 3394820

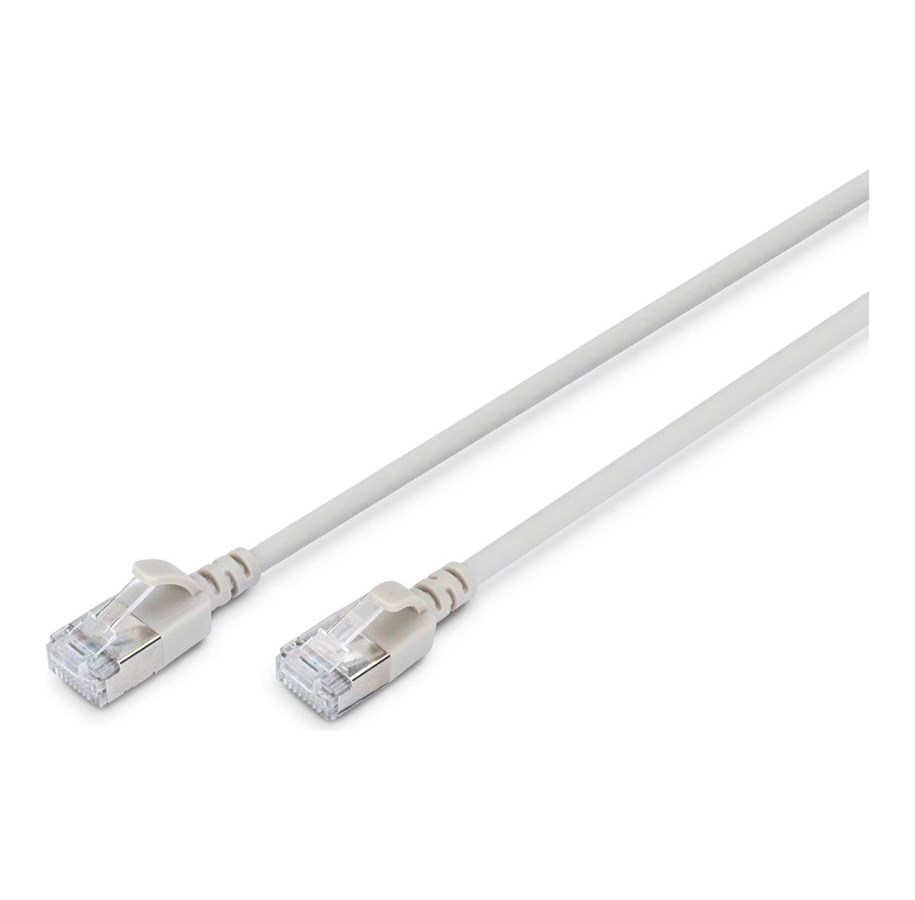

DIGITUS patch cable - 2 m - grey - Grijs - 2m

Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 2 m, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogeenvrij, slank, grijs

8,55 € 7,07 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The DIGITUS DK-1632-A-020S patch cable is designed for high-speed data transfer and reliable network connections. With a transmission speed of up to 10 Gbps and a tested frequency of 500 MHz, it meets the demands of modern networking environments while supporting PoE+ technology for power over Ethernet applications. Made from bare copper, this flexible cable features a slim design and has a minimum bending radius of 57 mm, ensuring ease of installation in tight spaces. The low smoke zero halogen jacket material offers a safe and environmentally friendly solution for cable management, making it suitable for various installations. Compliant with multiple standards including IEEE 802.3 and TIA/EIA-568-C, this CAT 6a cable provides high performance with a capability of up to 750 mating cycles. The T568B wiring scheme ensures compatibility with network devices, while its operational temperature range from -20°C to 60°C assures reliability in diverse environments. Choose the DIGITUS DK-1632-A-020S patch cable for a dependable networking solution that combines flexibility, performance, and safety.

Producent
Productnummer
3394820
Model
DK-1632-A-020S
EAN
4016032497844
Naar de website van de producent
Productbeschrijving
DIGITUS verbindingskabel - 2 m - grijs
Type
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, buigradius 57 mm, Near-End Crosstalk (NEXT)
Kabellengte
2 m
Doorsnede
3.8 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Grijs
Pakkettype
Plastic zak

Algemeen

Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Materiaal van omhulsel
Weinig rook geen halogeen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, buigradius 57 mm, Near-End Crosstalk (NEXT)
Kabellengte
2 m
Doorsnede
3.8 mm
Kleur
Grijs

Connectiviteit

Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male

Diversen

Conformiteitsnormen
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - tot 500 MHz
Informatie verpakking
Plastic zak

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
