Productnummer: 3396615

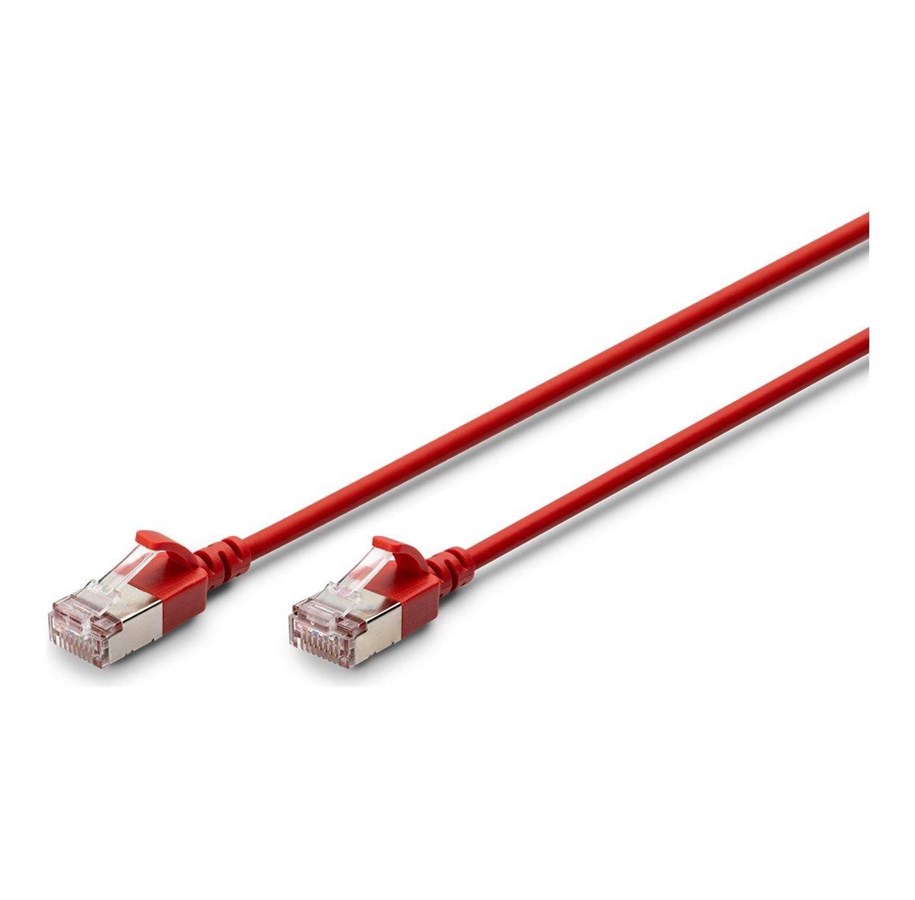

DIGITUS patch cable - 1.5 m - red - Rood - 1m

Verbindingskabel, RJ-45 (M) naar RJ-45 (M), 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogeenvrij, slank, rood

7,95 € 6,57 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The DIGITUS DK-1632-A-015S-R patch cable offers connectivity with a design compliant with IEEE 802.3 standards. It features F/FTP technology that ensures reliable data transmission while supporting up to 10 Gbps speeds. With bare copper construction and a flexible design, it is tailored for ease of installation and durability over time, providing up to 750 mating cycles. This cable is suitable for environments that require a halogen-free solution with a slim profile, crafted from Low Smoke Zero Halogen (LSZH) materials to enhance safety and performance.Designed for both residential and commercial uses, this CAT 6a cable comes with a 1:1 pinout wiring scheme and meets various compliance standards including IEC 60332-1 and ISO/IEC 11801-1. Its ability to operate effectively within a temperature range of -20°C to 60°C makes it suitable for a variety of applications. The bending radius of 57 mm allows for flexible installations in tight spaces, ensuring reliable network performance and connectivity.

Producent
Productnummer
3396615
Model
DK-1632-A-015S-R
EAN
4016032497905
Naar de website van de producent
Productbeschrijving
DIGITUS verbindingskabel - rood
Type
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, buigradius 57 mm, Near-End Crosstalk (NEXT)
Kabellengte
1.5 m
Doorsnede
3.8 mm
Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male
Kleur
Rood
Pakkettype
Plastic zak

Algemeen

Netwerkkabeltype
Verbindingskabel - CAT 6a - IEEE 802.3
Technologie
F/FTP
Bedradingsschema
T568B
Materiaal van omhulsel
Weinig rook geen halogeen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Voorzieningen
Halogeenvrij, slank, PoE+ Ready, blank koper, 1:1 pinout, maximaal 10 Gbps, 750 gepaarde cycli, flexibel, buigradius 57 mm, Near-End Crosstalk (NEXT)
Kabellengte
1.5 m
Doorsnede
3.8 mm
Kleur
Rood

Connectiviteit

Connector
RJ-45 - male
Aansluiting (tweede uiteinde)
RJ-45 - male

Diversen

Conformiteitsnormen
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - tot 500 MHz
Informatie verpakking
Plastic zak

Omgevingsparameters

Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
60 °C
