Productnummer: 3383866

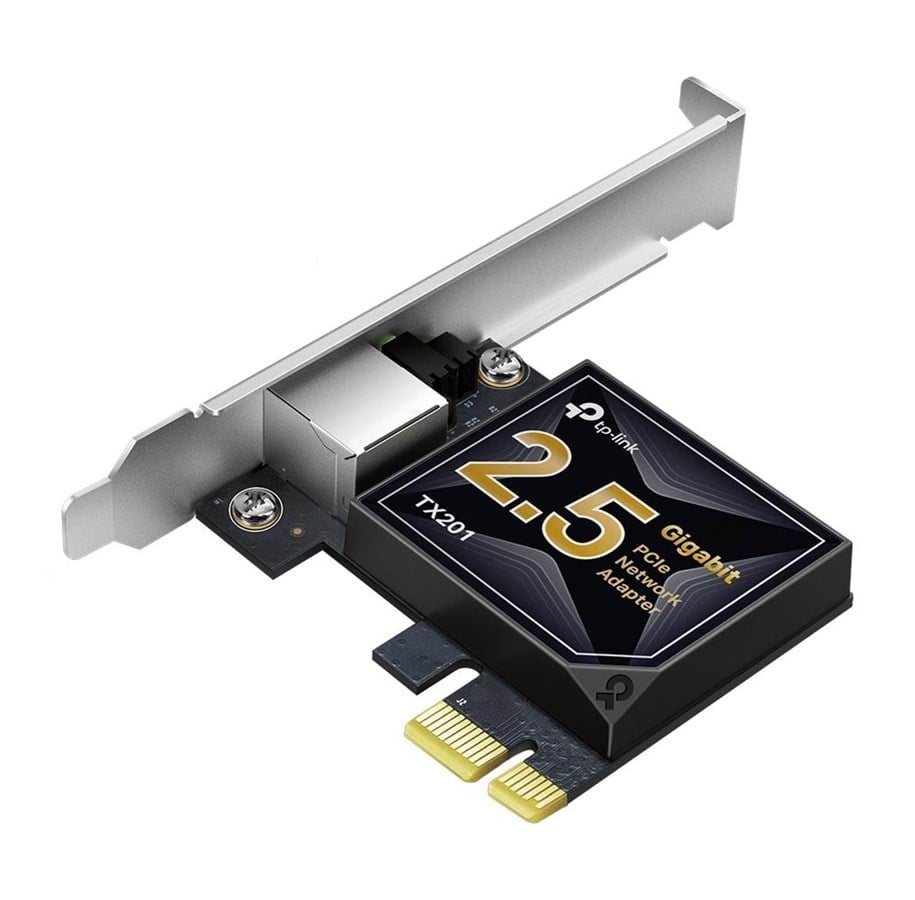

TP-Link TX201 2.5 Gigabit PCIe Network Adapter

TP-Link TX201 netwerkkaart Intern Ethernet 2500 Mbit/s

24,68 € 20,40 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd (verwacht in eigen magazijn 26-6-2026)

All in Seconds with Blazing Fast 2.5G Speeds

Incredible 2.5G Networking

2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

Household Storage, Share in Seconds

For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

2.5G Extremely Fast Internet Response

With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Versatile, Multi-Speed Compatibility

2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.

QoS Support

Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management.

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Easy Setup

Simple software installation with the intuitive Utility on the provided CD.

Comprehensive System Support

Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.

Producent
Productnummer
3383866
Model
TX201
EAN
4897098687833
Naar de website van de producent
Neem contact op met de fabrikant
Connectiviteitstechnologie
Bedraad
Hostinterface
PCI Express
Interface
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
PCI versie
2.1
Maximale overdrachtssnelheid van gegevens
2500 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s
Wake-on-LAN
Ja
Full duplex
Ja
Intern
Ja
Component voor
PC/Laptop
Kleur van het product
Zwart, Grijs
LED-indicatoren
Activiteit, Link
Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Breedte
120,8 mm
Diepte
21,5 mm
Hoogte
98,2 mm
Breedte verpakking
201,5 mm
Diepte verpakking
152,5 mm
Hoogte verpakking
41,5 mm
Gewicht verpakking
170 g
Montagebeugels meegeleverd
Ja
Ondersteunings-cd
Ja
Snelle installatiehandleiding
Ja
Certificaten van naleving
RoHS, Federal Communications Commission (FCC), CE
Naleving van duurzaamheid
Ja

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Hostinterface
PCI Express
Interface
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
PCI versie
2.1

Netwerk

Maximale overdrachtssnelheid van gegevens
2500 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s
Wake-on-LAN
Ja
Full duplex
Ja

Design

Intern
Ja
Component voor
PC/Laptop
Kleur van het product
Zwart, Grijs
LED-indicatoren
Activiteit, Link

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
120,8 mm
Diepte
21,5 mm
Hoogte
98,2 mm

Verpakking

Breedte verpakking
201,5 mm
Diepte verpakking
152,5 mm
Hoogte verpakking
41,5 mm
Gewicht verpakking
170 g

Inhoud van de verpakking

Montagebeugels meegeleverd
Ja
Ondersteunings-cd
Ja
Snelle installatiehandleiding
Ja

Technische details

Certificaten van naleving
RoHS, Federal Communications Commission (FCC), CE

Duurzaamheid

Naleving van duurzaamheid
Ja

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
