Productnummer: 2514310

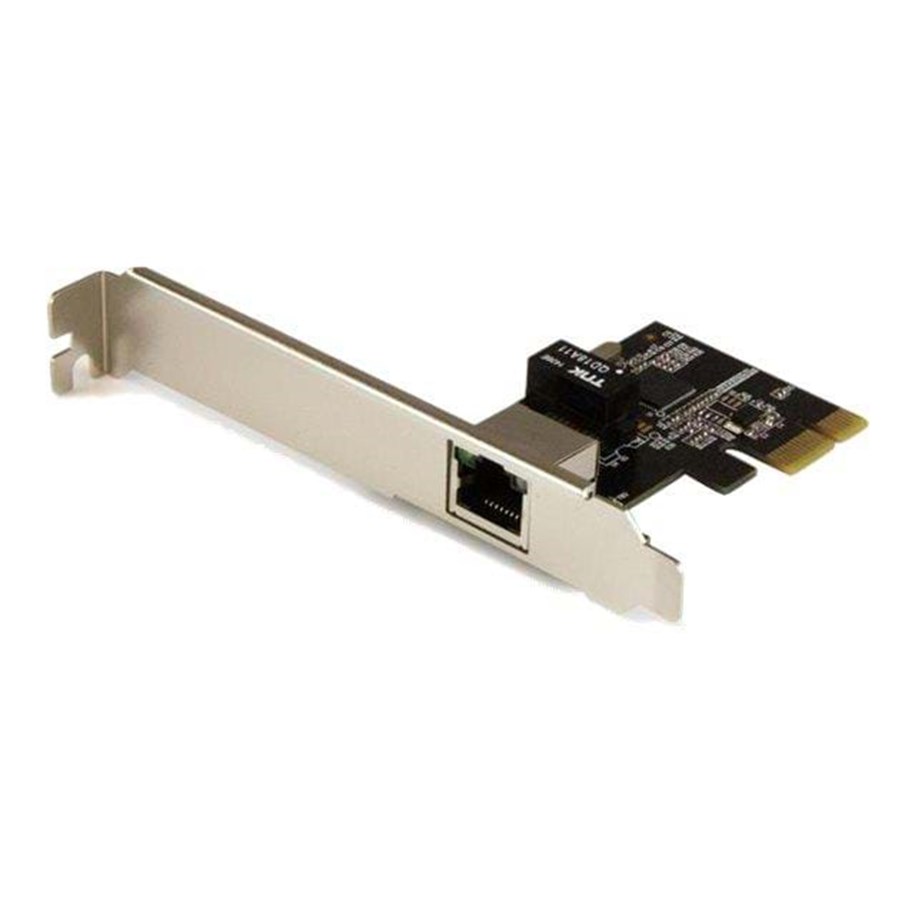

StarTech.com 1-Port Gigabit Ethernet Netwerk Card
PCI Express, Intel I210 NIC, Netværksadapter, PCI Express x4 lav profil, GigE, 10Base-T, 100Base-TX, 1000Base-T, sort
38,24 €
31,60 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot. Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.This Gigabit Ethernet network card utilizes the Intel I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering an
Producent
Productnummer
2514310
Model
ST1000SPEXI
EAN
0065030861038
Naar de website van de producent
Productbeschrijving
Startech 1 poorts PCI Express gigabit ethernet netwerkkaart - Intel 1210 NIC - single port PCIe netwerk adapter kaart met Intel chip - netwerkadapter - PCI Express x1
Type apparaat
Netwerkadapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express x1
Afmetingen (BxDxH)
6.6 cm x 12 cm x 1.8 cm
Gewicht
35 g
Bekabelingstype
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Protocol voor gegevenskoppeling
1GbE
Gegevensoverdrachtsnelheid
1 Gbps
Prestaties
Doorstuurprestatie (duplex): 2 Gbps
Capaciteit
Jumbo frameafmetingen: 9000
Processor
Intel I210-AT
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Kleur
Zwart
Systeemvereisten
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Algemeen
Type apparaat
Netwerkadapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express x1
Netwerkgebruik
Connectiviteit
Met bekabeling
Bekabelingstype
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Protocol voor gegevenskoppeling
Gigabit Ethernet
Gegevensoverdrachtsnelheid
1 Gbps
Prestaties
Doorstuurprestatie (duplex): 2 Gbps
Capaciteit
Jumbo frameafmetingen: 9000
Statuslampjes
Poortstatus, link/activiteit
Voorzieningen
Full-duplexcapaciteit, auto-uplink (auto MDI/MDI-X), Jumbo Frames ondersteuning
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Processor / Geheugen
Processor
Intel I210-AT
Uitbreiding / Aansluiting
Interfaces
1 x netwerk - RJ-45
Diversen
Meegeleverde accessoires
Platte steun
Conformiteitsnormen
FCC, RoHS
Kleur
Zwart
Stroom
Energieverbruik tijdens gebruik
0.8 Watt
Software / Systeemvereisten
Benodigd besturingssysteem
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Afmetingen & gewicht
Breedte
6.6 cm
Diepte
12 cm
Hoogte
1.8 cm
Gewicht
35 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
20 - 80%
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
