Productnummer: 2823361

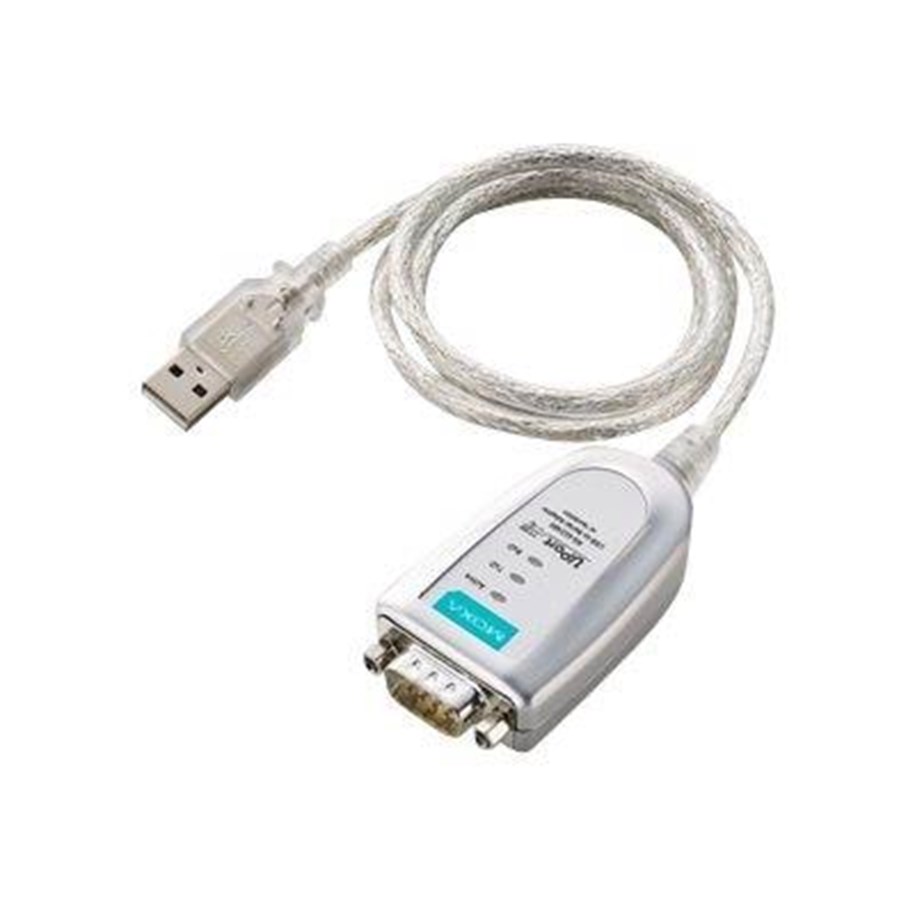

Moxa UPort 1130I
Seriële adapter, USB, RS-422/485 x 1
193,87 €
160,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
The UPort 1100 series USB-to-serial converters are the perfect accessory for laptop computers that do not have a serial port, and are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. All products are compatible with new and legacy serial devices, and can be used with mobile, instrumentation, and point-of-sale applications.
Producent
Productnummer
2823361
Model
UPORT1130i
EAN
5703431442948
Naar de website van de producent
Productbeschrijving
Moxa UPort 1130I - seriële adapter - USB - RS-422/485 x 1
Type apparaat
Seriële adapter
Model
Extern
Interface (Bus) Type
USB
Poorten
RS-422/485 x 1
Afmetingen (BxDxH)
6 cm x 3.75 cm x 2.05 cm
Gewicht
65 g
Protocol voor gegevenskoppeling
RS-422, RS-485
Gegevensoverdrachtsnelheid
921.6 Kbps
Conformiteitsnormen
USB 1.1, USB 2.0
Systeemvereisten
Microsoft Windows, Microsoft Windows CE, Linux
Algemeen
Type apparaat
Seriële adapter
Model
Extern
Interface (Bus) Type
USB
Netwerkgebruik
Poorten
RS-422/485 x 1
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
RS-422, RS-485
Gegevensoverdrachtsnelheid
921.6 Kbps
Statuslampjes
Link/activiteit
Voorzieningen
2 KV Optical Isolation Protection, 4 kV-ESD-bescherming (contactontlading), 8 kV-ESD-bescherming (luchtspleetontlading)
Conformiteitsnormen
USB 1.1, USB 2.0
Uitbreiding / Aansluiting
Interfaces
1 x RS-422/485 - 9-pens D-Sub (DB-9) - male
Diversen
Kabels meegeleverd
1 x USB-kabel (geïntegreerd)
MTBF (gemiddelde tijd tussen twee storingen)
1,949,025 uur
Conformiteitsnormen
cULus, EN 55032, EN55024, CISPR 32, FCC Part 15 B, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, China RoHS, RoHS, WEEE, MIL-HDBK-217F
Software / Systeemvereisten
Benodigd besturingssysteem
Microsoft Windows, Microsoft Windows CE, Linux
Afmetingen & gewicht
Breedte
6 cm
Diepte
3.75 cm
Hoogte
2.05 cm
Gewicht
65 g
Afmetingen & gewicht (transport)
Verzendgewicht
200 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 5 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
5 - 95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
