Productnummer: 3014921

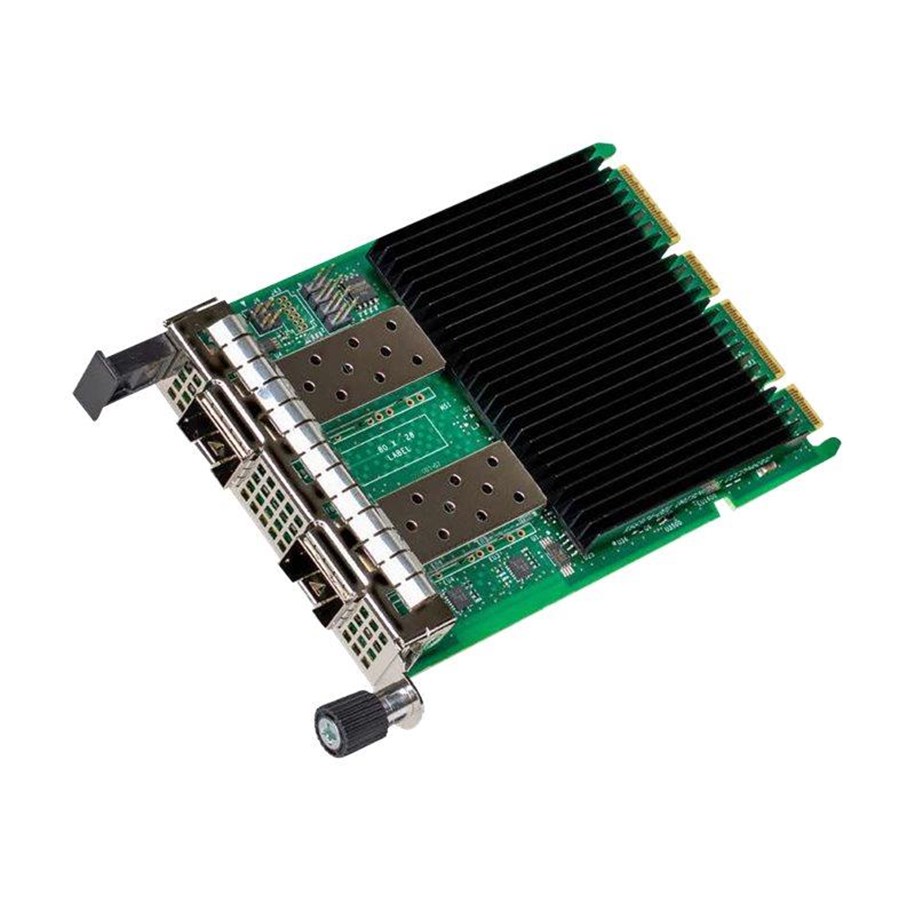

Lenovo ThinkSystem Intel E810-DA2

Netwerkadapter, OCP 3.0, 10/25 Gigabit SFP28 x 2, voor ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node

Lees meer
407,70 € 336,94 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd

The ThinkSystem Intel E810-DA2 10/25GbE SFP28 network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two 25GbE SFP28 ports and key performance optimizations, the E810-XXVDA2 supports solutions across Cloud, Enterprise, and Communications.

Producent
Productnummer
3014921
Model
4XC7A08294
EAN
0889488518470
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Lenovo ThinkSystem Intel E810-DA2 - netwerkadapter - OCP 3.0 - 10/25 Gigabit SFP28 x 2
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
PCI specificatierevisie
PCIe 4.0
Poorten
10/25 Gigabit SFP28 x 2
Afmetingen (BxDxH)
7.6 cm x 11.5 cm
Protocol voor gegevenskoppeling
10GbE, 25GbE
Gegevensoverdrachtsnelheid
25 Gbps
Netwerk-/transportprotocol
iSCSI, TCP/IP, iWARP
Systeemvereisten
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2
Ontworpen voor
ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; VX2330 Appliance; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5530 Appliance; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX75XX Certified Node

Algemeen

Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
PCI specificatierevisie
PCIe 4.0

Netwerkgebruik

Poorten
10/25 Gigabit SFP28 x 2
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
10 Gigabit Ethernet, 25 Gigabit Ethernet
Gegevensoverdrachtsnelheid
25 Gbps
Netwerk-/transportprotocol
iSCSI, TCP/IP, iWARP
Voorzieningen
Hardware root of trust, UEFI-ondersteuning, VMDq, SR-IOV, VMLB, Advanced Packet Filtering, VXLAN, RDMA ondersteuning, MCTP over SMBus

Uitbreiding / Aansluiting

Interfaces
2 x 10Gb Ethernet/25Gb Ethernet - SFP28

Diversen

Conformiteitsnormen
FCC Subpart B, UL, VCCI, BSMI, RCM, KCC, IEEE 1588

Software / Systeemvereisten

Benodigd besturingssysteem
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2

Afmetingen & gewicht

Breedte
7.6 cm
Diepte
11.5 cm

Garantie van de fabrikant

Service & Support
Beperkte garantie - 1 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
55 °C

Informatie over Compatibiliteit

Ontworpen voor
Lenovo ThinkAgile MX3330-F Appliance 7D19
Lenovo ThinkAgile MX3330-H Appliance 7D19
Lenovo ThinkAgile MX3331-F Certified Node 7D67
Lenovo ThinkAgile MX3331-H Certified Node 7D67
Lenovo ThinkAgile VX2330 Appliance 7Z62
Lenovo ThinkAgile VX3330 Appliance 7Z62
Lenovo ThinkAgile VX3331 7Z62
Lenovo ThinkAgile VX3530-G Appliance 7Z63
Lenovo ThinkAgile VX3575-G Integrated System 7D43
Lenovo ThinkAgile VX5530 Appliance 7Z63
Lenovo ThinkAgile VX5575 Integrated System 7D43
Lenovo ThinkAgile VX7330-N Appliance 7Z62
Lenovo ThinkAgile VX7530 Appliance 7Z63
Lenovo ThinkAgile VX7531 Certified Node 7Z63
Lenovo ThinkAgile VX7575 Integrated System 7D43
Lenovo ThinkAgile VX7576 Certified Node 7D43
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71
Lenovo ThinkSystem SR645 7D2X, 7D2Y
Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73
Lenovo ThinkSystem SR665 7D2W
Lenovo ThinkSystem SR670 V2 7Z22, 7Z23

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
