Productnummer: 3136527

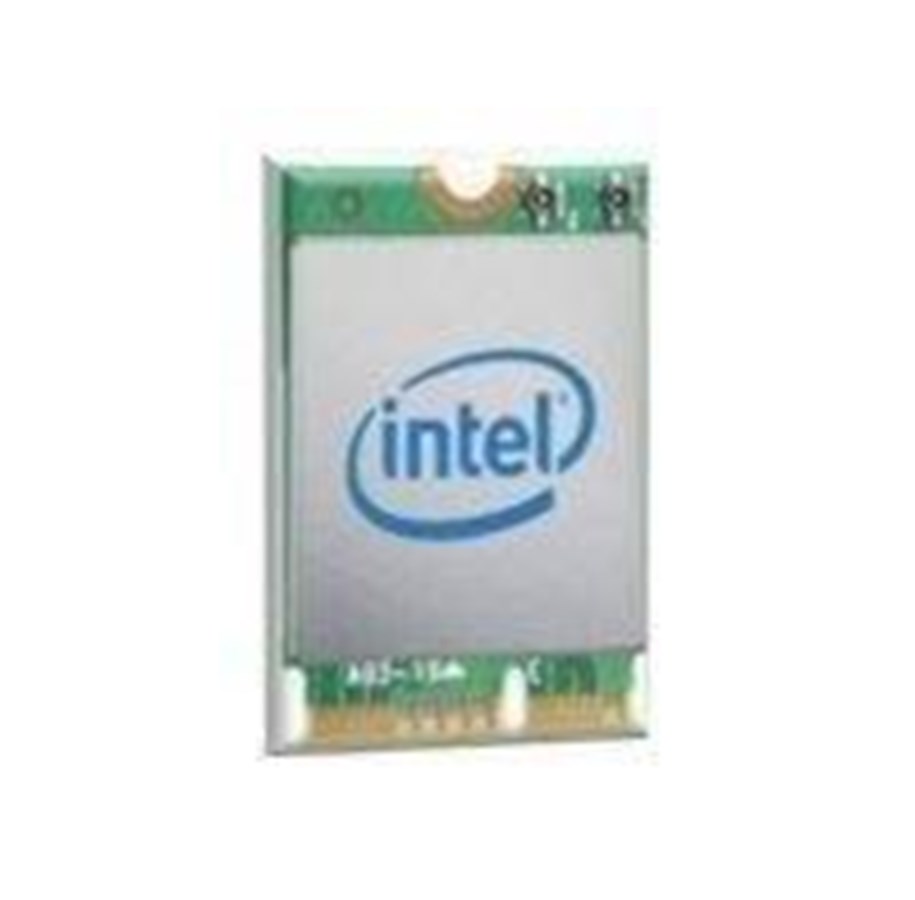

Intel Wi-Fi 6E AX411.BGWG (met vPro)
Netwerkadapter, M.2 2230 (CNVio2), 802.11ax (Wi-Fi 6E), Bluetooth 5.3
33,02 €
27,29 € excl. BTW
Goedkoopste privé verzending 4,99 €
Bestelproduct, 5 - 6 werkdagen levertijd
The Intel AX411 module is a product to support Intel Double Connect technology, enabling two simultaneous Wi-Fi connections. They are designed to support Wi-Fi 6 (and Wi-Fi 6E) technology in the 2.4 GHz, 5 GHz and 6 GHz bands. They support improved TCP throughput and Wi-Fi 6 R2 features, including UL MU-MIMO, which improves UL network capacity in dense environments, as well as support for Bluetooth 5.0. These features maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across the radio frequencies exclusive to Wi-Fi 6E devices, and deliver a significant improvement in user experience in dense deployments. Combined with Intel Core processors and exceptional Intel wireless innovations, the Intel Wi-Fi 6E AX411 module can dramatically improve your connected experience at home, work, or on the go.
Producent
Productnummer
3136527
Model
AX411.NGWG
EAN
0675901880565
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Intel Wi-Fi 6E AX411 - netwerkadapter - M.2 2230 (CNVio2)
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230 (CNVio2)
Afmetingen (BxDxH)
3 cm x 2.2 cm x 0.24 cm
Gewicht
2.83 g
Protocol voor gegevenskoppeling
Wi-Fi 6E, Wi-Fi 5, Bluetooth 5.3
Gegevensoverdrachtsnelheid
2.4 Gbps
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Conformiteitsnormen
Wi-Fi CERTIFIED 6E, Bluetooth 5.3, IEEE 802.11ax, IEEE 802.11, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.11az, IEEE 802.1x
Systeemvereisten
Windows 11, Windows 10 64-bit Edition, Linux
Algemeen
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230 (CNVio2)
Netwerkgebruik
Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.3
Spread Sprectum-methode
OFDMA
Gegevensoverdrachtsnelheid
2.4 Gbps
Lijncoderingsindeling
OFDMA, 1024 QAM
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Voorzieningen
2x2 MU-MIMO-technologie, ondersteunt isochroon kanaal, ondersteuning WMM, WMM-stroombesparing, Wi-Fi Direct, Wi-Fi Agile Multiband, 802.1x authenticatie, ondersteunt 160 MHz-bandbreedte, ondersteunt Intel vPro-technologie
Conformiteitsnormen
Wi-Fi CERTIFIED 6E, Bluetooth 5.3, IEEE 802.11ax, IEEE 802.11, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.11az, IEEE 802.1x
Diversen
Encryptie-algoritme
FIPS 140-2, WPA3, WPA2, 128-bit AES-CCMP, 256 bits-AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP
Conformiteitsnormen
FISMA, UEFI, UL, cUL, CB, IEC 60950-1
Software / Systeemvereisten
Benodigd besturingssysteem
Windows 11, Windows 10 64-bit Edition, Linux
Afmetingen & gewicht
Breedte
3 cm
Diepte
2.2 cm
Hoogte
0.24 cm
Gewicht
2.83 g
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
80 °C
Luchtvochtigheidsgraad bij gebruik
50 - 90% RH (non-condensing)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
