Productnummer: 3263524

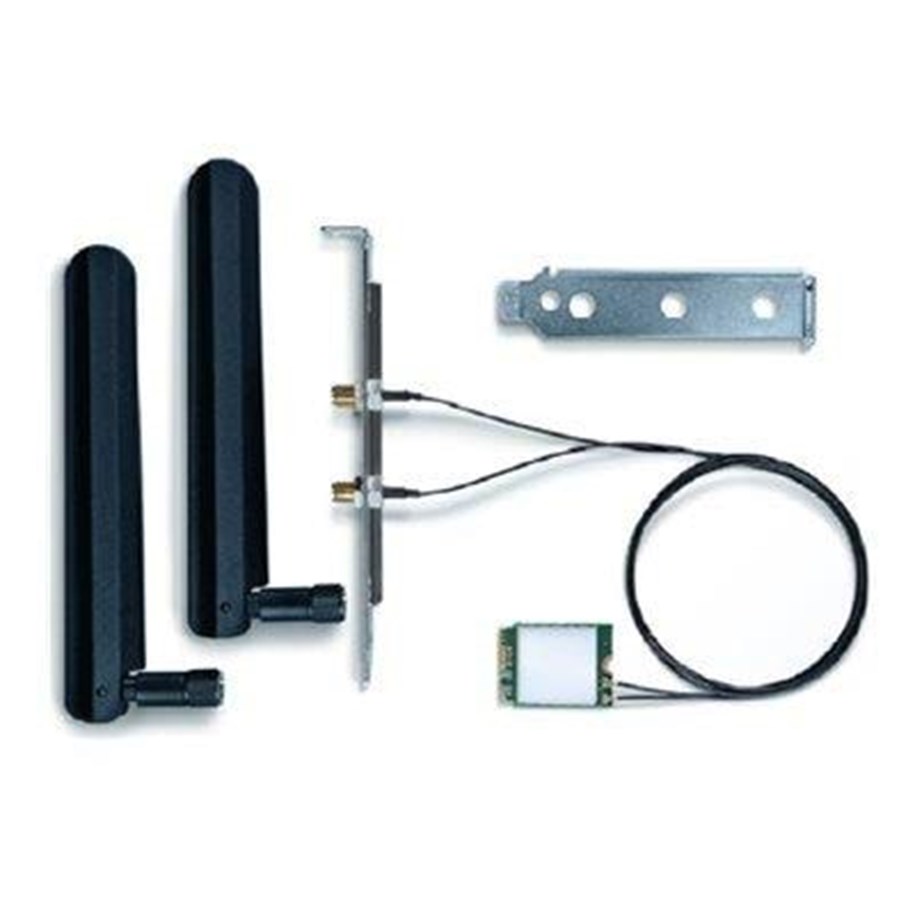

Intel Wi-Fi 6E AX210 (Gig+) Extended Temperature IoT Industrial Kit
2e generatie, IoT Industrial Kit, netwerkadapter, M.2 2230 (A-E Key), 802.11ax (Wi-Fi 6E), Bluetooth 5.3
44,59 €
36,85 € excl. BTW
Goedkoopste privé verzending 4,99 €
Bestelproduct, 15 - 16 werkdagen levertijd
The Intel Wi-Fi 6E AX210 Industrial network adapter is designed to meet the demands of industrial environments, offering reliable wireless connectivity and performance. With support for Wi-Fi 6E technology, it provides comprehensive coverage across the 2.4 GHz, 5 GHz, and 6 GHz bands, ensuring fast and reliable connections. The adapter boasts a high data transfer rate of up to 2.4 Gbps, making it suitable for bandwidth-intensive applications.Security is a priority for the AX210 Industrial, featuring advanced encryption algorithms including WPA3 to protect against unauthorized access and data breaches. It is also compliant with several industry standards, including FIPS 140-2 and FISMA, ensuring that it meets high security requirements. Additionally, the adapter is built to perform in extreme conditions, capable of operating in temperatures ranging from -40 °C to 85 °C, making it a reliable choice for any industrial setting.With features like 2x2 MU-MIMO technology, OFDMA, and support for 160 MHz channel bandwidth, the Intel Wi-Fi 6E AX210 Industrial network adapter is an ideal solution for businesses looking to upgrade their network infrastructure with technology that offers both speed and security.
Producent
Productnummer
3263524
Model
AX210.NGWGI.NVK
EAN
5032037235884
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Intel Wi-Fi 6E AX210 Industrial - 2e generatie - IoT Industrial Kit - netwerkadapter - M.2 2230 (A-E Key)
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230 (A-E Key)
Afmetingen (BxDxH)
2.2 cm x 3 cm x 0.24 cm
Gewicht
3.2 g
Protocol voor gegevenskoppeling
Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3
Gegevensoverdrachtsnelheid
2.4 Gbps
Prestaties
Kanaalbandbreedte: 160 MHz
Capaciteit
Streams: 8
Netwerk-/transportprotocol
TCP
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Conformiteitsnormen
Wi-Fi CERTIFIED 6, Wi-Fi GECERTIFICEERD, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.11-2016, Bluetooth 5.3
Systeemvereisten
Windows 10 Enterprise LTSC, Linux
Algemeen
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230 (A-E Key)
Netwerkgebruik
Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Spread Sprectum-methode
OFDMA
Gegevensoverdrachtsnelheid
2.4 Gbps
Prestaties
Kanaalbandbreedte: 160 MHz
Capaciteit
Streams: 8
Netwerk-/transportprotocol
TCP
Lijncoderingsindeling
1024 QAM, OFDMA
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Voorzieningen
2x2 MU-MIMO-technologie, UEFI-ondersteuning, TWT, ondersteuning WMM, WMM-stroombesparing, Wi-Fi Direct, Wi-Fi Agile Multiband, Wi-Fi Timesync, 802.1x authenticatie
Conformiteitsnormen
Wi-Fi CERTIFIED 6, Wi-Fi GECERTIFICEERD, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.11-2016, Bluetooth 5.3
Antenne
Antenne
Kan extern worden losgemaakt
Hoeveelheid antennes
2
Uitbreiding / Aansluiting
Interfaces
2 x antenne - SMA - male
Diversen
Kabels meegeleverd
1 x coaxiale RF-kabel (extern) - 60.9 cm
Encryptie-algoritme
WPA3, WPA2, WPS, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-SIM, EAP-AKA, 128-bit AES-CCMP, 256 bits-AES-GCMP
Conformiteitsnormen
UL, cUL, CB, FIPS, IEC 60950-1, FIPS 140-2, FISMA
Software / Systeemvereisten
Benodigd besturingssysteem
Windows 10 Enterprise LTSC, Linux
Afmetingen & gewicht
Breedte
2.2 cm
Diepte
3 cm
Hoogte
0.24 cm
Gewicht
3.2 g
Afmetingen & gewicht (transport)
Verzendbreedte
20.5 cm
Verzenddiepte
2.6 cm
Verzendhoogte
14.5 cm
Verzendgewicht
143.5 g
Omgevingsparameters
Min. gebruikstemperatuur
-40 °C
Max. gebruikstemperatuur
85 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
