Productnummer: 3228221

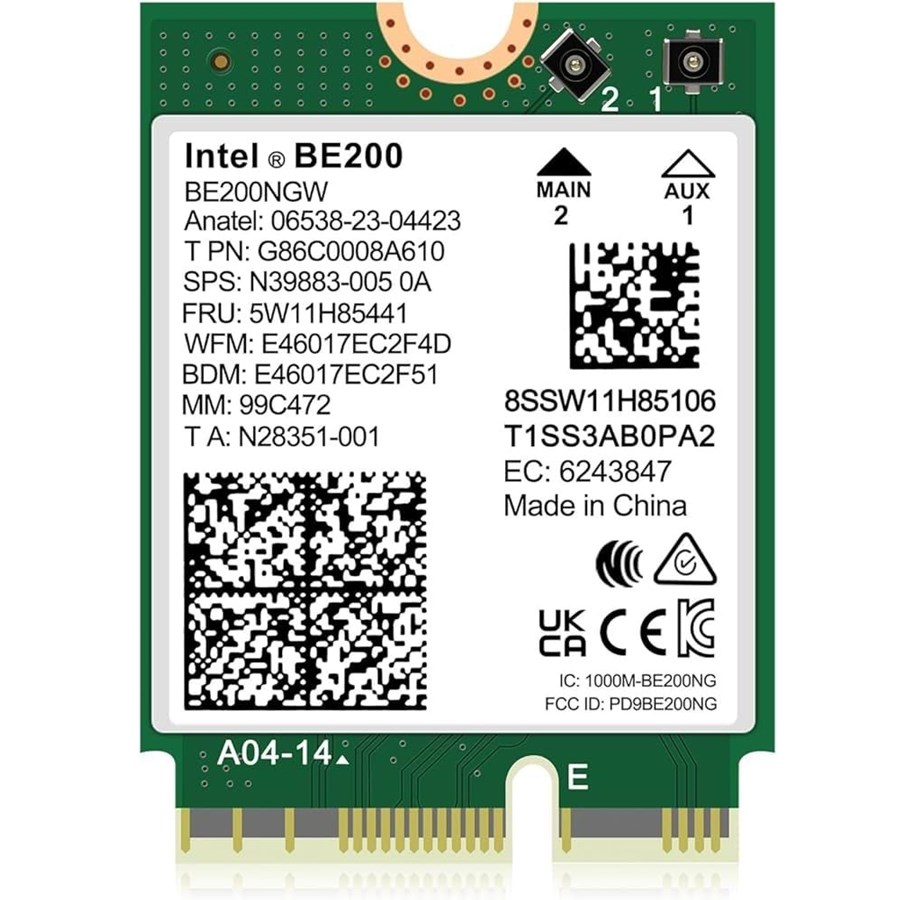

Intel BE200 Wi-Fi 7 2x2 + BT 5.4 / M.2 2230 / With vPro
Netwerkadapter, M.2 2230, 802.11ax (Wi-Fi 6E), 802.11be (Wi-Fi 7), Bluetooth
Please note! Many AMD users have issues getting the new Intel BE200 Wi-Fi 7 modules to work on their AMD platform, we do not recommend these modules currently for AMD users (19. Jan. 2024)
Op voorraad
34,91 €
28,85 € excl. BTW
Goedkoopste privé verzending 4,99 €
2 stks
Op voorraad - 2-3 werkdagen levertijd
The Intel Wi-Fi 7 BE200 network adapter enhances wireless connectivity, designed to deliver speed, reliability, and security. With its support for Wi-Fi 7 standards and Bluetooth 5.4, it offers seamless integration with a wide range of devices, ensuring users stay connected in any scenario. The adapter's impressive data transfer rate of up to 5.8 Gbps, combined with 320 MHz channel bandwidth, makes it ideal for bandwidth-intensive applications, providing smooth experiences. Security is a priority, with advanced encryption algorithms like WPA3-Personal and WPA3-Enterprise safeguarding users' data against threats. Additionally, features such as 2x2 MU-MIMO technology and Wi-Fi Agile Multiband optimize network performance, making the Intel Wi-Fi 7 BE200 a solid choice for those seeking to enhance their connectivity solutions.
Producent
Productnummer
3228221
Model
BE200.NGWG / 99C462
EAN
0675902058499
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Intel Wi-Fi 7 BE200 - netwerkadapter - M.2 2230
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230
Afmetingen (BxDxH)
3 cm x 0.24 cm x 2.2 cm
Gewicht
2.83 g
Protocol voor gegevenskoppeling
Wi-Fi 5, Wi-Fi 6E, Bluetooth, Wi-Fi 7
Gegevensoverdrachtsnelheid
5.8 Gbps
Prestaties
Kanaalbandbreedte: 320 mhz
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Conformiteitsnormen
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, IEEE 802.11az, IEEE 802.11be, wifi-gecertificeerd 7, Bluetooth 5.4
Systeemvereisten
Linux, Windows 10, Windows 11
Algemeen
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230
Netwerkgebruik
Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Spread Sprectum-methode
OFDMA
Gegevensoverdrachtsnelheid
5.8 Gbps
Prestaties
Kanaalbandbreedte: 320 mhz
Lijncoderingsindeling
64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM, 4096 QAM, OFDMA
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Voorzieningen
Ondersteuning WMM, Wi-Fi Direct, 802.1x authenticatie, beschermde beheerframes, 2x2 MU-MIMO-technologie, WMM-stroombesparing, ondersteunt Intel vPro-technologie, Wi-Fi Agile Multiband, draadloze radio inschakelen/uitschakelen
Conformiteitsnormen
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, IEEE 802.11az, IEEE 802.11be, wifi-gecertificeerd 7, Bluetooth 5.4
Diversen
Encryptie-algoritme
PEAP, WPA2, 128-bit AES-CCMP, EAP-SIM, EAP-AKA, WPA3-Enterprise, WPA3-Personal, 256 bits-AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-MSCHAPv2
Conformiteitsnormen
UL, cUL, CB, FIPS 140-2, IEC 60950-1, WEEE, FIPS, WFA
Software / Systeemvereisten
Benodigd besturingssysteem
Linux, Windows 10, Windows 11
Afmetingen & gewicht
Breedte
3 cm
Diepte
0.24 cm
Hoogte
2.2 cm
Gewicht
2.83 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 1 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
80 °C
Luchtvochtigheidsgraad bij gebruik
50 - 90% RH (non-condensing)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
