Productnummer: 2930214

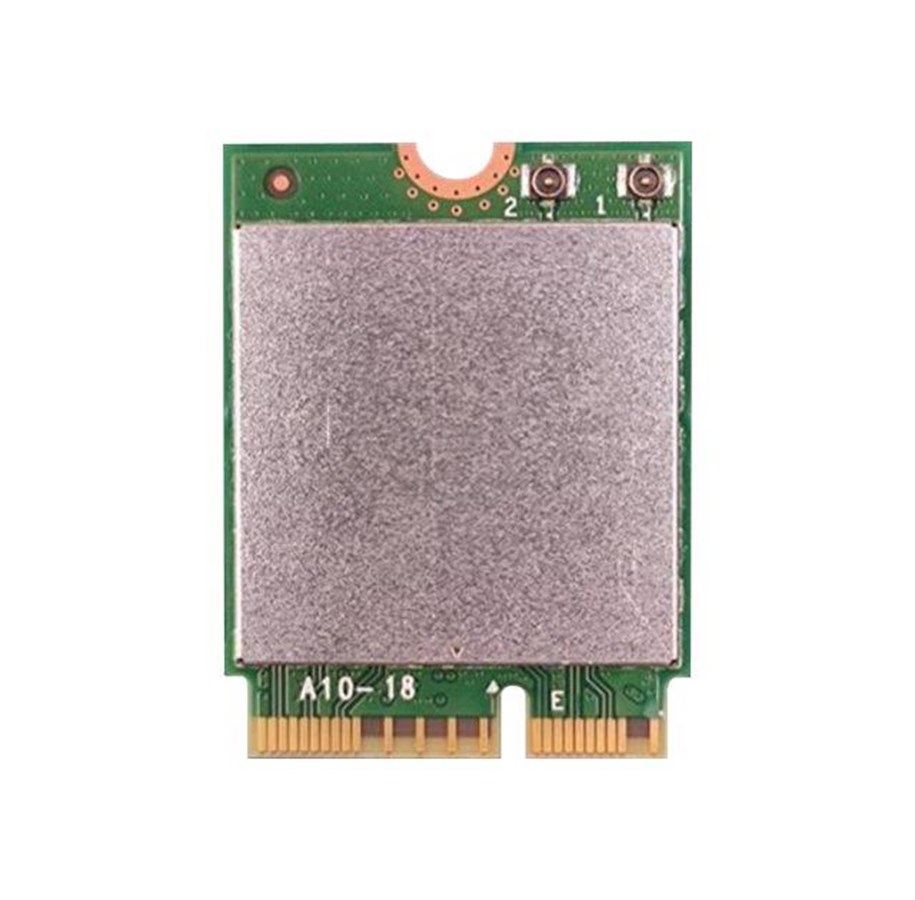

Intel AX211 Wi-Fi 6E + BT 5.3 / M.2 2230 / vPro
Netwerkadapter, M.2 2230 (CNVio2), 802.11ax, Bluetooth 5.2
Op voorraad
21,86 €
18,07 € excl. BTW
Goedkoopste privé verzending 4,99 €
5 stks
Op voorraad - 2-3 werkdagen levertijd
Intel Wi-Fi 6E (Gig+) Series products support dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands and include improved TCP throughput - exceeding 2 Gbps - and future Wi-Fi 6 R2 features that maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across new radio frequencies exclusive to Wi-Fi 6E devices.
Producent
Productnummer
2930214
Model
AX211.NGWG / 999M0W
EAN
0675901876773
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Intel Wi-Fi 6E AX211 - netwerkadapter - M.2 2230 (CNVio2)
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230 (CNVio2)
Afmetingen (BxDxH)
3 cm x 0.24 cm x 2.2 cm
Gewicht
2.83 g
Protocol voor gegevenskoppeling
Wi-Fi 5, 802.11ax, Bluetooth 5.2
Gegevensoverdrachtsnelheid
2.4 Gbps
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Conformiteitsnormen
Wi-Fi CERTIFIED 6E, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11az, Bluetooth 5.2, IEEE 802.1x
Systeemvereisten
Linux, Google Chrome OS, Windows 10, Windows 11
Algemeen
Type apparaat
Netwerkadapter
Model
Insteekkaart
Interface (Bus) Type
M.2 2230 (CNVio2)
Netwerkgebruik
Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Gegevensoverdrachtsnelheid
2.4 Gbps
Lijncoderingsindeling
OFDMA, 1024 QAM
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Voorzieningen
2x2 MU-MIMO-technologie, ondersteunt Intel vPro-technologie, ondersteunt 160 MHz-bandbreedte, ondersteuning WMM, Wi-Fi Direct, 802.1x authenticatie
Conformiteitsnormen
Wi-Fi CERTIFIED 6E, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11az, Bluetooth 5.2, IEEE 802.1x
Diversen
Encryptie-algoritme
WPA3, WPA2, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-SIM, EAP-AKA, 128-bit AES-CCMP, 256 bits-AES-GCMP, FIPS 140-2
Conformiteitsnormen
FISMA, UL, cUL, IEC 60950-1, CB
Software / Systeemvereisten
Benodigd besturingssysteem
Linux, Google Chrome OS, Windows 10, Windows 11
Afmetingen & gewicht
Breedte
3 cm
Diepte
0.24 cm
Hoogte
2.2 cm
Gewicht
2.83 g
Afmetingen & gewicht (transport)
Verzendhoogte
2.2 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
80 °C
Luchtvochtigheidsgraad bij gebruik
50 - 90% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
