Productnummer: 3139505

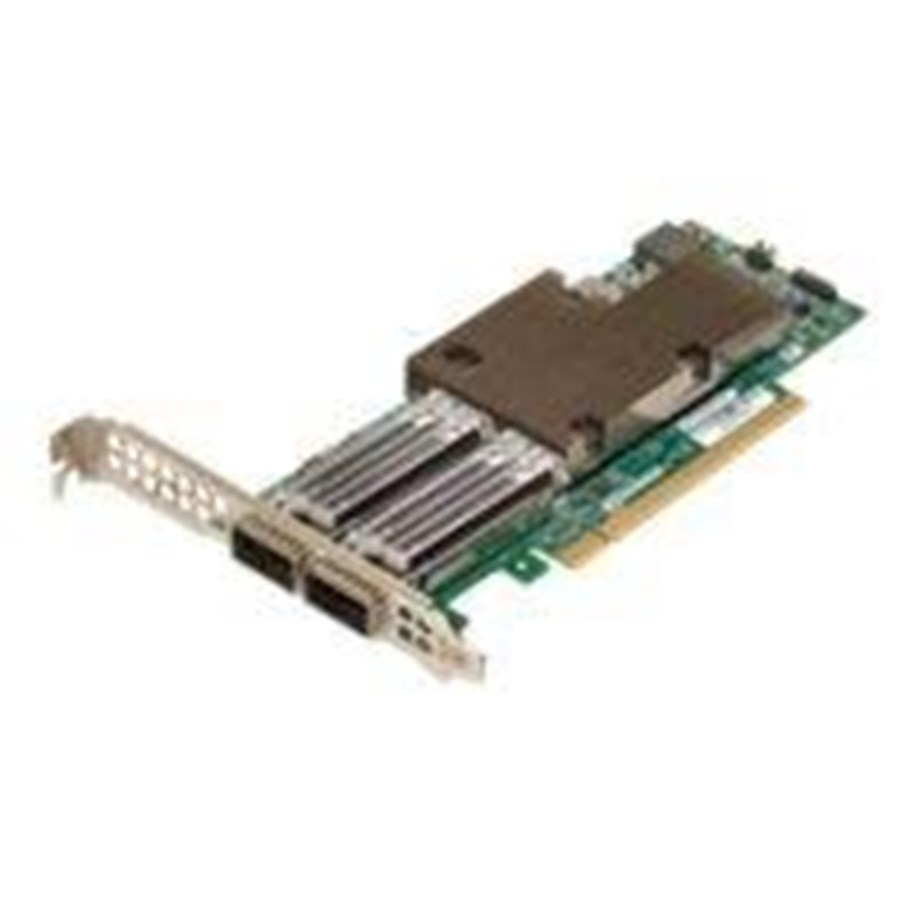

Foundry Networks Broadcom NetXtreme E-Series P2100G
Netwerkadapter, PCIe 4.0 x16 laag profiel, 100 Gigabit QSFP56 x 2
554,79 €
458,50 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme-E Series P2100G 2x100G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.The P2100G 2x100G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.Driven by the growing need for higher server bandwidth and storage capacity to support emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting networking technologies, such as server virtualization and NVMe-oF. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
Producent
Productnummer
3139505
Model
BCM957508-P2100G
EAN
0650861000291
Naar de website van de producent
Productbeschrijving
Broadcom NetXtreme E-Series P2100G - netwerkadapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 2
Type apparaat
Netwerkadapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express 4.0 x16
PCI specificatierevisie
PCIe 4.0
Poorten
100 Gigabit QSFP56 x 2
Gewicht
167 g
Protocol voor gegevenskoppeling
100GbE
Processor
Broadcom BCM57508
Algemeen
Type apparaat
Netwerkadapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express 4.0 x16
PCI specificatierevisie
PCIe 4.0
Netwerkgebruik
Poorten
100 Gigabit QSFP56 x 2
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
100 Gigabit Ethernet
Statuslampjes
Link/activiteit
Voorzieningen
Ondersteuning DCBX, PXE ondersteuning, LSO, LRO, RSS, UEFI-ondersteuning, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, ondersteuning Jumbo Frames (max. 9000 bytes), NPAR, Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, onderbroken afscheiden, ETS, QCN, Multi-Host-technologie, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, NetQueue
Processor / Geheugen
Processor
Broadcom BCM57508
Uitbreiding / Aansluiting
Interfaces
2 x 100Gb Ethernet - QSFP56
Diversen
Meegeleverde accessoires
Platte steun, standaard beugel
Conformiteitsnormen
MSA SFF-8402
Stroom
Energieverbruik tijdens gebruik
19.3 Watt
Afmetingen & gewicht
Gewicht
167 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
