Productnummer: 3349246

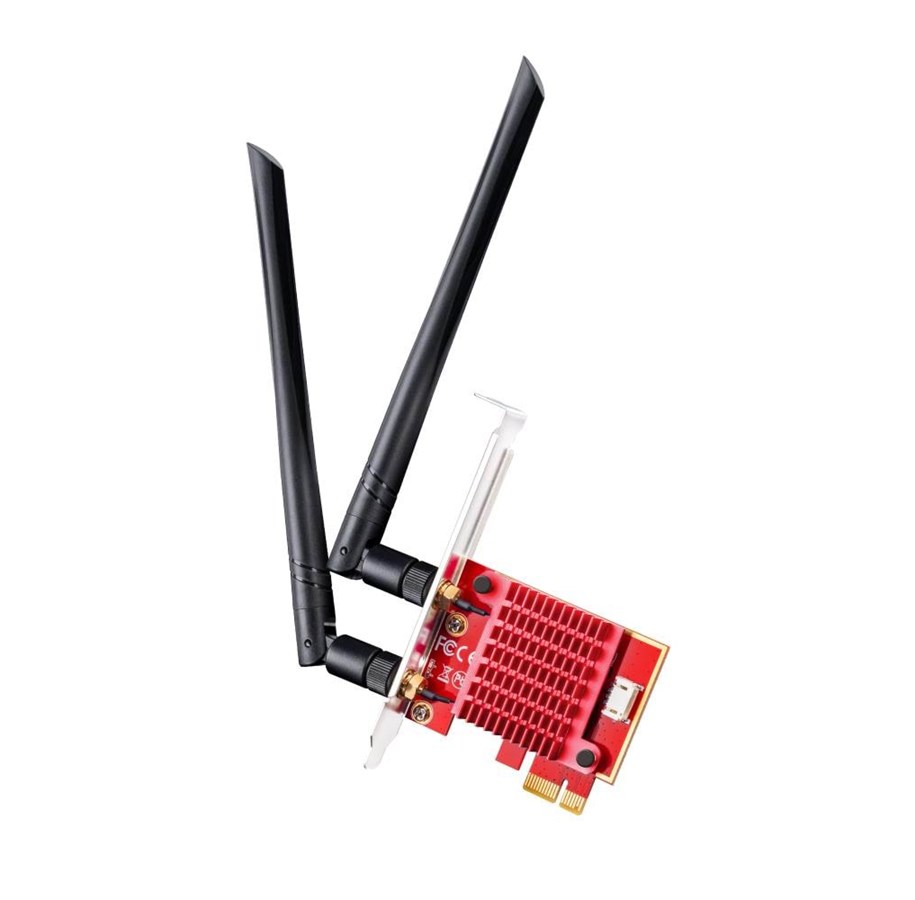

Cudy AX5400 Wi-Fi 6E Bluetooth 5.3 PCI-E Adapter

A Wi-Fi 6E and Bluetooth PCI-E adapter built on an AX210 Intel module with a heatsink. Install it to equip your Windows 10/11 PC with advanced wireless connectivity.

  • Tri-Band Wi-Fi 6E
  • 2.4 Gbps + 2.4 Gbps + 574 Mbps WiFi
  • Bluetooth 5.3
  • Intel AX210 Module
  • Works on Windows 10/11 64-Bit
  • Detachable Antennas on Magnetic Base
Op voorraad
33,81 € 27,94 € excl. BTW
Goedkoopste privé verzending 4,99 €
4 stks Op voorraad - 2-3 werkdagen levertijd

The Cudy WE3000S network adapter is designed to enhance wireless connectivity with its features. Equipped with two external detachable antennas providing a gain level of 5 dBi, this adapter ensures stable and robust signal reception. The device supports multiple Wi-Fi bands, including 2.4 GHz, 5 GHz, and 6 GHz, achieving a data transfer rate of up to 2.4 Gbps. It incorporates MU-MIMO and 2T2R MIMO technology for efficient data transmission to multiple devices simultaneously. The plug-in card form factor and compatibility with PCI Express x1 and USB 2.0 interfaces make it a versatile option for various setups.The Cudy WE3000S is built for reliable performance with a wide operating temperature range from 0°C to 70°C and humidity levels up to 90%. Security is a priority, featuring multiple encryption algorithms including WPA, WPA2, and WPA3. Additionally, it utilizes Bluetooth 5.3 technology for seamless connections. Designed with a built-in heatsink and a magnetic antenna base, this network adapter performs well while maintaining a low profile for aesthetic integration into your system.

Producent
Productnummer
3349246
Model
WE3000S
EAN
6971690791322
Naar de website van de producent
Productbeschrijving
Cudy WE3000S - netwerkadapter - PCI Express x1
Type apparaat
Netwerkadapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express x1
Afmetingen (BxDxH)
2 cm x 7 cm x 4.5 cm
Gewicht
116 g
Protocol voor gegevenskoppeling
Bluetooth 5.3, Wi-Fi 6E, Wi-Fi 5
Gegevensoverdrachtsnelheid
2.4 Gbps
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 574 Mbps
Maximale gegevenssnelheid (5 GHz): 2,4 Gbps
Maximale gegevenssnelheid (6 GHz): 2,4 Gbps
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Processor
Intel AX210
Conformiteitsnormen
IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Systeemvereisten
Microsoft Windows 11, Windows 10 (64-bit)

Algemeen

Type apparaat
Netwerkadapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express x1

Netwerkgebruik

Connectiviteit
Draadloos
Protocol voor gegevenskoppeling
Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wifi-classificatie
AX5400
Spread Sprectum-methode
OFDMA
Gegevensoverdrachtsnelheid
2.4 Gbps
Prestaties
Maximale gegevenssnelheid (2,4 GHz): 574 Mbps
Maximale gegevenssnelheid (5 GHz): 2,4 Gbps
Maximale gegevenssnelheid (6 GHz): 2,4 Gbps
Frequentieband
2.4 GHz, 5 GHz, 6 GHz
Voorzieningen
Ingebouwde warmteafvoer, magnetische antennebasis, Tri-Band, 2T2R MIMO-technologie, 2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz, MU-MIMO-technologie
Conformiteitsnormen
IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Antenne

Antenne
Kan extern worden losgemaakt
Hoeveelheid antennes
2
Toenameniveau
5 dBi

Processor / Geheugen

Processor
Intel AX210

Diversen

Kabels meegeleverd
1 x Bluetooth-kopkabel
Encryptie-algoritme
WPA, WPA2, WPA3

Software / Systeemvereisten

Benodigd besturingssysteem
Microsoft Windows 11, Windows 10 (64-bit)

Afmetingen & gewicht

Breedte
2 cm
Diepte
7 cm
Hoogte
4.5 cm
Gewicht
116 g

Afmetingen & gewicht (transport)

Verzendbreedte
4 cm
Verzenddiepte
23.2 cm
Verzendhoogte
13.6 cm
Verzendgewicht
261 g

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
70 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
