Productnummer: 3201914

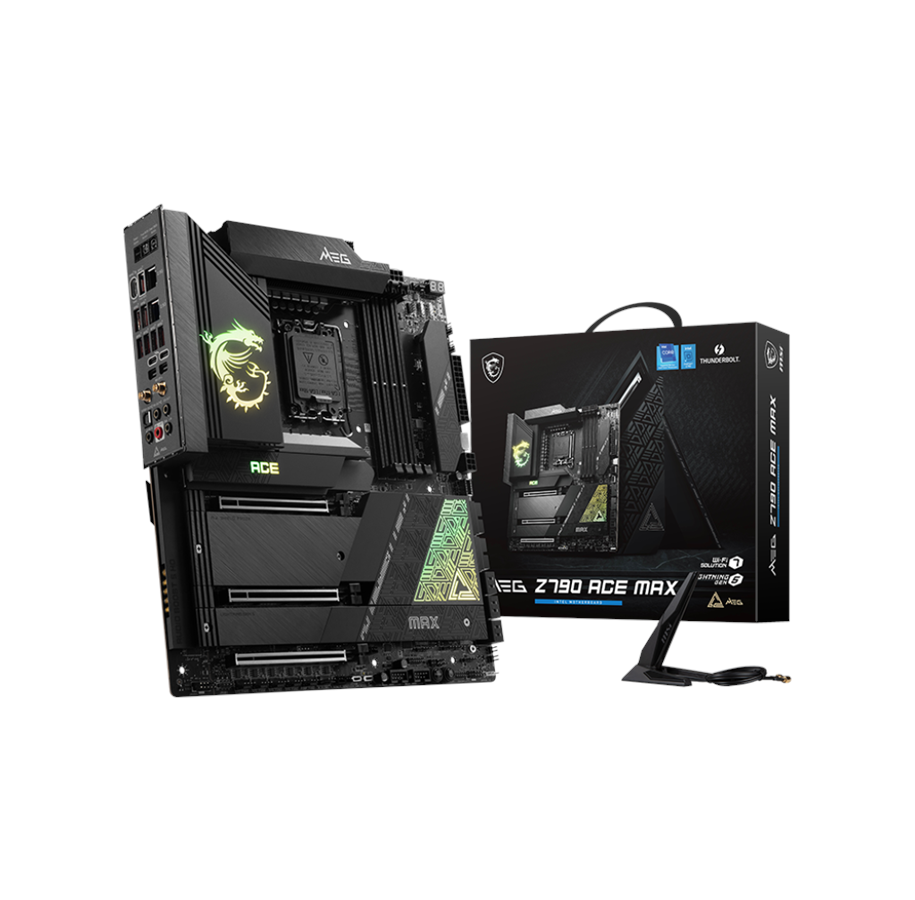

MSI MEG Z790 ACE MAX Moederbord - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - Extended ATX
Moederbord, maat: Extended ATX, Intel LGA1700 socket, Intel Z790 chipset, 2 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), opslagpoorten: 6 x SATA-600 / 4 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C (met ThunderBolt), monitor verbinding: 1 x Displayport 1.4 / 2 x ThunderBolt 4, Intel I225-V 2.5 Gigabit / Intel I225-V 2.5 Gigabit netwerk (LAN), Intel WiFi 7 & Bluetooth 5.4, Intel Xe Graphics ondersteund (CPU met VGA vereist), Realtek ALC4082 Codec + ESS ES9280AQ HD Audio (8-kanalen) geluidskaart, MSI Mystic Light software
Het product is niet meer leverbaar
Unleash the power of gaming with MEG Z790 ACE MAX. Boasting premium aesthetics featuring a sleek black finish and silver embellishments, this E-ATX gaming motherboard takes Intel®'s 14th Gen and 13th Gen Core processors to new heights. With exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Stacked Fin Array Design
Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.
Aluminum Cover
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
Aluminum Backplate
The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Stacked Fin Array Design
Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.
Aluminum Cover
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
Aluminum Backplate
The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
Producent
Productnummer
3201914
Model
MEG Z790 ACE MAX
EAN
4711377134620
Naar de website van de producent
Productbeschrijving
MSI MEG Z790 ACE MAX - moederbord - uitgebreide ATX - LGA1700-sokkel - Z790
Producttype
Moederbord - uitgebreide ATX
Chipsettype
Intel Z790 / Nuvoton NCT6687D-R
Processor Socket
1 x LGA1700-sokkel
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium Gold / Celeron)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 2 x SATA-600, 5 x M.2
USB- / FireWire-poorten
1 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Algemeen
Producttype
Moederbord - uitgebreide ATX
Chipsettype
Intel Z790 / Nuvoton NCT6687D-R
Processor Socket
LGA1700-sokkel
Max aantal processors
1
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium Gold / Celeron)
Ondersteund RAM
Maximale grootte
256 GB
Technologie
DDR5
Busklok
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC4082 / ESS ES9280AQ
Conformiteitsnormen
High Definition Audio
LAN
Netwerk interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Uitbreiding / Aansluiting
Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (x8-modus)
1 x PCIe 4.0 x16 (x4-modus)
2 x M.2 socket (2260/2280/22110 M.2-sleutel met M-sleuf)
2 x M.2 socket (2260/2280 M.2-sleutel met M-sleuf)
1 x M.2 socket (2280 M.2-sleutel met M-sleuf)
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (x8-modus)
1 x PCIe 4.0 x16 (x4-modus)
2 x M.2 socket (2260/2280/22110 M.2-sleutel met M-sleuf)
2 x M.2 socket (2260/2280 M.2-sleutel met M-sleuf)
1 x M.2 socket (2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -aansluitingen: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -aansluitingen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -aansluitingen: 2 x 7-pins seriële ATA
PCIe 4.0 -aansluitingen: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -aansluitingen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -aansluitingen: 2 x 7-pins seriële ATA
Interfaces
2 x Mini DisplayPort
7 x USB 3.2 Gen 1
2 x LAN (2.5Gigabit Ethernet)
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
1 x audiolijnuitgang (midden/subwoofer) - ministekker
1 x audiolijnuitgang (achter) - ministekker
1 x audiolijnuitgang (zijkant surround) - ministekker
2 x antenne
1 x USB-C 3.2 Gen 2
2 x Thunderbolt 4
1 x SPDIF-uitgang
7 x USB 3.2 Gen 1
2 x LAN (2.5Gigabit Ethernet)
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
1 x audiolijnuitgang (midden/subwoofer) - ministekker
1 x audiolijnuitgang (achter) - ministekker
1 x audiolijnuitgang (zijkant surround) - ministekker
2 x antenne
1 x USB-C 3.2 Gen 2
2 x Thunderbolt 4
1 x SPDIF-uitgang
Interne interfaces
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
2 x USB-C 3.2 Gen 2x2 - header
1 x audio - header
1 x SPI - header
4 x USB 3.2 Gen 1 - header
2 x USB-C 3.2 Gen 2x2 - header
1 x audio - header
1 x SPI - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector, 6 pins-PD-voedingsaansluiting
Functies
BIOS-functies
UEFI BIOS, Dual BIOS, MSI ClickBIOS 5, ACPI 6,4 ondersteuning, SMBIOS 3,5 ondersteuning
Hardwarefuncties
8 Layer PCB, knop voor leegmaken van CMOS, RVS aansluitingen achterzijde, MSI Mystic Light, MSI Steel Armor, OC Engine, 2oz Copper PCB, Water Pump Header, vooraf gemonteerde I/O-afscherming, MSI PCIe Steel Slot, Fins-Array Heatsink, DIY Friendly Design, Smart Button, dubbelzijdig M.2-scherm FROZR, MSI Audio Boost 5 HD, ondersteunt NVIDIA Resizable BAR, Surface Mount Technology (SMT), knop 'veilig starten', 24+1+2 Phase Power Design, aluminium achterplaat, 2-cijferige code foutopsporing led, flash-BIOS-knop, Direct Touch Cross Heat-pipe, aluminium afdekking, schakelaar trage modus, Frozr AI Cooling, M.2 EZ-vergrendeling, PCH-warmteafvoer, EZ Debug LED
Diversen
Meegeleverde accessoires
2 x M.2 schroeven, 2 thermistorkabels, 1 naar 2 RGB led-Y-verlengkabel, Rainbow RGB led-verlengkabel, USB-station, wifi-antenne, EZ-voorpaneelkabel, kabelsticker, 2 x kabels DisplayPort naar mini-DisplayPort, 2 x EZ M.2-klemmen, 5 x afstandhouder voor M.2-sokkel
Kabels meegeleverd
4 x Seriële ATA-kabel
2 x Mini DisplayPort-DisplayPort kabel
1 x Y-verlengkabel voor ventilator/ARGB
2 x Mini DisplayPort-DisplayPort kabel
1 x Y-verlengkabel voor ventilator/ARGB
Software meegeleverd
Adobe Acrobat Reader, Intel Extreme Tuning Utility, MSI CPU-Z, MSI Center, Adobe Creative Cloud (gratis op proef), AIDA64 Extreme - MSI Edition, MSI-app-speler, Norton 360, 7-ZIP
Breedte
30.5 cm
Diepte
27.7 cm
