Productnummer: 3365448

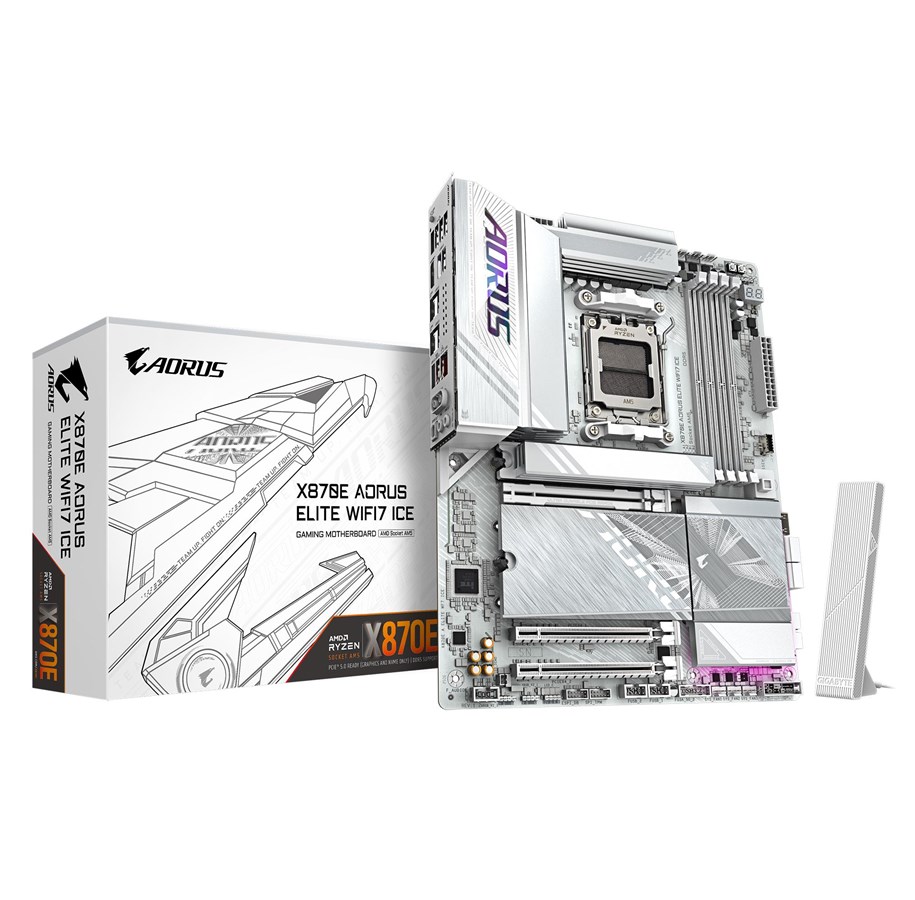

GIGABYTE X870E AORUS ELITE WIFI7 ICE Moederbord - AMD X870E - AMD AM5 - DDR5 RAM - ATX

Moederbord, maat: ATX, AMD AM5 socket, AMD X870E chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-6400 4 x DIMM slots (AMD EXPO support), opslagpoorten: 2 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 / 3 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 4.0 type A & C, monitor verbinding: 2 x Displayport 1.4 (via USB-C) / 1 x HDMI 2.1, Realtek 2.5 Gigabit netwerk (LAN), Realtek RTL8922AE WiFi 7 & Bluetooth 5.4, AMD Graphics ondersteund (CPU met VGA vereist), Realtek ALC1220 HD Audio (8-kanalen) geluidskaart, Gigabyte Fusion RGB 2.0 software

329,80 € 272,56 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd (verwacht in eigen magazijn 20-10-2026)

The GIGABYTE AORUS X870E ELITE WIFI7 ICE motherboard is engineered for performance and versatility, catering to the needs of gaming and content creation. Featuring support for Ryzen processors and multiple RAM speeds up to 4100 MHz (O.C.), this motherboard enhances system responsiveness and application performance. With robust audio output utilizing Realtek ALC1220 and high definition audio capabilities, users can enjoy immersive sound experiences. Connectivity is a strong focus, with numerous USB ports including USB4 and USB 3.2 Gen 2 for high-speed data transfer. The motherboard supports M.2 and SATA connections, allowing for extensive storage configurations tailored to individual needs. Additionally, advanced features such as RGB FUSION and GIGABYTE Smart Fan 6 ensure both aesthetics and efficient thermal management, making it an ideal choice for those looking to build or upgrade their systems.

RAM

CPU

Producent
Productnummer
3365448
Model
X870E A ELITE WF7 ICE
EAN
4719331871529
Naar de website van de producent
Productbeschrijving
AORUS X870E ELITE WIFI7 ICE - moederbord - ATX - Socket AM5 - AMD X870E
Producttype
Moederbord - ATX
Chipsettype
AMD X870E
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 4 x M.2
USB- / FireWire-poorten
2 x USB4 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD X870E
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
4100 Mhz (O.C), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz
Ondersteunde RAM-integriteitscontrole
Niet-ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
AMD EXPO-technologie, dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC1220
Conformiteitsnormen
High Definition Audio

LAN

Netwerk Controller
Realtek RTL8922AE
Netwerk interfaces
2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x4
1 x M.2 socket (2280/2580/22110/25110 M.2-sleutel met M-sleuf)
3 x M.2 socket (22110/2280)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -aansluitingen: 3 x M.2
PCIe 4.0 -aansluitingen: 1 x M.2
Interfaces
1 x LAN (2.5Gigabit Ethernet)
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x SPDIF-uitgang
2 x antenne
1 x HDMI
2 x USB4
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
4 x USB 2.0
Interne interfaces
1 x USB-C 3.2 Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x SPI - header
1 x HDMI - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector

Functies

BIOS-type
AMI
BIOS-functies
WfM 2.0 ondersteuning, UEFI BIOS, SMBIOS 2.7-ondersteuning, DMI 2.7 ondersteuning, ACPI 5.0 ondersteuning, PnP 1.0a-ondersteuning
Hardwarecontrole
Systeemvoltage, temperatuurdetectie, detectie snelheid ventilator, stroomsnelheid waterkoeling, waarschuwing ventilatorstoring, ventilatorregelaar
Hardwarefuncties
16+2+2 Phase Power Design, Q-Flash Plus-knop, WIFI EZ Plug, M.2 EZ Latch plus, M.2 EZ Latch klik, M.2 Thermal Guard L, PCIe EZ Latch Plus, Ultra Durable PCIe Armor, VRM Thermal Armor Advanced, 2x Copper PCB, 6 Layer PCB, DIY Friendly Design, EZ Debug LED, GIGABYTE Smart Fan 6, M.2 Thermal Guard Ext., RGB FUSION, VRM Thermal Armor Fins-Array, RGB FUSION 2.0, EZ Plug, vooraf gemonteerde I/O-afscherming

Diversen

Meegeleverde accessoires
Wifi-antenne, G-Connector, thermisch kussentje voor M.2-SSD, 3 x thermische pads voor M.2 SSD dik/dun
Kabels meegeleverd
2 x SATA Express-kabel
Software meegeleverd
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Breedte
30.5 cm
Diepte
24.4 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
