Productnummer: 3295145

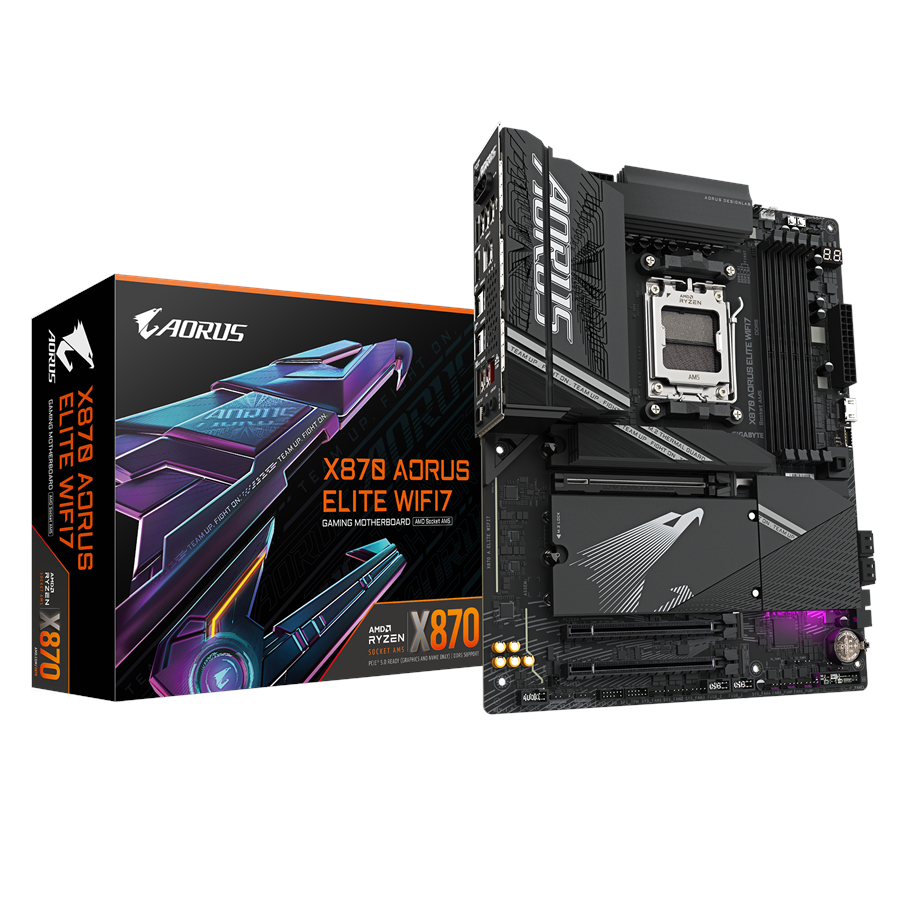

GIGABYTE X870 AORUS ELITE WIFI7 Moederbord - AMD X870 - AMD AM5 socket - DDR5 RAM - ATX

Moederbord, maat: ATX, AMD AM5 socket, AMD X870 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-6400 4 x DIMM slots (AMD EXPO support), opslagpoorten: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 / 3 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 4.0 type A & C, monitor verbinding: 2 x Displayport 1.4 (via USB-C) / 1 x HDMI 2.1, Realtek 2.5 Gigabit netwerk (LAN), WiFi 7 & Bluetooth 5.4, AMD Graphics ondersteund (CPU met VGA vereist), Realtek ALC1220 HD Audio (8-kanalen) geluidskaart, Gigabyte Fusion RGB 2.0 software

282,41 € 233,40 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Gratis verzending DPD Pickup (privé)
Extern magazijn, 4 - 5 werkdagen levertijd

Experience advanced performance with the GIGABYTE AORUS X870 ELITE WIFI7 motherboard, designed to support Ryzen 7000/8000/9000 Series processors. This ATX motherboard features a robust AMD X870 chipset, accommodating up to 4 DIMM slots for DDR5 SDRAM, allowing for efficient dual-channel memory architecture. Dive into high-fidelity sound with high definition audio support, facilitated by the Realtek ALC1220 codec, delivering 8-channel audio output. With configurable RAID options and multiple M.2 sockets, this motherboard ensures rapid storage solutions for demanding applications.

Connectivity is made simple with a myriad of USB ports including USB4 and USB 3.2 Gen 2, alongside high-speed 2.5 Gigabit Ethernet and wireless technology via Wi-Fi 6E and Bluetooth 5.4. This motherboard is equipped with hardware features for effective thermal management and overclocking possibilities. Elegantly designed with RGB FUSION 2.0, the AORUS X870 ELITE WIFI7 enhances the performance of your system while delivering a visually appealing setup.

CPU

RAM

Producent
Productnummer
3295145
Model
X870 A ELITE WIFI7
EAN
4719331864811
Naar de website van de producent
Productbeschrijving
AORUS X870 ELITE WIFI7 - moederbord - ATX - Socket AM5 - AMD X870
Producttype
Moederbord - ATX
Chipsettype
AMD X870
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 4 x M.2
USB- / FireWire-poorten
2 x USB4 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD X870
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP), AMD EXPO-technologie

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC1220
Conformiteitsnormen
High Definition Audio

LAN

Netwerk interfaces
2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 3.0 x16 (x2-modus)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -aansluitingen: 3 x M.2
PCIe 4.0 -aansluitingen: 1 x M.2
Interfaces
LAN (2.5Gigabit Ethernet)
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x SPDIF-uitgang
2 x antenne
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
2 x USB4
1 x HDMI
4 x USB 2.0
Interne interfaces
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x audio - header
1 x SPI - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector

Functies

BIOS-type
AMI
BIOS-functies
WfM 2.0 ondersteuning, UEFI BIOS, SMBIOS 2.7-ondersteuning, DMI 2.7 ondersteuning, ACPI 5.0 ondersteuning, PnP 1.0a-ondersteuning
Hardwarecontrole
Systeemvoltage, temperatuurdetectie, detectie snelheid ventilator, stroomsnelheid waterkoeling, waarschuwing ventilatorstoring, ventilatorregelaar, geluidsdetectie
Hardwarefuncties
16+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, VRM Thermal Armor Advanced, vooraf gemonteerde I/O-afscherming, M.2 Thermal Guard L, M.2 Thermal Guard Ext., RGB FUSION 2.0, EZ Plug, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch klik, PCIe EZ Latch Plus

Diversen

Software meegeleverd
GIGABYTE Control Center, Norton Internet Security (OEM Version)
Conformiteitsnormen
HDCP 2.3
Breedte
30.5 cm
Diepte
24.4 cm
Informatie verpakking
Doos

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
