Productnummer: 3350384

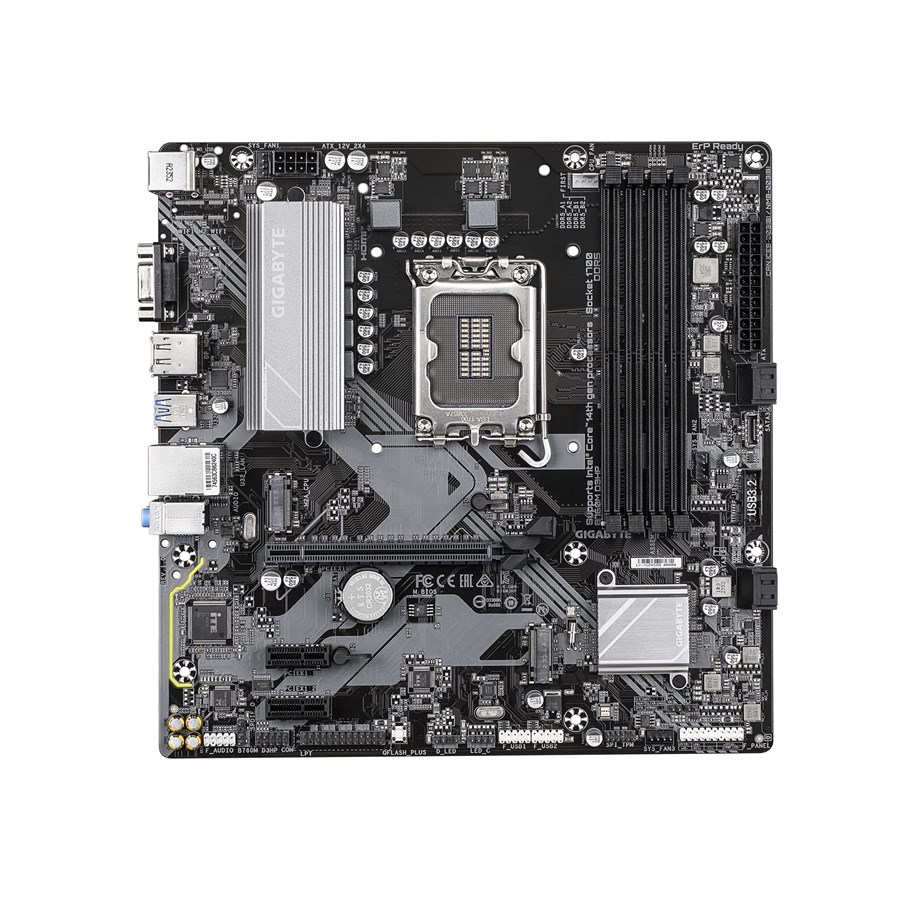

GIGABYTE B760M D3HP - motherboard - micr Moederbord - Intel B760 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX
Moederbord, micro ATX, LGA1700-sokkel, B760 chipset, USB-C 3.2 Gen 1, USB 3.2 Gen 1, Gigabit LAN, interne afbeeldingen (CPU vereist), HD Audio (8-kanaals)
99,58 €
82,30 € excl. BTW
Deze bundel bevat
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The GIGABYTE B760M D3HP motherboard is designed to provide a reliable foundation for building a high-performance computing system. Featuring an Intel B760 Express chipset and support for the new generation of Intel Core processors, this micro ATX motherboard ensures compatibility with both 12th and 13th Generation CPUs. With 4 DIMM slots supporting DDR5 SDRAM and speeds up to 2800 MHz, memory expansion is seamless and efficient for enhanced multitasking capabilities. The motherboard excels in connectivity options with multiple USB ports, including USB 3.2 Gen 1 and USB-C 3.2 Gen 1, alongside traditional PS/2 ports and high-definition audio outputs. Equipped with advanced hardware monitoring features, including temperature detection and fan speed management, it offers an easy way to maintain optimal performance during heavy workloads. The durable design ensures maximum reliability, while the innovative RGB FUSION adds aesthetic appeal, making the GIGABYTE B760M D3HP a choice for gamers and professionals alike.
Producent
Productnummer
3350384
Model
B760M D3HP
EAN
4719331864347
Naar de website van de producent
Productbeschrijving
Gigabyte B760M D3HP - moederbord - micro ATX - LGA1700-sokkel - B760
Producttype
Moederbord - micro ATX
Chipsettype
Intel B760 Express
Processor Socket
1 x LGA1700-sokkel
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium Gold / Celeron)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, ECC (werkt in non-ECC-modus), niet-ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 2 x M.2
USB- / FireWire-poorten
3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
Gigabit Ethernet
Algemeen
Producttype
Moederbord - micro ATX
Chipsettype
Intel B760 Express
Processor Socket
LGA1700-sokkel
Max aantal processors
1
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium Gold / Celeron)
Ondersteund RAM
Maximale grootte
256 GB
Technologie
DDR5
Busklok
2800 MHz, 2600 MHz, 2400 MHz, 2200 MHz
Ondersteunde RAM-integriteitscontrole
ECC (werkt in non-ECC-modus), niet-ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP), ondersteunde ECC-modules werken in niet-ECC-modus
Audio
Type
HD Audio (8-kanaals)
Conformiteitsnormen
High Definition Audio
LAN
Netwerk interfaces
Gigabit Ethernet
Uitbreiding / Aansluiting
Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
2 x M.2 socket (2280 M.2-sleutel met M-sleuf)
4 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
2 x M.2 socket (2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -aansluitingen: 2 x M.2
PCIe 4.0 -aansluitingen: 2 x M.2
Interfaces
1 x DisplayPort
1 x HDMI
1 x VGA
2 x USB 2.0
3 x USB 3.2 Gen 1
1 x LAN (Gigabit Ethernet)
1 x PS/2 toetsenbord / muis
1 x microfoon - ministekker
1 x audiolijnuitgang - ministekker
1 x audiolijningang - ministekker
1 x HDMI
1 x VGA
2 x USB 2.0
3 x USB 3.2 Gen 1
1 x LAN (Gigabit Ethernet)
1 x PS/2 toetsenbord / muis
1 x microfoon - ministekker
1 x audiolijnuitgang - ministekker
1 x audiolijningang - ministekker
Interne interfaces
4 x USB 2.0 - header
1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x parallel - header
1 x serieel - header
1 x SPI - header
1 x SPDIF-uitgang - header
1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x parallel - header
1 x serieel - header
1 x SPI - header
1 x SPDIF-uitgang - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector
Functies
BIOS-type
AMI
BIOS-functies
PnP 1.0a-ondersteuning, DMI 2.7 ondersteuning, WfM 2.0 ondersteuning, SMBIOS 2.7-ondersteuning, ACPI 5.0 ondersteuning, UEFI BIOS
Hardwarecontrole
Waarschuwing ventilatorstoring, ventilatorregelaar, stroomsnelheid waterkoeling, systeemvoltage, temperatuurdetectie, detectie snelheid ventilator
Hardwarefuncties
4+1+1 Phase Power Design, Ultra Durable, GIGABYTE Smart Fan 6, DIY Friendly Design, Solid Pin Power Connectors, Q-Flash Plus, Q-Flash, Audio Noise Guard, hoogwaardige condensators voor audio, RGB FUSION, PCIe EZ Latch
Diversen
Software meegeleverd
Norton Internet Security (OEM Version), LAN-beheerder, GIGABYTE Control Center
Breedte
24.4 cm
Diepte
24.4 cm
