Productnummer: 3350404

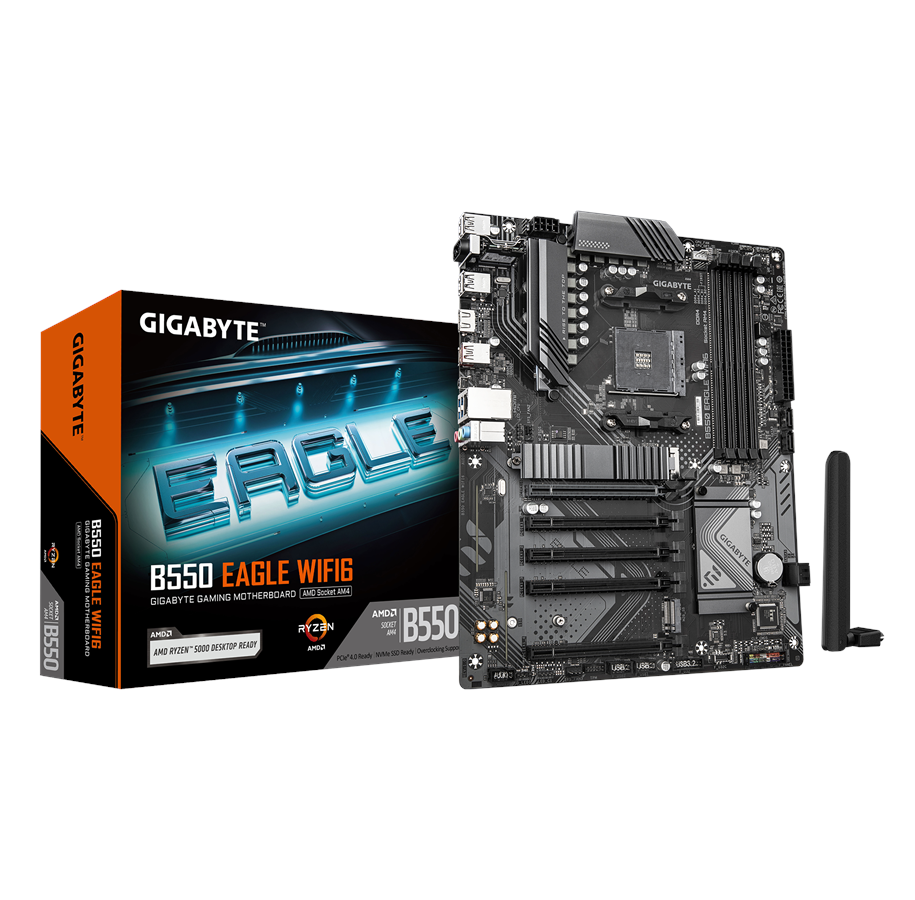

GIGABYTE B550 EAGLE WIFI6 Moederbord - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX

Moederbord, maat: ATX, AMD AM4 socket, AMD B550 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 4 x DIMM slots, opslagpoorten: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 1 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, monitor verbinding: 1 x HDMI 2.1, Realtek 1 Gigabit netwerk (LAN), Realtek RTL8851BE WiFi 6 & Bluetooth 5.3, AMD Vega Graphics ondersteund (CPU met VGA vereist), Realtek HD Audio (8-kanalen) geluidskaart, Gigabyte Fusion RGB 2.0 software

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
4 stks Op voorraad - 2-3 werkdagen levertijd

The GIGABYTE B550 EAGLE WIFI6 motherboard is designed to enhance your computing experience with its robust performance and advanced networking capabilities. Supporting AMD Ryzen processors, this motherboard utilizes the AMD B550 chipset and features an ATX form factor, making it a choice for custom builds. The motherboard includes four DIMM slots for DDR4 SDRAM, allowing for dual-channel memory architecture and speeds of up to 1600 MHz. With built-in support for both ECC and non-ECC memory modules, this motherboard meets a variety of needs.Connectivity options are abundant with multiple USB ports, including USB 3.2 Gen 2 and USB-C, ensuring fast data transfer rates. The inclusion of several audio output options with high definition audio support enables an immersive sound experience. Additionally, the integration of Wi-Fi 6 and Bluetooth 5.3 ensures high-speed wireless connections for gaming and streaming. Enhanced hardware features such as RGB FUSION and GIGABYTE Smart Fan 6 allow for customizable aesthetics and improved cooling performance. This motherboard is engineered with a DIY-friendly design, ensuring ease of assembly and maintenance.

RAM

Producent
Productnummer
3350404
Model
B550 EAGLE WIFI6
EAN
4719331868406
Naar de website van de producent
Productbeschrijving
Gigabyte B550 EAGLE WIFI6 - moederbord - ATX - Socket AM4 - AMD B550
Producttype
Moederbord - ATX
Chipsettype
AMD B550
Processor Socket
1 x Socket AM4
Compatibele processoren
Ryzen (ondersteunt Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max RAM-grootte
128 GB
Ondersteund RAM
4 DIMM-sleuven - DDR4, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 2 x M.2
USB- / FireWire-poorten
1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD B550
Processor Socket
Socket AM4
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)

Ondersteund RAM

Maximale grootte
128 GB
Technologie
DDR4
Busklok
1600 MHz, 1467 MHz, 1333 MHz, 1200 MHz, 1067 MHz
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaals)
Conformiteitsnormen
High Definition Audio

LAN

Netwerk Controller
Realtek RTL8851BE
Netwerk interfaces
Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
4 x PCIe 4.0 x1
2 x M.2 socket (22110/2280)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -aansluitingen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 3.0 -aansluitingen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
2 x antenne
1 x HDMI
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
4 x USB 2.0
1 x USB-C 3.2 Gen 1
LAN (Gigabit Ethernet)
Interne interfaces
1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x SPI - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS, PnP 1.0a-ondersteuning, DMI 2.7 ondersteuning, WfM 2.0 ondersteuning, SMBIOS 2.7-ondersteuning, ACPI 5.0 ondersteuning
Hardwarecontrole
Waarschuwing ventilatorstoring, ventilatorregelaar, systeemvoltage, temperatuurdetectie, stroomsnelheid waterkoeling, detectie snelheid ventilator
Hardwarefuncties
10+3+1 Phase Power Design, 4-laags PCB, Server-Grade Mid-Loss PCB, EZ Plug, M.2 EZ-vergrendeling, GIGABYTE Smart Fan 6, RGB FUSION, DIY Friendly Design

Diversen

Meegeleverde accessoires
M.2-schroevenset, rubberen kussentje, wifi-antenne, IO-scherm
Kabels meegeleverd
2 x SATA Express-kabel
Software meegeleverd
GIGABYTE Control Center, Norton Internet Security (OEM Version), LAN-beheerder
Breedte
30.5 cm
Diepte
24.4 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
