Productnummer: 3366036

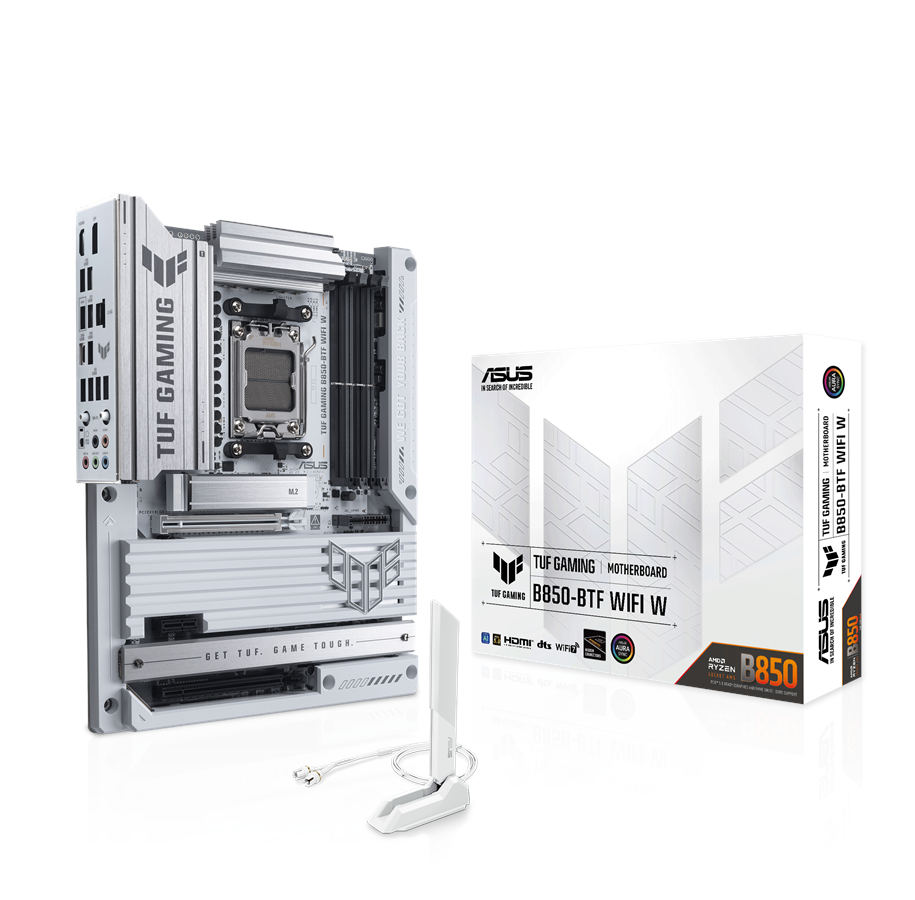

ASUS TUF GAMING B850-BTF WIFI WHITE Moederbord - AMD B850 - AMD AM5 socket - DDR5 RAM - ATX (BTF Standard)

Moederbord, maat: ATX (BTF standard), AMD AM5 socket, AMD B850 chipset, gesoldeerd onboard Connectors on the back on the motherboard for cleaner cable routing, requires special cases. See accessory for which cases are compatible with this motherboard, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), opslagpoorten: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, monitor verbinding: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 2.5 Gigabit netwerk (LAN), WiFi 7 & Bluetooth 5.4, AMD Graphics ondersteund (CPU met VGA vereist), Realtek ALC1220P HD Audio (8-kanalen) geluidskaart, ASUS AURA Sync software

Op voorraad
238,68 € 197,26 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

The ASUS TUF GAMING B850-BTF WIFI W motherboard is designed to enhance gaming and computing performance with its robust features. Engineered for AMD Ryzen processors, this ATX form factor board supports DDR5 SDRAM and features multiple expansion slots, allowing for a powerful setup with ease of connectivity. Equipped with high definition audio delivered via the Realtek ALC1220P codec, gamers can enjoy immersive sound quality while tackling intense challenges.

With support for a variety of storage options, including M.2 and RAID configurations, the TUF GAMING B850-BTF provides the flexibility needed to handle large files and demanding applications. Connectivity options include USB4, HDMI, and 2.5 Gigabit Ethernet, ensuring that users stay connected and can leverage fast data transfer speeds. Built with durability in mind, this motherboard features ASUS protection technologies that enhance reliability and performance, making it suitable for both gaming enthusiasts and professional users alike.

CPU

RAM

Producent
Productnummer
3366036
Model
90MB1KW0-M0EAY0
EAN
4711387941874
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
ASUS TUF GAMING B850-BTF WIFI W - moederbord - ATX - Socket AM5 - AMD B850
Producttype
Moederbord - ATX
Chipsettype
AMD B850
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, on-die ECC, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 3 x M.2
USB- / FireWire-poorten
1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD B850
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
4000 MHz (O.C.)
Ondersteunde RAM-integriteitscontrole
On-die ECC, niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, AMD EXPO-technologie

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC1220P
Conformiteitsnormen
High Definition Audio

LAN

Netwerk interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 4.0 x1
2 x M.2 socket (2280 M.2-sleutel met M-sleuf)
1 x M.2 socket (2242/2260/2280/22110 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -aansluitingen: 1 x M.2
PCIe 4.0 -aansluitingen: 2 x M.2
RAID-functies
AMD RAID Xpert2-technologie
Interfaces
1 x LAN (2.5Gigabit Ethernet)
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen2x2
3 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
2 x antenne
1 x audiolijnuitgang - ministekker
1 x audiolijningang - ministekker
1 x audiolijnuitgang (achter) - ministekker
1 x audiolijnuitgang (midden/subwoofer) - ministekker
1 x microfoon - ministekker
Interne interfaces
1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x serieel - header
1 x Thunderbolt 4 - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-modus
Slapen/ontwaken
Activering op LAN (wake on LAN = WOL), wake on PME
Hardwarefuncties
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, TUF LANGuard, BIOS FlashBack-knop, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS-overspanningsbescherming, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack-led, ESD Guards, M.2-warmteafvoer, M.2 Q-Latch, PCIe Slot Q-Release, vooraf gemonteerde I/O-afscherming, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM-warmteafvoer, 14+2+1 Phase Power Design, DIY Friendly Design, 8 Layer PCB, 5K zwart-metallieke TUF-condensators, chipset warmteafvoer, vergrote M.2 koellichaam, Preboot eXecution Environment (PXE)

Diversen

Meegeleverde accessoires
Rubberen verpakking 2 x M.2, TUF GAMING-sticker, ASUS Wi-Fi Q-antenna
Kabels meegeleverd
2 x Seriële ATA-kabel
Software meegeleverd
Armoury Crate, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 op proef), WinRAR (40 days trial)
Breedte
30.5 cm
Diepte
24.4 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
