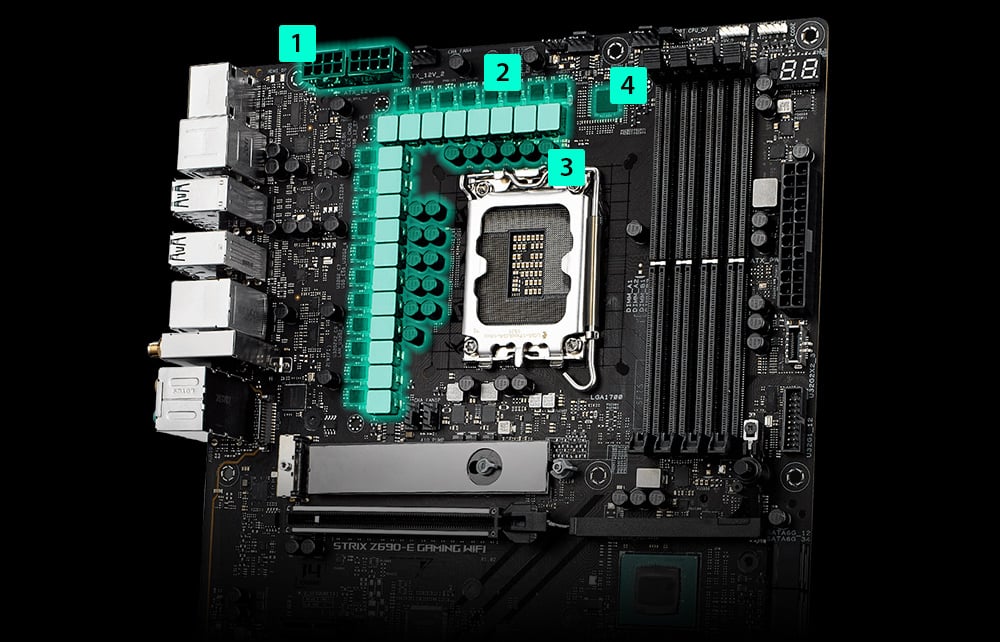

Power Design

Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

• 8+8 ProCool II Power Connector

  ASUS ProCool II connectors are built to tight specifications to ensure full contact with power supply cable wiring. A metal sheath improves heat dissipation, and low electrical impedance helps prevent hotspots and bolsters reliability.

• TEAMED POWER STAGES

  18+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of.

• ALLOY CHOKES AND DURABLE CAPACITORS

  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

• DIGI+ POWER CONTROL

  The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultrasmooth and clean power delivery to the CPU.

Cooling Innovation

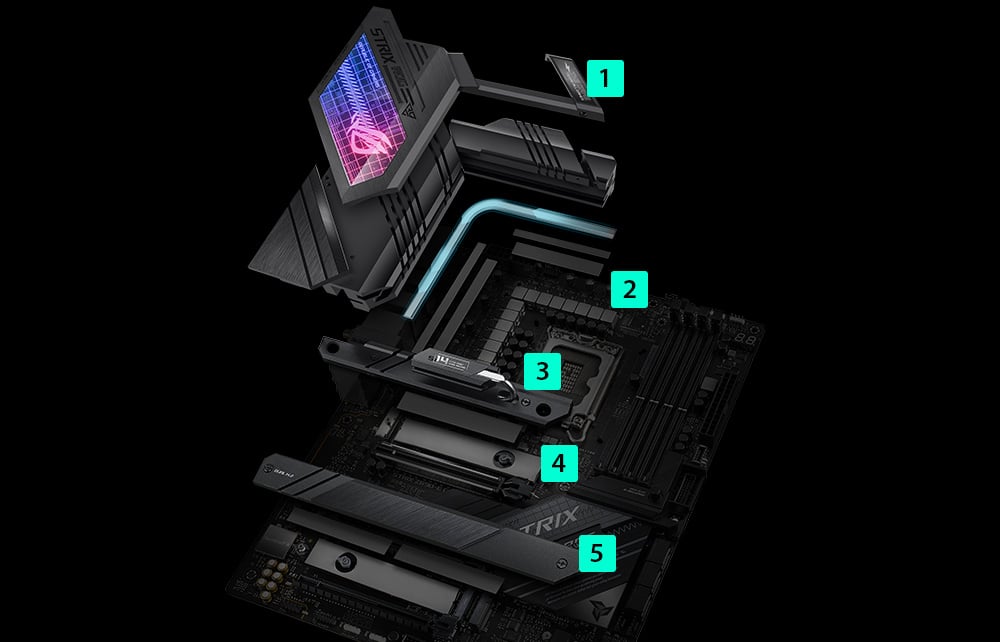

• Integrated I/O Cover & VRM Heatsinks

  Two thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.

• Thermal Pads

  High-grade thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.

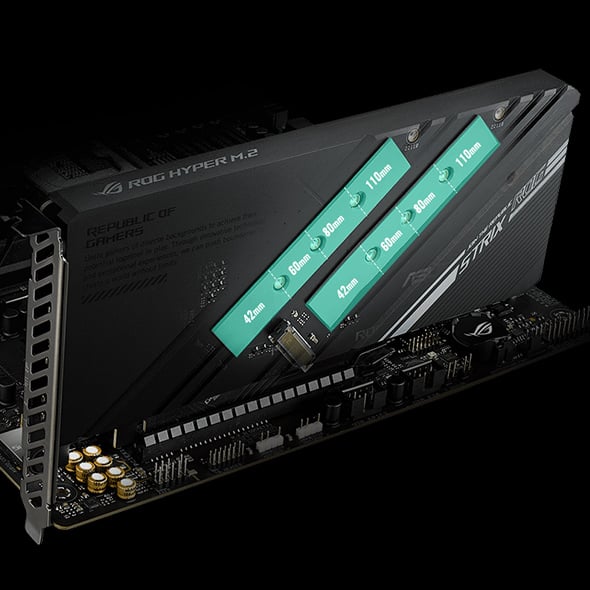

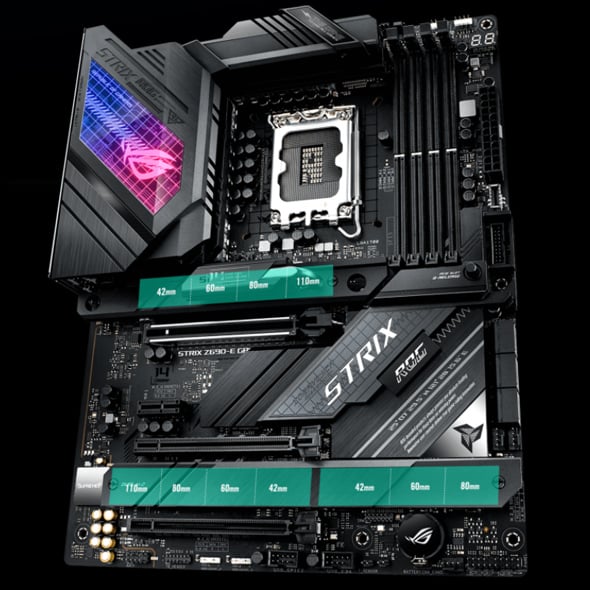

• M.2 Combo-Sink

  An M.2 heatsink with a direct-contact heat pipe delivers ample surface area, enabling optimal running temperatures for PCIe 5.0 M.2 NVMe drives, even when airflow is restricted.

• M.2 Backplates

  The integrated M.2 backplates help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

• M.2 Heatsinks

  The M.2 heatsinks keep the M.2 SSDs at optimum operating temperature for consistent performance and reliability.

Cooler by Design

ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

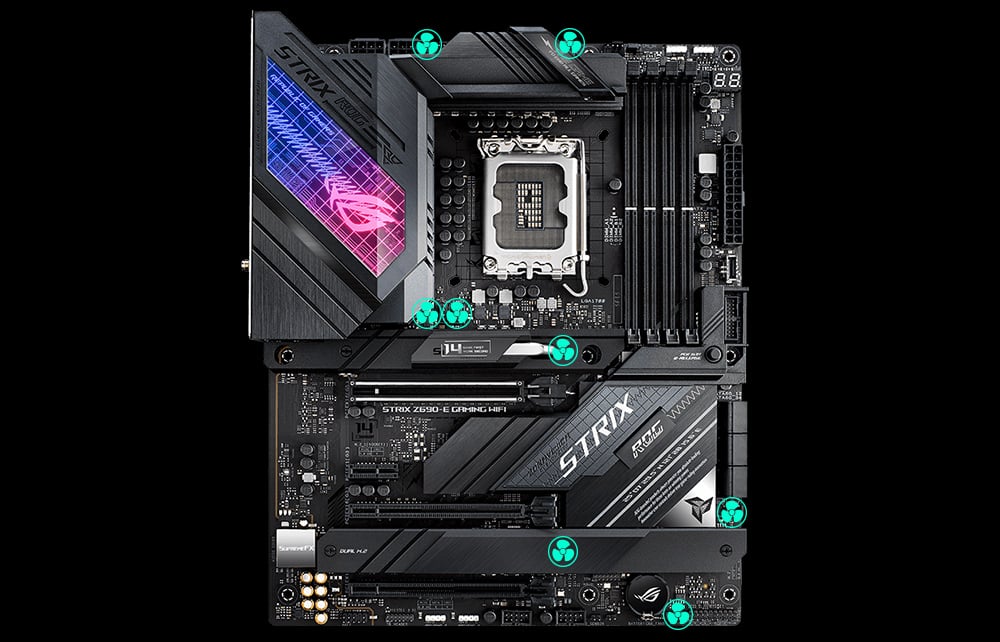

• CPU Fan Header

  A dedicated pair of PWM/DC fan headers for CPU coolers

• AIO Pump Fan Header

  A dedicated PWM/DC header for self-contained water-cooling setups

• 4-pin PWM/DC Fan Headers

  Each header supports auto-detection of PWM or DC fans

• M.2 heatsink

  Helps keep M.2 NVMe SSDs at optimum operating temperatures for consistent performance and reliability

• M.2 backplate

  Provides additional heat dissipation to deal with the thermal load of high-performance M.2 NVMe SSDs

Networking

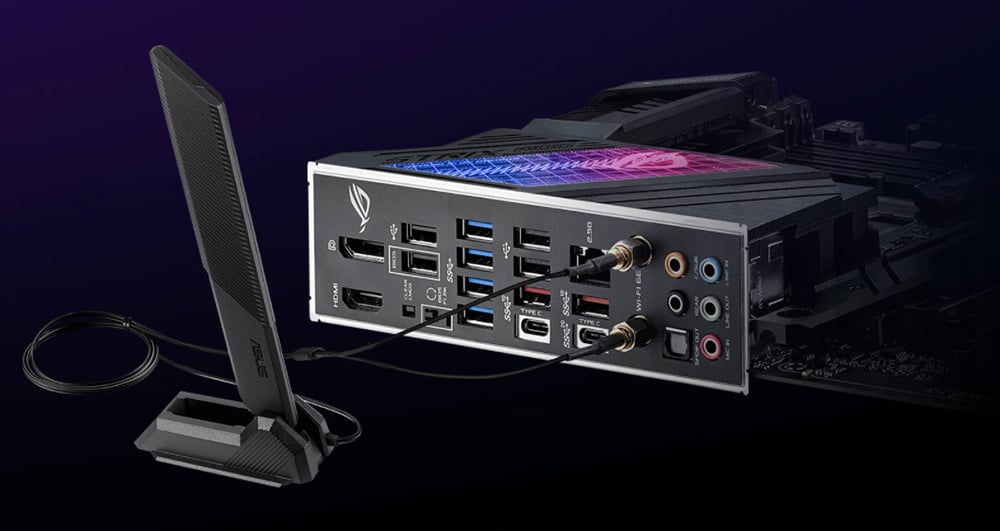

• WIFI 6E (802.11 AX)

  Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

  *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

• Intel 2.5 Gb Ethernet

  Onboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.

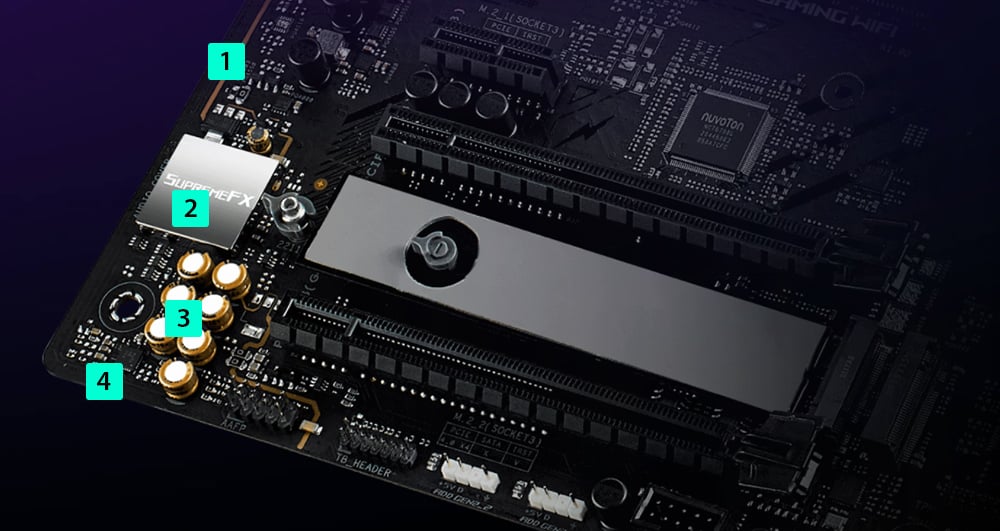

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-E Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

• Audio path isolation

  Specially designed circuit separation filters out electromagnetic interference from the motherboard and anything directly attached to it.

• Audio chip shield

  A specially crafted metal cover protects against ambient electromagnetic interference, preserving the integrity of audio signals to ensure the best sound quality.

• Premium Audio Capacitors

  High-quality components produce a warmer, more natural sound with exceptional clarity and fidelity.

• Savitech SV3H712 amplifier

  The integrated Savitech amplifier greatly improves THD+N performance from 72 to 83 dB, cleaning up distortion and noise for a clean, pristine sound.

UNDENIABLY ROG STRIX

A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, a pattern of grids and slashes, touches of mirror finish, and a leather ROG logo deliver a variety of carefully crafted surface textures. Last but not least, a distinctive lighting pattern built into the M.2 Combo-Sink finishes off a colorful tour of the ROG worldview.

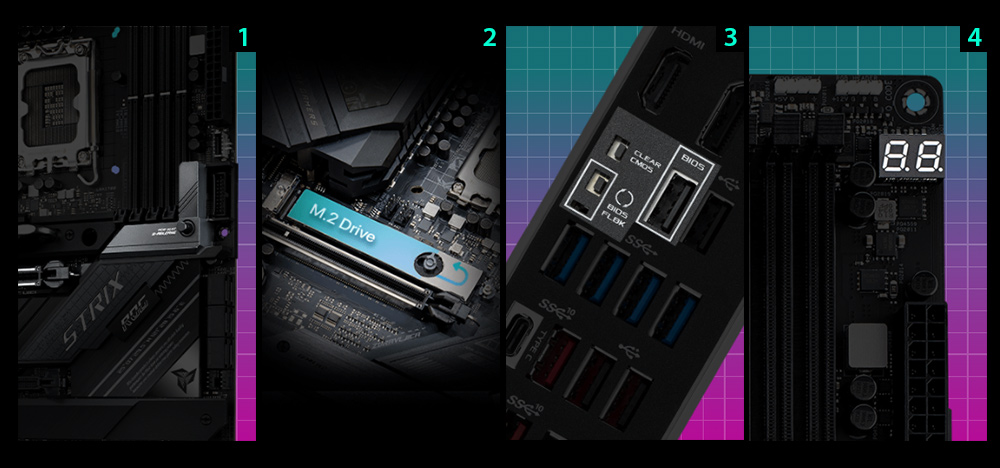

DIY Friendly

• PCIE^® SLOT Q-RELEASE

  A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

• M.2 Q-LATCH

  The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

• CLR CMOS BUTTON

  A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

  BIOS FLASHBACK™ BUTTON

  BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.

• Q-CODE

  Diagnostic codes provide a reference for fast and easy lookup of common installation and component issues.
