Productnummer: 3463102

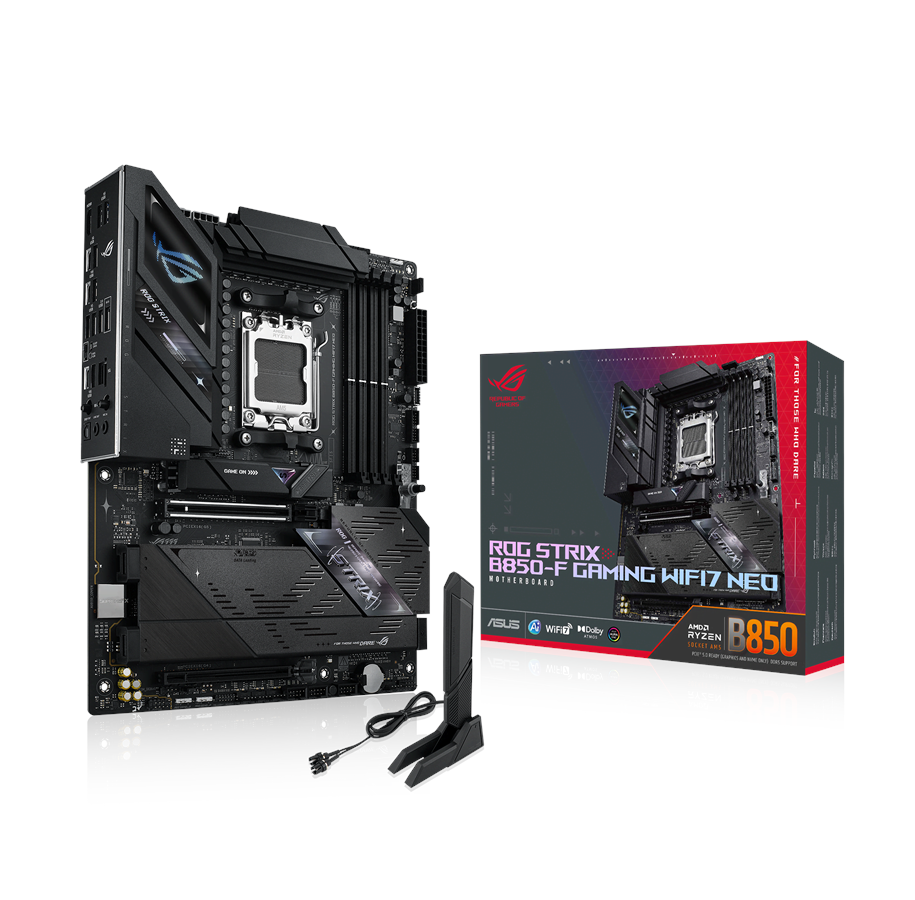

ASUS ROG STRIX B850-F GAMING WIFI7 NEO Moederbord - AMD B850 - AMD AM5 - DDR5 RAM - ATX

Moederbord, maat: ATX, AMD AM5 socket, AMD B850 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), opslagpoorten: 2 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 2 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, monitor verbinding: 1 x HDMI 2.1, Intel I226-V 5 Gigabit netwerk (LAN), WiFi 7 & Bluetooth 5.4, AMD Graphics ondersteund (CPU met VGA vereist), Realtek ALC4080 HD Audio (8-kanalen) geluidskaart, ASUS AURA Sync software

De ROG STRIX B850-F GAMING WIFI7 Neo is ontworpen om te domineren. Gebouwd om het volledige potentieel van AMD Ryzen 9000-, 8000- en 7000-serie processors te ontketenen, combineert dit moederbord een geavanceerd stroomontwerp met AI-technologieën voor topprestaties. Het levert compromisloze snelheid en stabiliteit die essentieel zijn voor elite gaming en de eisen van next-gen AI PC-toepassingen.

  • Overclocking Asynchronous Clock: Voor maximale frequentieflexibiliteit beschikt de ROG STRIX B850-F GAMING WIFI7 Neo over een ingebouwde klokgenerator die de CPU-basisklok loskoppelt van geheugen, PCIe en Infinity Fabric-snelheid.
  • PBO ENHANCEMENT: AMD Precision Boost Overdrive (PBO) verhoogt het stroom- en spanningsbudget van de CPU om de prestaties opportunistisch te verbeteren.
  • Server-Grade DRAM Enhancement: Dankzij uitgebreide ondersteuning voor AMD Extended Profiles for Overclocking (EXPO) is de ROG STRIX B850-F GAMING WIFI7 Neo volledig voorbereid op enthusiast-grade geheugenkitten.
  • 64MB BIOS: Een grotere BIOS-chip maakt een krachtigere interface en uitgebreide CPU-compatibiliteit met de nieuwste en toekomstige AM5-processors mogelijk, wat zorgt voor een soepele gebruikerservaring.
  • ONMISKENBAAR ROG STRIX: Met zijn donkere en intense esthetiek geeft de ROG STRIX B850-F GAMING WIFI7 Neo jouw build een duidelijke voorsprong. Het diepzwarte PCB wordt aangevuld met kleurafgestemde metalen heatsinks voor een krachtig en uniform geheel. Subtiele maar impactvolle RGB-verlichting op de I/O-shroud zorgt ervoor dat je altijd de sfeer kunt bepalen – van een stealthy look tot een opvallende persoonlijke stijl.

Op voorraad
275,18 € 227,42 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

The ASUS ROG STRIX B850-F GAMING WIFI7 NEO motherboard delivers performance and extensive connectivity options for gamers and power users. It supports Ryzen 7000/8000/9000 Series processors with a Socket AM5, ensuring compatibility with high-performance setups. This motherboard features four DIMM slots that support DDR5 SDRAM up to 9000 MT/s (O.C.), allowing for significant memory bandwidth and multitasking capabilities. Equipped with multiple M.2 and SATA ports, including support for RAID configurations, this motherboard provides storage options for gaming and application needs.Connectivity is a highlight of this model, featuring Wi-Fi 7 capabilities alongside 5 Gigabit Ethernet, ensuring fast and reliable network performance. A variety of USB ports, including USB-C 3.2 Gen 2 and USB4 support, offer options for peripheral connections. High-definition audio from the Realtek ALC4080 codec, compliant with Dolby Atmos, enhances the overall gaming experience. Furthermore, the motherboard is designed with features such as AI Cooling II and ASUS Aura Sync for customizable aesthetics and optimized performance.

RAM

CPU

Producent
Productnummer
3463102
Model
90MB1NX0-M0EAY0
EAN
4711636434904
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
ASUS ROG STRIX B850-F GAMING WIFI7 NEO - moederbord - ATX - Socket AM5 - AMD B850
Producttype
Moederbord - ATX
Chipsettype
AMD B850
Processor Socket
1 x Socket AM5
Compatibele processoren
(ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, ECC, on-die ECC, ECC (werkt in non-ECC-modus), niet-gebufferd
Opslagpoorten
2 x SATA-600 (RAID), 4 x M.2
USB- / FireWire-poorten
2 x USB-C 3.2 Gen 2 + 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD B850
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
(ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
8400 MT/s (O.C.), 8200 MT/s (O.C.), 9000 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC, on-die ECC, ECC (werkt in non-ECC-modus)
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
AMD EXPO-technologie, dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP), ondersteunde ECC-modules werken in niet-ECC-modus

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC4080
Conformiteitsnormen
High Definition Audio, Dolby Atmos

LAN

Netwerk Controller
Mediatek MT7925
Netwerk interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
2 x M.2 socket (2242/2260/2280 M.2-sleutel met M-sleuf)
2 x M.2 socket (2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 2 x 7-pins seriële ATA
PCIe 5.0 -aansluitingen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -aansluitingen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID-functies
AMD RAID Xpert2-technologie
Interfaces
1 x HDMI
2 x USB-C 3.2 Gen 2
2 x USB 3.2 Gen 2
5 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 1
2 x USB 2.0
1 x LAN (5Gigabit Ethernet)
2 x antenne
1 x SPDIF-uitgang
1 x microfoon - ministekker
1 x audiolijnuitgang - ministekker
Interne interfaces
6 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x Thunderbolt 4 - header
1 x audio - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-modus
Slapen/ontwaken
Activering op LAN (wake on LAN = WOL), wake on PME
Hardwarefuncties
ASUS Enhanced Memory Profile (AEMP), LANGuard, aan/uit-knop, BIOS FlashBack-knop, knop voor leegmaken van CMOS, CrashFree BIOS 3, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack-led, M.2-warmteafvoer, M.2-warmteafvoor achterplaat, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Preboot eXecution Environment (PXE), vooraf gemonteerde I/O-afscherming, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, 16+2+2 Phase Power Design, AI Cooling II, AI Networking II, AMD Precision Boost Overdrive (PBO), ASUS Asynchronous Clock, chipset warmteafvoer, VRM-warmteafvoer

Diversen

Meegeleverde accessoires
ASUS Wi-Fi Q-antenna, kabelbinders, M.2 Q-Latch, M.2 Q-Slide, 3 x M.2 rubber, M.2-achterplaat rubber verpakking, ROG-sleutelketting, ROG Strix sticker
Kabels meegeleverd
2 x Seriële ATA-kabel
Software meegeleverd
Adobe Creative Cloud (gratis op proef), AIDA64 Extreme (60 dagen op proef), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, HWiNFO, Norton 360 for Gamers (60 op proef), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, WinRAR (40 days trial)
Breedte
30.5 cm
Diepte
24.4 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
