Productnummer: 3442191

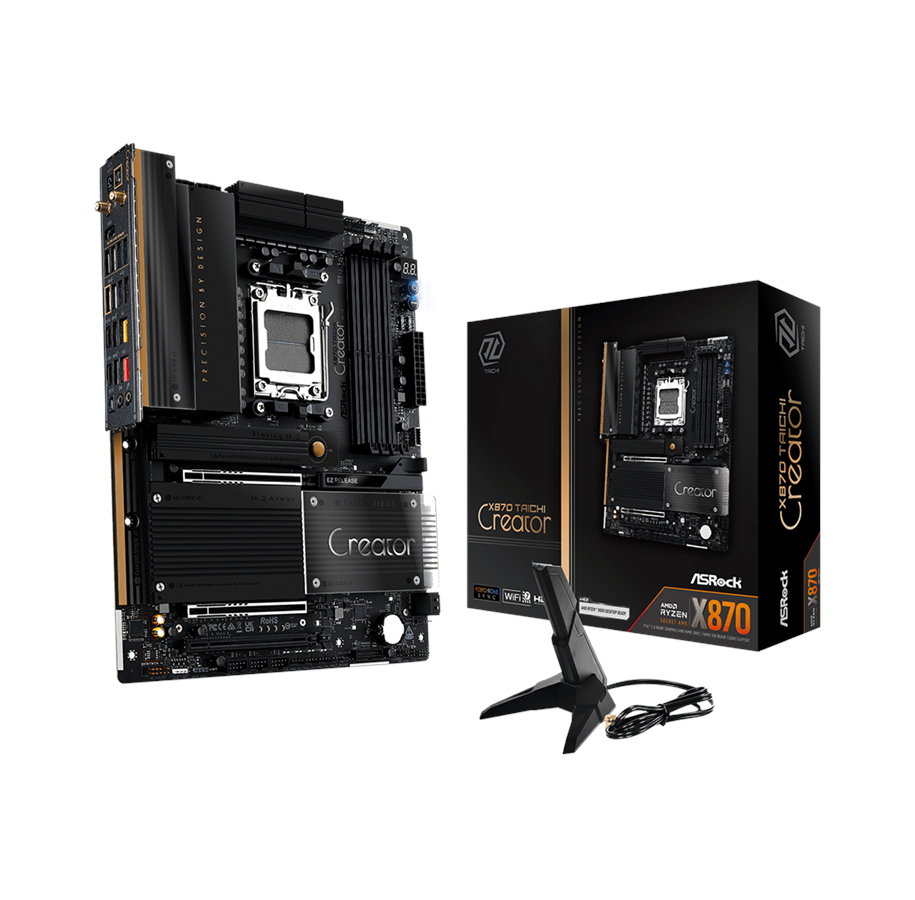

ASRock X870 TAICHI CREATOR Moederbord - AMD X870 - AMD AM5 - DDR5 RAM - ATX

Moederbord, ATX, Socket AM5, AMD X870 chipset, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, interne afbeeldingen (CPU vereist), HD Audio (8-kanaals)

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
7 stks Op voorraad - 2-3 werkdagen levertijd

The ASRock X870 TAICHI CREATOR motherboard is engineered for high-performance computing with a sophisticated design, suitable for gamers and content creators. It supports AMD Ryzen processors, providing flexibility for high-speed performance with DDR5 RAM technology, allowing memory speeds of up to 8000 MT/s when overclocked. The motherboard features multiple storage interfaces, including several M.2 slots for SSDs, and multiple USB ports that cater to various connectivity needs, enhancing the overall user experience.Equipped with high definition audio support via the Realtek ALC4082 codec, this motherboard is tailored for sound output, making it an ideal choice for multimedia applications. Networking capabilities are offered with dual 10 Gigabit Ethernet and Wi-Fi 7 compatibility, ensuring robust and speedy Internet connectivity. The X870 TAICHI CREATOR is designed with user-friendly features, such as a pre-mounted I/O shield and an intuitive UEFI BIOS, making installation and configuration simple and effective for enthusiasts and professionals.

CPU

RAM

Producent
Productnummer
3442191
Model
90-MXBTE0-A0UAYZ
EAN
4711581492066
Naar de website van de producent
Productbeschrijving
ASRock X870 TAICHI CREATOR - moederbord - ATX - Socket AM5 - AMD X870
Producttype
Moederbord - ATX
Chipsettype
AMD X870
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 1 x Hyper M.2, 2 x Blazing M.2, 1 x Ultra M.2
USB- / FireWire-poorten
2 x USB4 + 2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD X870
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
8000 MT/s (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, AMD EXPO-technologie, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC4082
Conformiteitsnormen
High Definition Audio

LAN

Netwerk Controller
Realtek RTL8126 / Marvell (Aquantia) AQC113
Netwerk interfaces
10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
2 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4-modus)
1 x M.2 socket (Key E)
4 x M.2 socket (2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -aansluitingen: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -aansluitingen: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -aansluitingen: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 3.0 -aansluitingen: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
2 x antenne
1 x HDMI
2 x USB4
2 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (5Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
1 x microfoon - ministekker
1 x audiolijnuitgang - ministekker
1 x SPDIF-uitgang
Interne interfaces
6 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x audio - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS
Hardwarefuncties
18+2+1-fase elektriciteitsontwerp, Enlarged Heatsink Armor, vooraf gemonteerde I/O-afscherming, 20K zwarte condensatoren, BIOS FlashBack-knop, ASRock Auto Driver Installer, ASRock Polychrome RGB, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, 80A Smart Power Stage, Nahimic Audio Enhacer, 8 Layer PCB, chipset warmteafvoer, vergrote M.2 koellichaam, DIY Friendly Design, anti-val M.2 koellichaam schroef

Diversen

Meegeleverde accessoires
ASRock 2,4/5/6 GHz-wifiantenne, splitterkabel voor 1 tot 2 ARGB-led, thermistor kabel
Kabels meegeleverd
4 x Seriële ATA-kabel
Software meegeleverd
ASRock A-Tuning, ASRock Polychrome SYNC
Conformiteitsnormen
ErP Ready, EuP Ready, FCC
Breedte
30.5 cm
Diepte
24.4 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
