Productnummer: 3428315

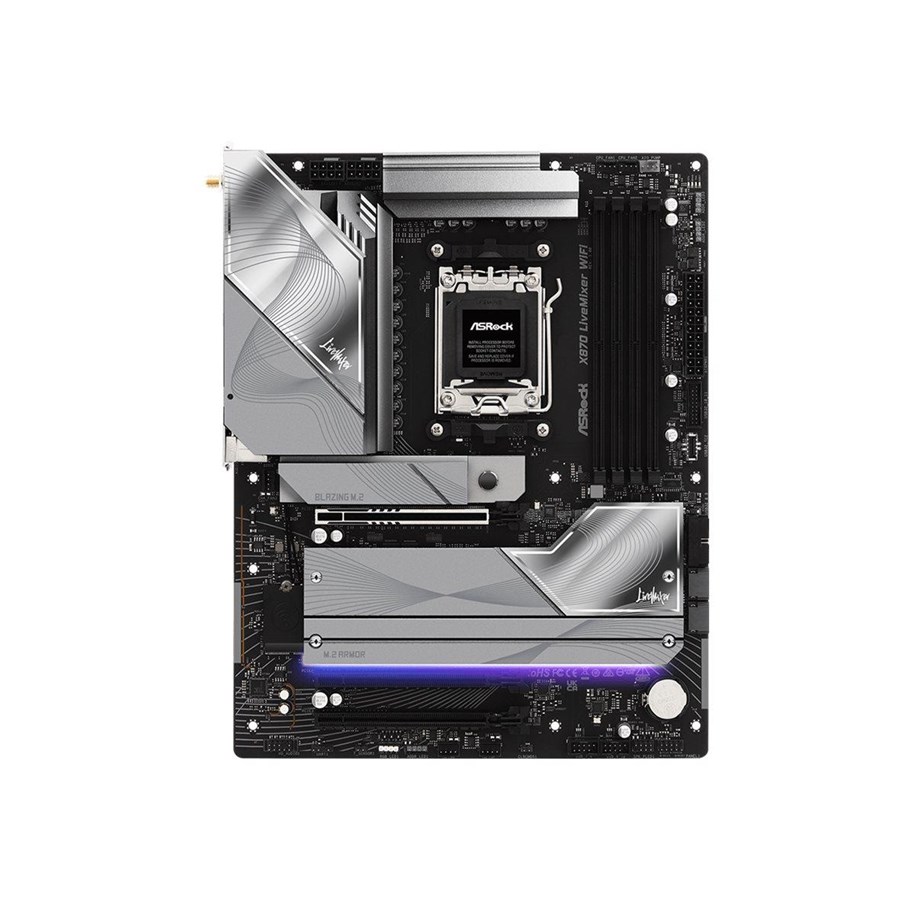

ASRock X870 LIVEMIXER WIFI - motherboard - ATX - Socket AM5 - AMD X870 Moederbord - AMD X870 - AMD AM5 socket - DDR5 RAM - ATX

Moederbord, ATX, Socket AM5, AMD X870 chipset, USB4, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, interne afbeeldingen (CPU vereist), HD Audio (8-kanaals)

239,13 € 197,63 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The ASRock X870 LIVEMIXER WIFI motherboard delivers a platform for building a high-performance system. Featuring support for the AMD Ryzen 7000/8000/9000 Series processors and equipped with a Socket AM5, this motherboard is designed for gamers and content creators seeking efficiency and versatility. The 4 DIMM slots enable dual-channel memory architecture, accommodating DDR5 SDRAM with speeds up to 8000 MT/s (O.C.). Enhanced with high-definition audio technology and a Realtek ALC4082 codec, it ensures immersive sound quality for both gaming and multimedia applications. Connectivity is abundant with multiple USB ports including USB 4, USB-C, and traditional USB connections, making it easy to connect peripherals and external devices. Equipped with Wi-Fi 6 and Bluetooth 5.4 capabilities, this motherboard ensures fast and reliable networking options. The board's design features a DIY-friendly layout and includes essential hardware improvements like a pre-mounted I/O shield and an enlarged heatsink armor for optimal thermal performance. For users who demand versatility, the ASRock X870 LIVEMIXER WIFI provides multiple expansion slots for graphics and storage options including Blazing M.2 and Hyper M.2 sockets. This combination of features and technology makes it a choice for building a future-ready PC.

Producent
Productnummer
3428315
Model
X870 LIVEMIXER WIFI
EAN
4711581491823
Naar de website van de producent
Productbeschrijving
ASRock X870 LIVEMIXER WIFI - moederbord - ATX - Socket AM5 - AMD X870
Producttype
Moederbord - ATX
Chipsettype
AMD X870
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
2 x SATA-600 (RAID), 2 x Hyper M.2, 2 x Blazing M.2
USB- / FireWire-poorten
2 x USB4 + 1 x USB-C 3.2 Gen 1 + 7 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Algemeen

Producttype
Moederbord - ATX
Chipsettype
AMD X870
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
8000 MT/s (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, AMD EXPO-technologie, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC4082
Conformiteitsnormen
High Definition Audio

LAN

Netwerk Controller
Realtek RTL8126
Netwerk interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x4-modus)
1 x M.2 socket (Key E)
3 x M.2 socket (2280 M.2-sleutel met M-sleuf)
1 x M.2 socket (2230/2242/2260/2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 2 x 7-pins seriële ATA - RAID 0 / RAID 1
PCIe 4.0 -aansluitingen: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -aansluitingen: 2 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
2 x antenne
1 x HDMI
2 x USB4
1 x USB-C 3.2 Gen 1
7 x USB 3.2 Gen 1
6 x USB 2.0
1 x LAN (5Gigabit Ethernet)
1 x microfoon - ministekker
1 x audiolijnuitgang - ministekker
1 x SPDIF-uitgang
Interne interfaces
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x audio - header
1 x SPI - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS
Hardwarefuncties
16+2+1 Phase Power Design, Enlarged Heatsink Armor, vooraf gemonteerde I/O-afscherming, 20K zwarte condensatoren, BIOS FlashBack-knop, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), VRM-warmteafvoer, chipset warmteafvoer, vergrote M.2 koellichaam, Nahimic Audio Enhacer, Hi-Density Power Connectors, 8 Layer PCB, DIY Friendly Design, anti-val M.2 koellichaam schroef, aluminium warmteafvoerontwerp

Diversen

Meegeleverde accessoires
2 x ASRock WiFi 2.4/5/6 GHz Antennas, thermistor kabel
Kabels meegeleverd
2 x Seriële ATA-kabel
Software meegeleverd
ASRock A-Tuning, ASRock Polychrome SYNC
Conformiteitsnormen
ErP Ready, EuP Ready, FCC
Breedte
30.5 cm
Diepte
24.4 cm
