Productnummer: 3279509

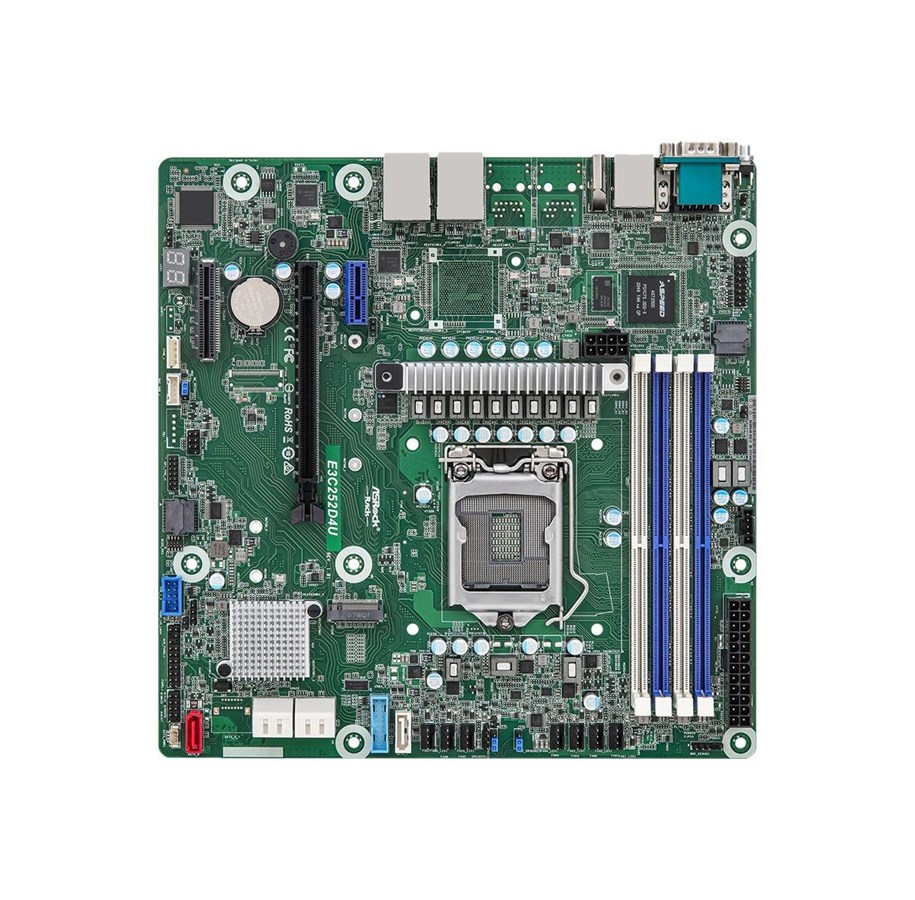

ASRock Rack E3C252D4U - motherboard - micro ATX - LGA1200 Socket - C252 Moederbord - Intel C252 - Intel LGA1200 - DDR4 RAM - Micro-ATX

Moederbord, micro ATX, LGA1200-sokkel, C252 chipset, USB 3.2 Gen 1, 2 x Gigabit LAN, interne afbeeldingen

494,27 € 408,49 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd

The ASRock Rack E3C252D4U motherboard delivers robust performance and versatility for various applications. Featuring support for Intel's 10th Generation Pentium and Xeon E3-2300 series processors, this micro ATX motherboard is designed for maximized throughput with potential RAM speeds reaching up to 3200 MHz. With 4 DIMM slots, it supports both ECC and non-ECC DDR4 SDRAM, ensuring reliable data integrity crucial for server environments. Connectivity is a highlight, with multiple options including 6 x SATA-600 for storage, 1 x M.2 socket, and an array of USB ports. The inclusion of 2 x Gigabit Ethernet provides ample networking capabilities for efficient data transfer. Additionally, features like IPMI support and AMI BIOS enhance manageability and monitoring, making this motherboard suitable for both enterprise and personal computing needs.

Producent
Productnummer
3279509
Model
E3C252D4U
Naar de website van de producent
Productbeschrijving
ASRock Rack E3C252D4U - moederbord - micro ATX - LGA1200-sokkel - C252
Producttype
Moederbord - micro ATX
Chipsettype
Intel C252
Processor Socket
LGA1200-sokkel
Compatibele processoren
Xeon E3-2300 serie, Pentium (ondersteunt 10e generatie Intel Pentium)
Max RAM-grootte
32 GB
Ondersteund RAM
4 DIMM-sleuven - DDR4, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
6 x SATA-600 (RAID), 1 x M.2
USB- / FireWire-poorten
4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
Afbeeldingen
ASPEED AST2500
Opgedragen videogeheugen
256 MB DDR4 SDRAM
LAN
2 x Gigabit Ethernet

Algemeen

Producttype
Moederbord - micro ATX
Chipsettype
Intel C252
Processor Socket
LGA1200-sokkel
Compatibele processoren
Xeon E3-2300 serie, Pentium (ondersteunt 10e generatie Intel Pentium)

Ondersteund RAM

Maximale grootte
32 GB
Technologie
DDR4
Busklok
2666 MHz, 3200 MHz
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd

Afbeeldingen

Graphics controller
ASPEED AST2500
Opgedragen videogeheugen
256 MB DDR4 SDRAM

LAN

Netwerk Controller
Intel I210
Netwerk interfaces
2 x Gigabit Ethernet

Uitbreiding / Aansluiting

Uitbreidingssleuven
4 x DIMM 288-pins (1.2 V)
1 x CPU
1 x PCIe 4.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x1
Storage Interfaces
SATA-600 / PCIe 3.0 -aansluitingen: 1 x M.2
SATA-600 -aansluitingen: 6 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
2 x LAN (Gigabit Ethernet)
1 x VGA
4 x USB 3.2 Gen 1
1 x beheer
1 x HDMI
1 x serieel
Interne interfaces
1 x luidspreker - header
1 x SGPIO - header
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS, ACPI 6,2 ondersteuning, SMBIOS 3,3 ondersteuning, IPMI-ondersteuning
Hardwarecontrole
Kerntemperatuur CVE, temperatuur chassis, Tachometer CVE-ventilator, tachometer ventilator chassis, systeemvoltage, Voltage CVE-kern
Hardwarefuncties
Debug LED, ASRock Rack Instant Flash

Diversen

Conformiteitsnormen
Plug and Play
Breedte
24.4 cm
Diepte
24.4 cm
