Productnummer: 3424328

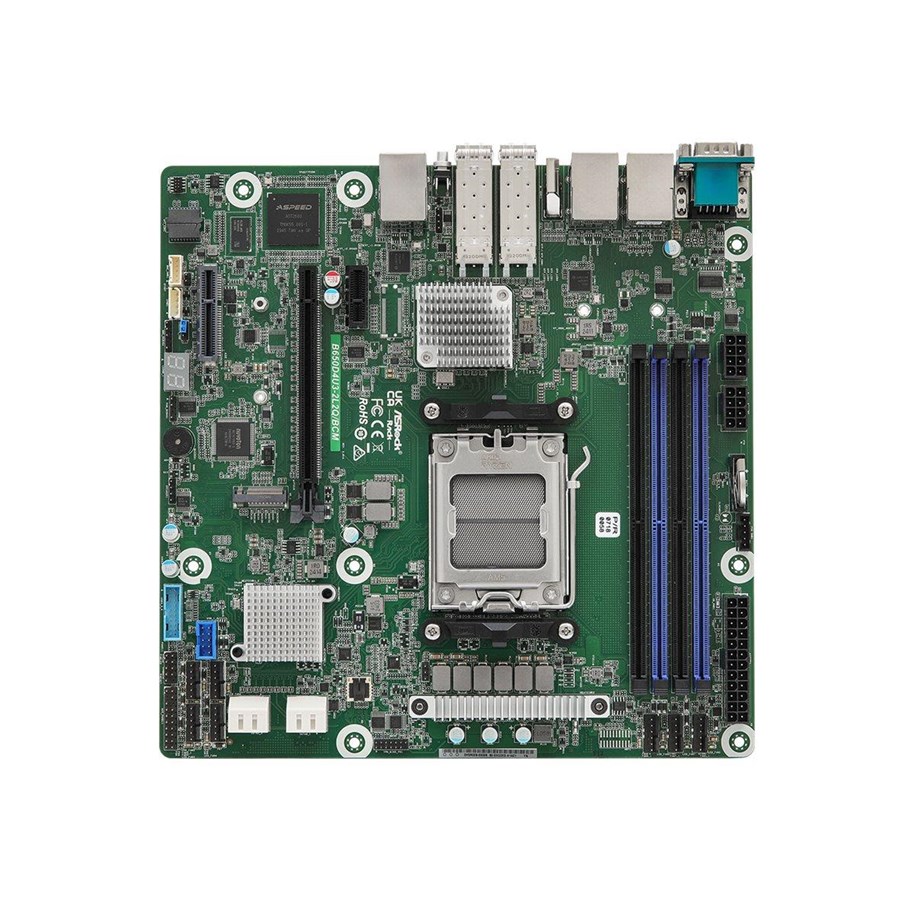

ASRock Rack B650D4U3-2L2Q/BCM - motherboard - micro ATX - Socket AM5 - Moederbord - AMD B650E - AMD AM5 - DDR5 RAM - Micro-ATX
Moederbord, micro ATX, Socket AM5, AMD B650E chipset, USB 3.2 Gen 1, 2 x 25 Gigabit LAN, 2 x Gigabit LAN, interne afbeeldingen
594,93 €
491,68 € excl. BTW
Deze bundel bevat
Goedkoopste privé verzending 6,99 €
Bestelproduct, 5 - 6 werkdagen levertijd
The ASRock Rack B650D4U3-2L2Q/BCM motherboard is engineered for robust performance and reliability, making it a choice for server and workstation applications. Featuring a micro ATX form factor, it supports the powerful Ryzen 7000/8000/9000 Series processors, ensuring enhanced processing capabilities without sacrificing efficiency. With support for DDR5 SDRAM and RAM speeds up to 5600 MHz along with four DIMM slots, users can enjoy a boost in memory performance and multitasking capabilities.As for connectivity, the motherboard offers an extensive range of interfaces including multiple network protocols such as 25 Gigabit Ethernet and various expansion slots, making it versatile for various needs. The inclusion of four USB 3.2 Gen 1 ports provides fast data transfer options, while the HDMI and VGA outputs ensure visual display requirements are met. In terms of hardware monitoring, features like CPU core temperature monitoring and chassis intrusion detection enhance system reliability and security, making this motherboard a strong foundation for any computing setup.
Producent
Productnummer
3424328
Model
B650D4U3-2L2Q/BCM
EAN
4711430522968
Naar de website van de producent
Productbeschrijving
ASRock Rack B650D4U3-2L2Q/BCM - moederbord - micro ATX - Socket AM5 - AMD B650E
Producttype
Moederbord - micro ATX
Chipsettype
AMD B650E
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
192 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600, 1 x M.2
USB- / FireWire-poorten
4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
Afbeeldingen
ASPEED AST2600
LAN
2 x 25 Gigabit Ethernet, 2 x Gigabit Ethernet
Algemeen
Producttype
Moederbord - micro ATX
Chipsettype
AMD B650E
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Ondersteund RAM
Maximale grootte
192 GB
Technologie
DDR5
Busklok
3600 MHz, 5600 MHz
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Afbeeldingen
Graphics controller
ASPEED AST2600
LAN
Netwerk Controller
Broadcom BCM57502 / Intel I210
Netwerk interfaces
2 x 25 Gigabit Ethernet, 2 x Gigabit Ethernet
Uitbreiding / Aansluiting
Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins (1.1 V)
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1
1 x M.2 socket (2242/2280 M.2-sleutel met M-sleuf)
4 x DIMM 288-pins (1.1 V)
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1
1 x M.2 socket (2242/2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA
PCIe 5.0 -aansluitingen: 1 x M.2
PCIe 5.0 -aansluitingen: 1 x M.2
Interfaces
1 x VGA
1 x HDMI
1 x beheer
1 x serieel
4 x USB 3.1 Gen 1
2 x LAN (Gigabit Ethernet)
2 x LAN (25Gigabit Ethernet) - SFP28
1 x HDMI
1 x beheer
1 x serieel
4 x USB 3.1 Gen 1
2 x LAN (Gigabit Ethernet)
2 x LAN (25Gigabit Ethernet) - SFP28
Interne interfaces
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x SPI - header
1 x VGA - header
1 x luidspreker - header
2 x USB 2.0 - header
1 x SPI - header
1 x VGA - header
1 x luidspreker - header
Stroomconnectoren
24-pins hoofdstroomconnector, 2 x 8-pins ATX12V-connector
Functies
BIOS-type
AMI
BIOS-functies
UEFI BIOS, ACPI 6,4 ondersteuning, SMBIOS 3,5 ondersteuning, IPMI-ondersteuning
Hardwarecontrole
Kerntemperatuur CVE, ventilatorregelaar, systeemvoltage
Hardwarefuncties
Detectie inbreuk in chassis, diagnostische LED's
Diversen
Conformiteitsnormen
Plug and Play
Breedte
24.4 cm
Diepte
24.4 cm
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
