Productnummer: 3525041

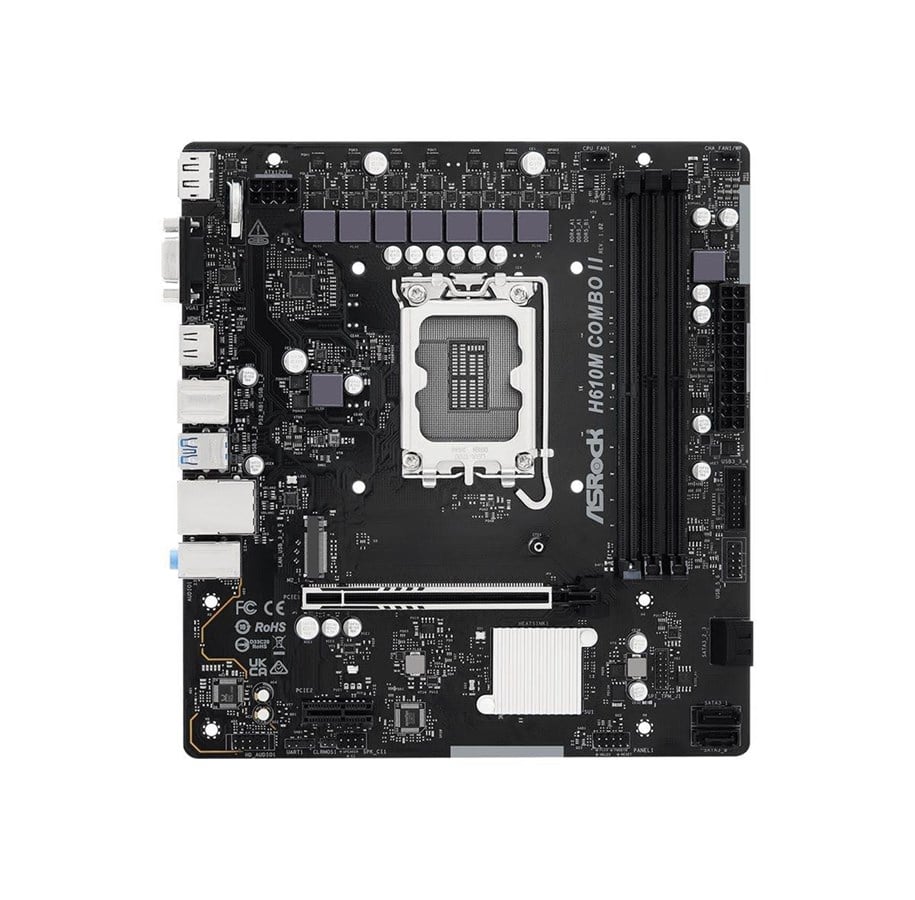

ASRock H610M COMBO II - motherboard - micro ATX - LGA1700 Socket - H610 Moederbord - Intel H610 - Intel LGA1700 - DDR5 RAM - Micro-ATX

Moederbord, micro ATX, LGA1700-sokkel, H610 chipset, USB 3.2 Gen 1, Gigabit LAN, interne afbeeldingen (CPU vereist), HD Audio (8-kanaals)

73,71 € 60,92 € excl. BTW

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The ASRock H610M COMBO II motherboard is designed to support 12th, 13th, and 14th Generation Intel Core, Pentium, and Celeron processors, making it a versatile choice for various build configurations. With a micro ATX form factor, it offers a DIY-friendly design that facilitates easy installation and enhances user experience. Equipped with a robust Intel H610 chipset, this motherboard supports DDR5 SDRAM at speeds up to 5600 MT/s, ensuring ample performance for multitasking and demanding applications.Connectivity is a strong suit of the H610M COMBO II, featuring numerous USB ports including USB 3.2 Gen 1 for fast data transfer, alongside HDMI, DisplayPort, and VGA outputs for versatile video connections. With high-definition audio capabilities powered by the Realtek ALC897 audio codec, users can enjoy an immersive audio experience. This motherboard also features 6+1+1 phase power design, ensuring stability and reliability during operation, further enhanced by ASRock's range of utilities such as the Auto Driver Installer and Full HD UEFI BIOS for streamlined management and configuration.

Producent
Productnummer
3525041
Model
90-MXBUN0-A0UAYZ
EAN
4711581494671
Naar de website van de producent
Productbeschrijving
ASRock H610M COMBO II - moederbord - micro ATX - LGA1700-sokkel - H610
Producttype
Moederbord - micro ATX
Chipsettype
Intel H610
Processor Socket
1 x LGA1700-sokkel
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium / Celeron)
Max RAM-grootte
128 GB
Ondersteund RAM
2 DIMM-sleuven - DDR5, niet-ECC, ECC (werkt in non-ECC-modus), niet-gebufferd
Opslagpoorten
4 x SATA-600, 1 x Ultra M.2
USB- / FireWire-poorten
2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
Gigabit Ethernet

Algemeen

Producttype
Moederbord - micro ATX
Chipsettype
Intel H610
Processor Socket
LGA1700-sokkel
Max aantal processors
1
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium / Celeron)

Ondersteund RAM

Maximale grootte
128 GB
Technologie
DDR5
Busklok
5600 MT/s, 4800 MT/s
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC (werkt in non-ECC-modus)
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP) 3.0, ondersteunde ECC-modules werken in niet-ECC-modus

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC897
Conformiteitsnormen
High Definition Audio

LAN

Netwerk Controller
Realtek RTL8111H
Netwerk interfaces
Gigabit Ethernet

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
3 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 3.0 x1
1 x Ultra M.2 (2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA
PCIe 3.0 -aansluitingen: 1 x M.2
Interfaces
1 x HDMI
1 x VGA
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
1 x audiolijningang - ministekker
1 x PS/2 toetsenbord / muis
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
Interne interfaces
2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x SPI - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS
Hardwarefuncties
6+1+1 Phase Power Design, DIY Friendly Design, ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Ultra M.2, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0

Diversen

Meegeleverde accessoires
IO-scherm
Kabels meegeleverd
2 x Seriële ATA-kabel
Software meegeleverd
ASRock A-Tuning
Conformiteitsnormen
FCC, ERP, EuP Ready
Breedte
22 cm
Diepte
20.3 cm
