Productnummer: 3486289

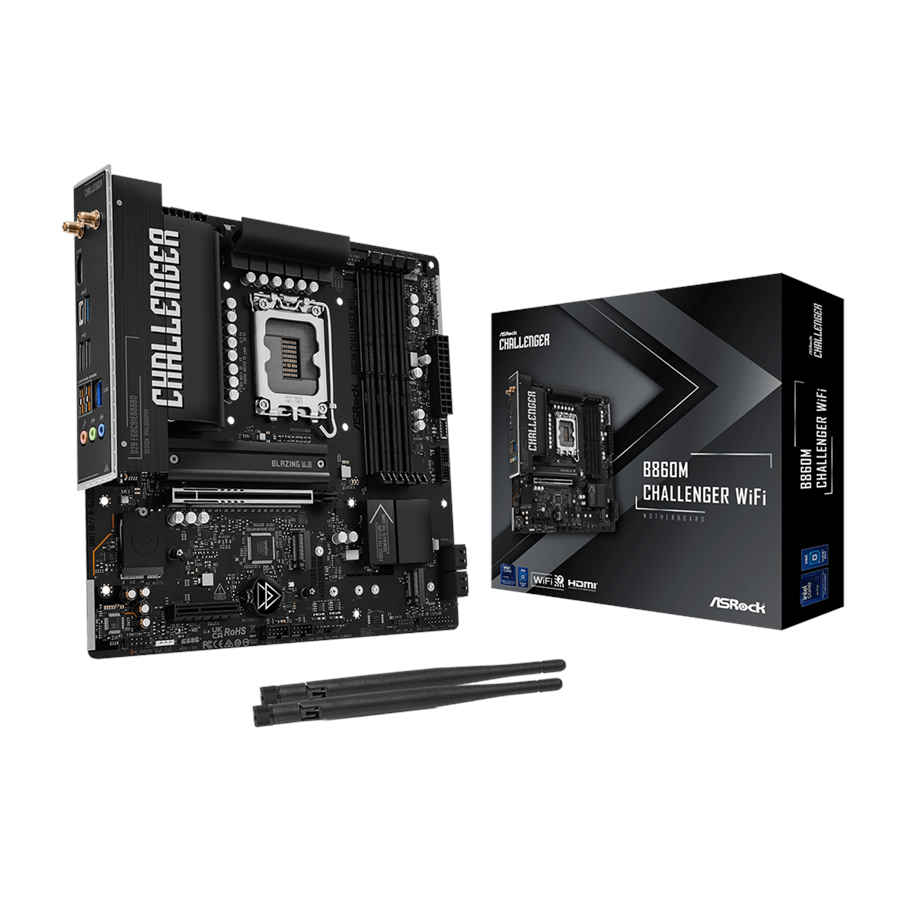

ASRock B860M Challenger WiFi Moederbord - Intel B860 - Intel LGA1851 - DDR5 RAM - Micro-ATX

Moederbord, maat: Micro-ATX, Intel LGA1851 socket, Intel B860 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), opslagpoorten: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A & C, monitor verbinding: 1 x HDMI 2.1, Realtek RTL8125BG 2.5 Gigabit netwerk (LAN), WiFi 7 & Bluetooth 5.4, Intel Xe Graphics ondersteund (CPU met VGA vereist), Realtek ALC897 HD Audio (8-kanalen) geluidskaart, ASRock Polychrome SYNC software

145,53 € 120,27 € excl. BTW

Deze bundel bevat

Intel Game Bundle - Motherboard B860/Z890 Moederbord

Waarde 40,00 € Geldig van 21-07-2026 00:00 tot en met 31-12-2026 23:59 - Zolang de voorraad strekt

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The Challenger Series motherboard represents fearless play, bold breakthroughs, and relentless evolution. With solid specs, Wi-Fi 7, and gamer-focused features like Lightning Gaming Ports and toolless installation, it’s a perfect choice for gamers.

Forge the Future Dominate the Game
Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

RAM

CPU

Producent
Productnummer
3486289
Model
90-MXBUP0-A0UAYZ
EAN
4711581494602
Naar de website van de producent
Processorfabrikant
Intel
Processor socket
LGA 1851 (Socket V1)
Compatibele processors
Intel Core Ultra (Series 2)
Max. aantal SMP-processoren
1
Ondersteunde geheugen types
DDR5-SDRAM
Aantal geheugenslots
4
Maximum intern geheugen
256 GB
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Niet gebufferd geheugen
Ja
Ondersteunde opslagstationinterfaces
M.2, SATA III
Ondersteunde types opslag-drives
HDD & SSD
HDCP
Ja
HDCP versie
2.3
USB 2.0 aansluitingen
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen
2
Aantal SATA III connectors
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aantal CPU-ventilatoraansluitingen
2
Aansluitingen voor behuizingsventilatoren
2
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja
Aantal RGB LED-pinheaders
4
Aantal USB 2.0-poorten
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
3
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
0
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
0
Aantal Ethernet LAN (RJ-45)-poorten
1
VGA (D-Sub)poort(en)
0
Aantal HDMI-poorten
1
DVI-D poorten
0
Hoofdtelefoonuitgangen
1
Lijningang
Ja
Microfoon, line-in ingang
Ja
Wifi
Ja
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Wifi-standaard
Wi-Fi 7 (802.11be)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Ja
Bluetooth-versie
5.4
Component voor
PC
Moederbord form factor
micro ATX
Moederbord chipset familie
Intel
Chipset moederbord
Intel B860
Audio-uitgangskanalen
7.1 kanalen
Audiochip
Realtek ALC897
Ondersteunt Windows
Windows 11 x64
PCI Express x4 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
1
BIOS type
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
Breedte
244 mm
Diepte
244 mm
Meegeleverde kabels
SATA
Antenne inbegrepen
Ja

Processor

Processorfabrikant
Intel
Processor socket
LGA 1851 (Socket V1)
Compatibele processors
Intel Core Ultra (Series 2)
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types
DDR5-SDRAM
Aantal geheugenslots
4
Maximum intern geheugen
256 GB
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces
M.2, SATA III
Ondersteunde types opslag-drives
HDD & SSD

Grafisch

HDCP
Ja
HDCP versie
2.3

Interne aansluitingen

USB 2.0 aansluitingen
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen
2
Aantal SATA III connectors
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aantal CPU-ventilatoraansluitingen
2
Aansluitingen voor behuizingsventilatoren
2
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja
Aantal RGB LED-pinheaders
4

Aansluitingen achterzijde

Aantal USB 2.0-poorten
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
3
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
0
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
0
Aantal Ethernet LAN (RJ-45)-poorten
1
VGA (D-Sub)poort(en)
0
Aantal HDMI-poorten
1
DVI-D poorten
0
Hoofdtelefoonuitgangen
1
Lijningang
Ja
Microfoon, line-in ingang
Ja

Netwerk

Wifi
Ja
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Wifi-standaard
Wi-Fi 7 (802.11be)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Ja
Bluetooth-versie
5.4

Kenmerken

Component voor
PC
Moederbord form factor
micro ATX
Moederbord chipset familie
Intel
Chipset moederbord
Intel B860
Audio-uitgangskanalen
7.1 kanalen
Audiochip
Realtek ALC897
Ondersteunt Windows
Windows 11 x64

Uitbreidingsmodules

PCI Express x4 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
1

BIOS

BIOS type
UEFI AMI
Grootte BIOS-geheugen
256 Mbit

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Antenne inbegrepen
Ja
