Productnummer: 3325875

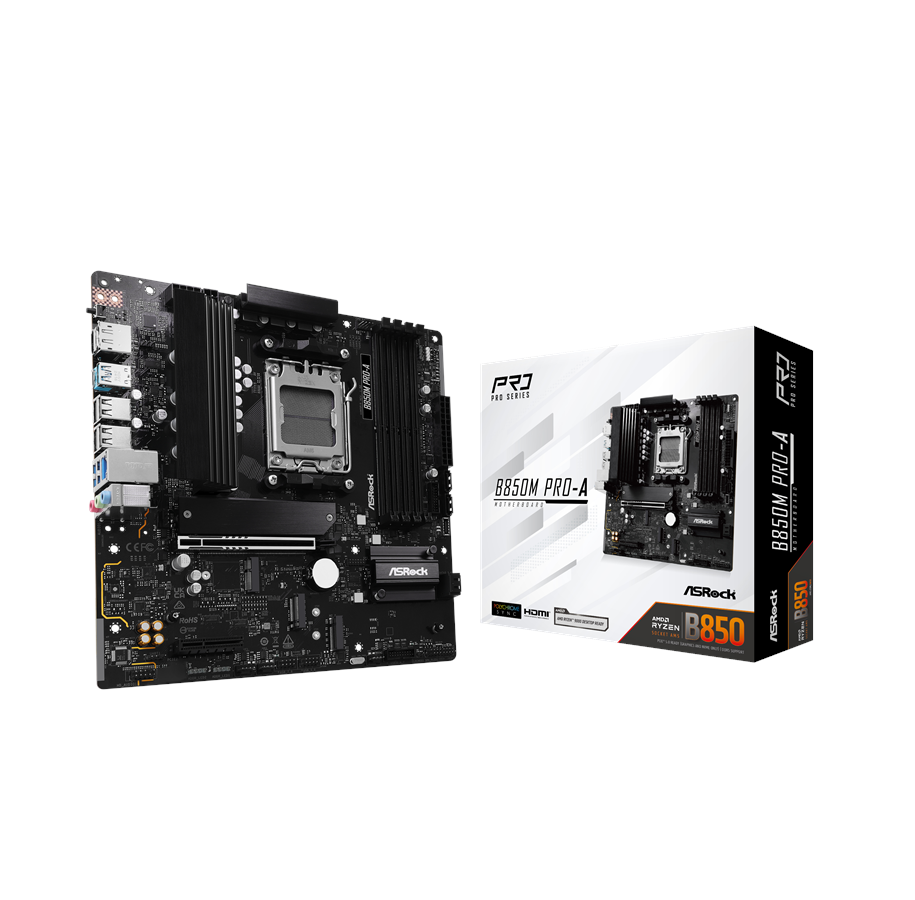

ASRock B850M Pro-A Moederbord - AMD B850 - AMD AM5 - DDR5 RAM - Micro-ATX

Moederbord, maat: Micro-ATX, AMD AM5 socket, AMD B850 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), opslagpoorten: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, monitor verbinding: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek RTL8125BG 2.5 Gigabit netwerk (LAN), AMD Graphics ondersteund (CPU met VGA vereist), Realtek ALC897 HD Audio (8-kanalen) geluidskaart, ASRock Polychrome SYNC software

Deze bundel bevat

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Waarde 39,99 € Geldig vanaf 07-10-2024 00:00 - zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd (verwacht in eigen magazijn 24-6-2026)

The ASRock B850M Pro-A motherboard brings a wealth of features designed for users seeking robust performance and versatility. Equipped with a micro ATX form factor and an AMD B850 chipset, it supports Ryzen 7000/8000/9000 series processors, enhancing system capabilities for a variety of applications. With four DIMM slots for DDR5 SDRAM, this motherboard allows for dual-channel memory architecture that ensures smooth multitasking and speedy performance. The audio capabilities of the B850M Pro-A stand out with high definition audio and an 8-channel setup powered by the Realtek ALC897 codec. Additionally, multiple expansion slots including PCIe 4.0 x4 and PCIe 5.0 x16 provide flexibility for graphics cards or other add-ons. A host of connectivity options including USB 3.2 Gen 1, USB 3.2 Gen 2, and USB-C ports enhance the user experience, making it easy to connect various peripherals. This motherboard represents a strong foundation for building a powerful, efficient computing environment.

CPU

RAM

Producent
Productnummer
3325875
Model
90-MXBR80-A0UAYZ
EAN
4711581490390
Naar de website van de producent
Productbeschrijving
ASRock B850M Pro-A - moederbord - micro ATX - Socket AM5 - AMD B850
Producttype
Moederbord - micro ATX
Chipsettype
AMD B850
Processor Socket
1 x Socket AM5
Compatibele processoren
(ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, ECC, niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2
USB- / FireWire-poorten
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
2.5 Gigabit Ethernet

Algemeen

Producttype
Moederbord - micro ATX
Chipsettype
AMD B850
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
(ondersteunt Ryzen 7000/8000/9000 Series)

Ondersteund RAM

Maximale grootte
256 GB
Technologie
DDR5
Busklok
8000 MHz (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, Intel Extreme Memory Profiles (XMP), AMD EXPO-technologie

Audio

Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC897
Conformiteitsnormen
High Definition Audio

LAN

Netwerk Controller
Dragon RTL8125BG
Netwerk interfaces
2.5 Gigabit Ethernet

Uitbreiding / Aansluiting

Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x M.2 socket (voor draadloze module)
3 x M.2 socket (2280 M.2-slot)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -aansluitingen: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -aansluitingen: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
2 x antenne
1 x LAN (2.5Gigabit Ethernet)
1 x HDMI
1 x DisplayPort
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
Interne interfaces
1 x USB-C 3.2 Gen 1 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x SPI - header
1 x audio - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector, 4-pins ATX12V connector

Functies

BIOS-type
AMI
BIOS-functies
UEFI BIOS
Hardwarefuncties
ASRock EZ Mode, ASRock Instant Flash, ASRock Full HD UEFI, ASRock Auto Driver Installer, 8+2+1 Phase Power Design, Dr.MOS MOSFET, VRM-warmteafvoer, DIY Friendly Design, aluminium warmteafvoerontwerp, ASRock FAN-Tastic Tuning, Nahimic Audio Enhacer, ASRock Polychrome RGB, vooraf gemonteerde I/O-afscherming

Diversen

Software meegeleverd
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, Stuurprogramma's & hulpprogramma's
Conformiteitsnormen
FCC, EuP Ready, ErP Ready
Breedte
24.4 cm
Diepte
24.4 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
