Productnummer: 3318044

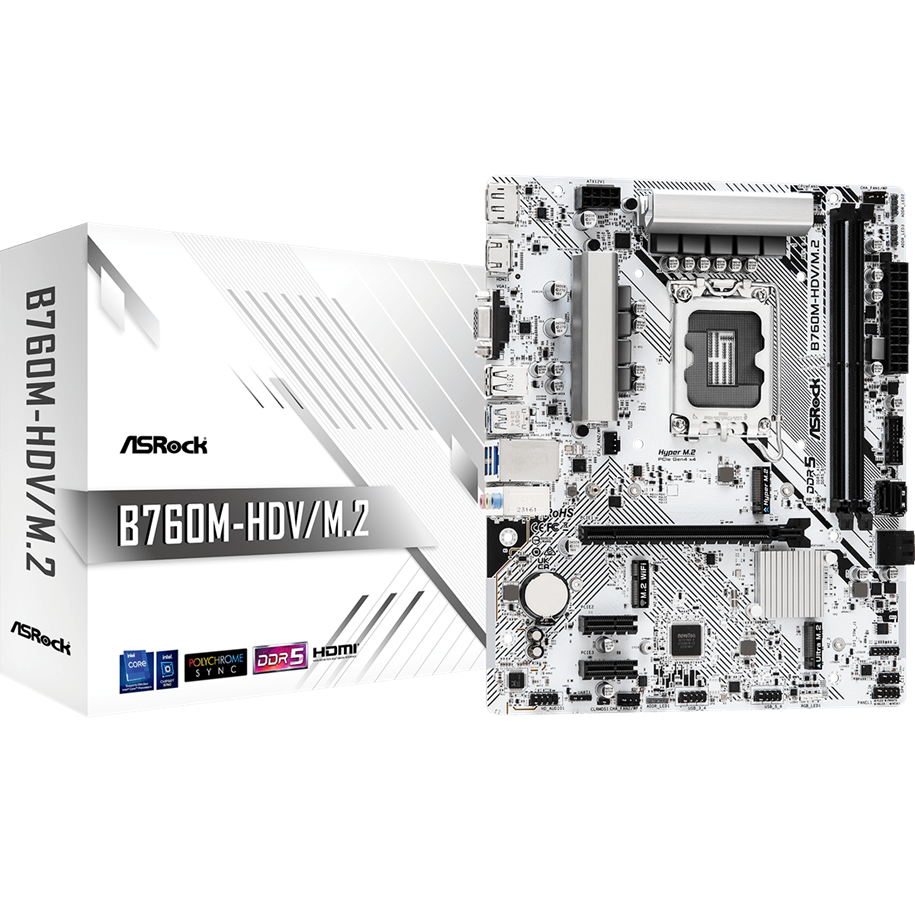

ASRock B760M-HDV/M.2 Moederbord - Intel B760 - Intel LGA1700 - DDR5 RAM - Micro-ATX
Moederbord, micro ATX, LGA1700-sokkel, B760 chipset, USB-C 3.2 Gen 1, USB 3.2 Gen 1, Gigabit LAN, interne afbeeldingen (CPU vereist), HD Audio (8-kanaals)
Deze bundel bevat
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The ASRock B760M-HDV/M.2 motherboard is designed to cater to the needs of modern PC builders and gamers, offering a blend of performance, connectivity, and durability. With support for Intel Core processors, users can expect seamless computing experiences, whether for work or play. The motherboard's high-speed DDR5 memory support, coupled with advanced storage options including Hyper M.2 and Ultra M.2 sockets, ensures rapid data access and transfer speeds, enhancing overall system responsiveness.
For connectivity, the motherboard boasts a comprehensive array of ports including VGA, HDMI, DisplayPort, and USB-C 3.2 Gen 1, facilitating the connection of multiple peripherals and displays. Networking is handled by a 2.5 Gigabit Ethernet controller, providing users with fast and reliable Internet access. Additionally, the motherboard features a robust 7+1+1 Phase Power Design and ESD Protection, ensuring stable power delivery and protecting the system from electrical surges. With these features, the ASRock B760M-HDV/M.2 motherboard stands out as a solid foundation for building a high-performance PC.
For connectivity, the motherboard boasts a comprehensive array of ports including VGA, HDMI, DisplayPort, and USB-C 3.2 Gen 1, facilitating the connection of multiple peripherals and displays. Networking is handled by a 2.5 Gigabit Ethernet controller, providing users with fast and reliable Internet access. Additionally, the motherboard features a robust 7+1+1 Phase Power Design and ESD Protection, ensuring stable power delivery and protecting the system from electrical surges. With these features, the ASRock B760M-HDV/M.2 motherboard stands out as a solid foundation for building a high-performance PC.
Producent
Productnummer
3318044
Model
90-MXBMJ0-A0UAYZ
EAN
4710483943485
Naar de website van de producent
Productbeschrijving
ASRock B760M-HDV/M.2 - moederbord - micro ATX - LGA1700-sokkel - B760
Producttype
Moederbord - micro ATX
Chipsettype
Intel B760
Processor Socket
1 x LGA1700-sokkel
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium Gold / Celeron)
Max RAM-grootte
96 GB
Ondersteund RAM
2 DIMM-sleuven - DDR5, niet-ECC, ECC (werkt in non-ECC-modus), niet-gebufferd
Opslagpoorten
4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Ultra M.2
USB- / FireWire-poorten
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
2.5 Gigabit Ethernet
Algemeen
Producttype
Moederbord - micro ATX
Chipsettype
Intel B760
Processor Socket
LGA1700-sokkel
Max aantal processors
1
Compatibele processoren
(ondersteunt 12e/13e en 14e generatie Intel Core / Pentium Gold / Celeron)
Ondersteund RAM
Maximale grootte
96 GB
Technologie
DDR5
Busklok
7200 MHz (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC, ECC (werkt in non-ECC-modus)
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, ondersteunde ECC-modules werken in niet-ECC-modus, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC897
Conformiteitsnormen
High Definition Audio
LAN
Netwerk Controller
Realtek RTL8125BG
Netwerk interfaces
2.5 Gigabit Ethernet
Uitbreiding / Aansluiting
Uitbreidingssleuven
1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2-sleutel E-sleuf)
1 x M.2 socket (2260/2280 M.2-sleutel met M-sleuf)
1 x M.2 socket (2280 M.2-sleutel met M-sleuf)
2 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2-sleutel E-sleuf)
1 x M.2 socket (2260/2280 M.2-sleutel met M-sleuf)
1 x M.2 socket (2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 4 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -aansluitingen: 1 x Hyper M.2
PCIe 3.0 -aansluitingen: 1 x Ultra M.2
PCIe 4.0 -aansluitingen: 1 x Hyper M.2
PCIe 3.0 -aansluitingen: 1 x Ultra M.2
Interfaces
1 x VGA
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x microfoon - ministekker
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x microfoon - ministekker
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
Interne interfaces
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x SPI - header
1 x luidspreker - header
1 x audio - header
4 x USB 2.0 - header
1 x SPI - header
1 x luidspreker - header
1 x audio - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector
Functies
BIOS-type
AMI
BIOS-functies
UEFI BIOS
Hardwarefuncties
7+1+1 fase voedingsontwerp, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Easy RAID Installer, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology, ESD Protection, ASRock Polychrome RGB
Diversen
Meegeleverde accessoires
IO-scherm, 3 x M.2 schroeven
Kabels meegeleverd
2 x Seriële ATA-kabel
Software meegeleverd
ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Conformiteitsnormen
FCC, ErP Ready, EuP Ready, RoHS, UKCA, HDCP 2.3
Breedte
24.4 cm
Diepte
20.1 cm
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
