Productnummer: 3423308

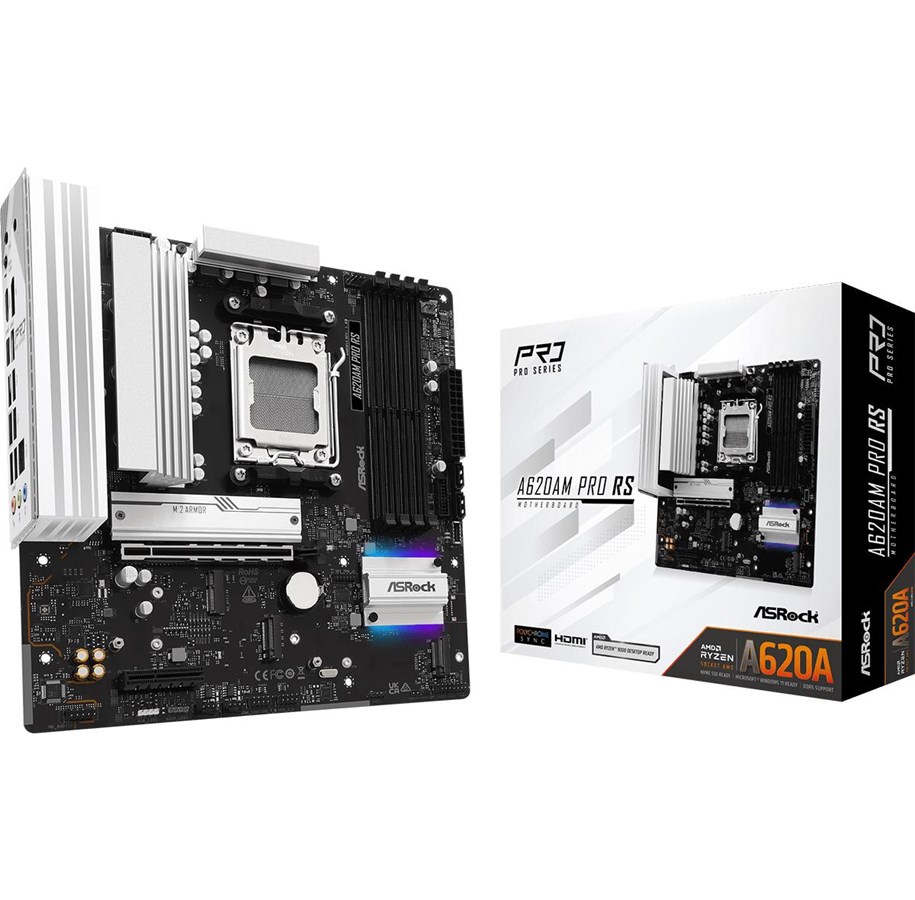

ASRock A620AM Pro RS Moederbord - AMD A620A - AMD AM5 - DDR5 RAM - Micro-ATX
Moederbord, maat: Micro-ATX, AMD AM5 socket, AMD A620A chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), opslagpoorten: 2 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A & C, monitor verbinding: 1 x Displayport 1.4 / 1 x HDMI 2.1, Dragon RTL8125BG 2.5 Gigabit netwerk (LAN), AMD Graphics ondersteund (CPU met VGA vereist), Realtek ALC897 HD Audio (8-kanalen) geluidskaart, ASRock Polychrome SYNC software
Op voorraad
Normale prijs 95,00 €
90,73 €
74,98 € excl. BTW
Deze bundel bevat
Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk
Waarde 39,99 €Goedkoopste privé verzending 6,99 €
1 stks
Op voorraad - 2-3 werkdagen levertijd
The ASRock A620AM-X motherboard elevates desktop performance with robust features tailored for the Ryzen series. Offering a micro ATX form factor, it supports AMD's A620A chipset and is compatible with Ryzen 7000, 8000, and 9000 series processors. With dual-channel memory architecture and support for DDR5 SDRAM at speeds of up to 8000 MT/s when overclocked, it provides efficient data processing capabilities.
Equipped with ample connectivity options, the A620AM-X features both USB 3.2 Gen 1 and USB-C 3.2 Gen 1 ports for quick data transfers. Networking is seamless with a built-in 2.5 Gigabit Ethernet controller, ensuring fast and stable Internet connectivity. The motherboard also includes multiple M.2 slots and SATA ports for expanded storage configurations, catering to diverse user needs. Experience enhanced audio performance with high definition audio capabilities delivered through the Realtek ALC897 codec.
Equipped with ample connectivity options, the A620AM-X features both USB 3.2 Gen 1 and USB-C 3.2 Gen 1 ports for quick data transfers. Networking is seamless with a built-in 2.5 Gigabit Ethernet controller, ensuring fast and stable Internet connectivity. The motherboard also includes multiple M.2 slots and SATA ports for expanded storage configurations, catering to diverse user needs. Experience enhanced audio performance with high definition audio capabilities delivered through the Realtek ALC897 codec.
Producent
Productnummer
3423308
Model
90-MXBSV0-A0UAYZ
EAN
4711581490949
Naar de website van de producent
Productbeschrijving
ASRock A620AM PRO RS - moederbord - micro ATX - Socket AM5 - AMD A620A
Producttype
Moederbord - micro ATX
Chipsettype
AMD A620A
Processor Socket
1 x Socket AM5
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Max RAM-grootte
256 GB
Ondersteund RAM
4 DIMM-sleuven - DDR5, niet-ECC, niet-gebufferd
Opslagpoorten
2 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Ultra M.2
USB- / FireWire-poorten
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-kanaals)
LAN
2.5 Gigabit Ethernet
Algemeen
Producttype
Moederbord - micro ATX
Chipsettype
AMD A620A
Processor Socket
Socket AM5
Max aantal processors
1
Compatibele processoren
Ryzen (ondersteunt Ryzen 7000/8000/9000 Series)
Ondersteund RAM
Maximale grootte
256 GB
Technologie
DDR5
Busklok
7200 MT/s (O.C.)
Ondersteunde RAM-integriteitscontrole
Niet-ECC
Geregistreerd of Gebufferd
Niet-gebufferd
Functies
Dubbelkanaals geheugenarchitectuur, AMD EXPO-technologie, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-kanaals)
Audio Codec
Realtek ALC897
Conformiteitsnormen
High Definition Audio
LAN
Netwerk Controller
Dragon RTL8125BG
Netwerk interfaces
2.5 Gigabit Ethernet
Uitbreiding / Aansluiting
Uitbreidingssleuven
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x2-modus)
1 x M.2 socket (2230 M.2-sleutel E-sleuf)
3 x M.2 socket (2260/2280 M.2-sleutel met M-sleuf)
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x2-modus)
1 x M.2 socket (2230 M.2-sleutel E-sleuf)
3 x M.2 socket (2260/2280 M.2-sleutel met M-sleuf)
Storage Interfaces
SATA-600 -aansluitingen: 2 x 7-pins seriële ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -aansluitingen: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 3.0 -aansluitingen: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -aansluitingen: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 3.0 -aansluitingen: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audiolijningang - ministekker
1 x audiolijnuitgang - ministekker
1 x microfoon - ministekker
Interne interfaces
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x SPI - header
1 x USB-C 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x SPI - header
1 x USB-C 3.2 Gen 1 - header
Stroomconnectoren
24-pins hoofdstroomconnector, 8-pins ATX12V connector
Functies
BIOS-type
AMI
BIOS-functies
UEFI BIOS
Hardwarefuncties
6+2+1 Phase Power Design, vooraf gemonteerde I/O-afscherming, BIOS FlashBack-knop, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Hi-Density Power Connectors, Dr.MOS MOSFET, 6 Layer PCB, aluminium warmteafvoerontwerp, Nahimic Audio Enhacer, ASRock Polychrome RGB
Diversen
Meegeleverde accessoires
2 x ASRock WiFi 2.4/5/6 GHz Antennas, 4 x M.2 schroeven, afstandhouder voor M.2-sokkel
Kabels meegeleverd
2 x Seriële ATA-kabel
Software meegeleverd
ASRock A-Tuning, ASRock Polychrome SYNC
Conformiteitsnormen
ErP Ready, EuP Ready, FCC
Breedte
24.4 cm
Diepte
24.4 cm
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
