Productnummer: 2973852

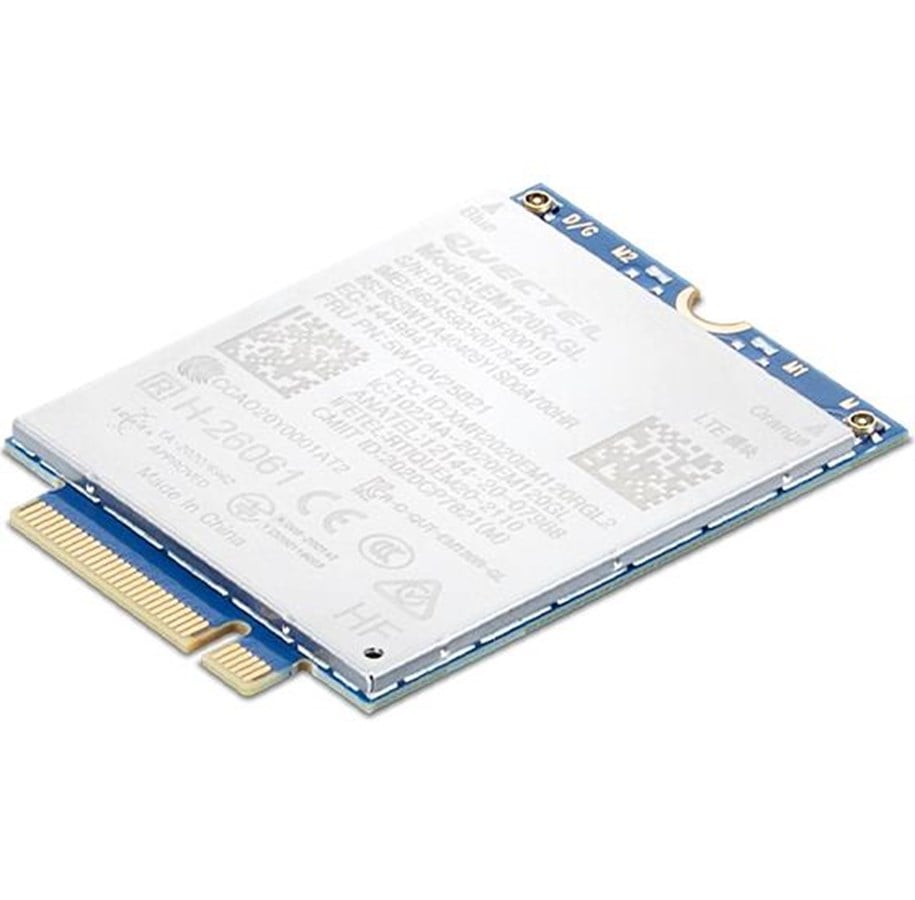

Lenovo ThinkPad Quectel SDX24 EM120R-GL - 4G LTE - M.2

Draadloze mobiele modem, 4G LTE Advanced, M.2 Card, 600 Mbps, voor (WWAN-ready): ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6; L15 Gen 2 20X3, 20X4, 20X7; P14s Gen 2 20VX, 20VY, 21A0; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1, 20XL; T14s Gen 2 20WM, 20WN; T15 Gen 2 20W4, 20W5; X1 Yoga Gen 6 20XY, 20Y0; X13 Gen 2 20WK, 20WL; X13 Yoga Gen 2 20W8, 20W9

Lees meer
150,81 € 124,64 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

EM120R-GL is an LTE-A category 12 module in an M.2 form factor designed in accordance with the 3GPP Release 14 specification which supports maximum downlink rates of 600 Mbps and uplink rates of 150 Mbps.

EM120R-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo) and integrated GNSS greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/built-in eSIM (optional) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, consumer and industrial laptops, industrial PDAs, rugged tablet PCs, and digital signage.

Producent
Productnummer
2973852
Model
4XC1D51447
EAN
195892020929
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Quectel EM120R-GL - draadloze mobiele modem - 4G LTE Advanced
Type apparaat
Draadloze mobiele modem - M.2 Card
Vormfactor
Intern
Max. overdrachtsnelheid
600 Mbps
Mobiele protocol
UMTS, WCDMA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE
Frequentieband mobiele telefoon
W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8
Afmetingen (BxDxH)
4.2 cm x 3 cm x 0.23 cm
Gewicht
6.8 g
Ontworpen voor
(WWAN-ready): ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6; L15 Gen 2 20X3, 20X4, 20X7; P14s Gen 2 20VX, 20VY, 21A0; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1, 20XL; T14s Gen 2 20WM, 20WN; T15 Gen 2 20W4, 20W5; X1 Yoga Gen 6 20XY, 20Y0; X13 Gen 2 20WK, 20WL; X13 Yoga Gen 2 20W8, 20W9

Algemeen

Type apparaat
Draadloze mobiele modem
Vormfactor
Intern

Modem

Bus
M.2 Card
Connectiviteit
Draadloos
Max. overdrachtsnelheid
600 Mbps
Frequentieband mobiele telefoon
W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8
Mobiele protocol
UMTS, WCDMA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE
Voorzieningen
Dubbele sim enkele stand-by, ondersteunt 1,8/3,0 V (U)SIM-kaart

Diversen

Ondersteunde SIM-kaart
Dubbele simkaart (eSIM en nanosim)
Conformiteitsnormen
WHQL, JATE, CCC, IC, FCC, ANATEL, TELEC, PTCRB, GCF, KC, SRRC, NCC, RCM, ICASA, NAL, IFETEL

Afmetingen & gewicht

Breedte
4.2 cm
Diepte
3 cm
Hoogte
0.23 cm
Gewicht
6.8 g

Omgevingsparameters

Min. gebruikstemperatuur
-25 °C
Max. gebruikstemperatuur
75 °C

Informatie over Compatibiliteit

Ontworpen voor
(WWAN-ready):
Lenovo ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6
Lenovo ThinkPad L15 Gen 2 20X3, 20X4, 20X7
Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0
Lenovo ThinkPad P15s Gen 2 20W6, 20W7
Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XL
Lenovo ThinkPad T14s Gen 2 20WM, 20WN
Lenovo ThinkPad T15 Gen 2 20W4, 20W5
Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0
Lenovo ThinkPad X13 Gen 2 20WK, 20WL
Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
