Schneider Electric Controller 8 input 2x2 output Schroef term

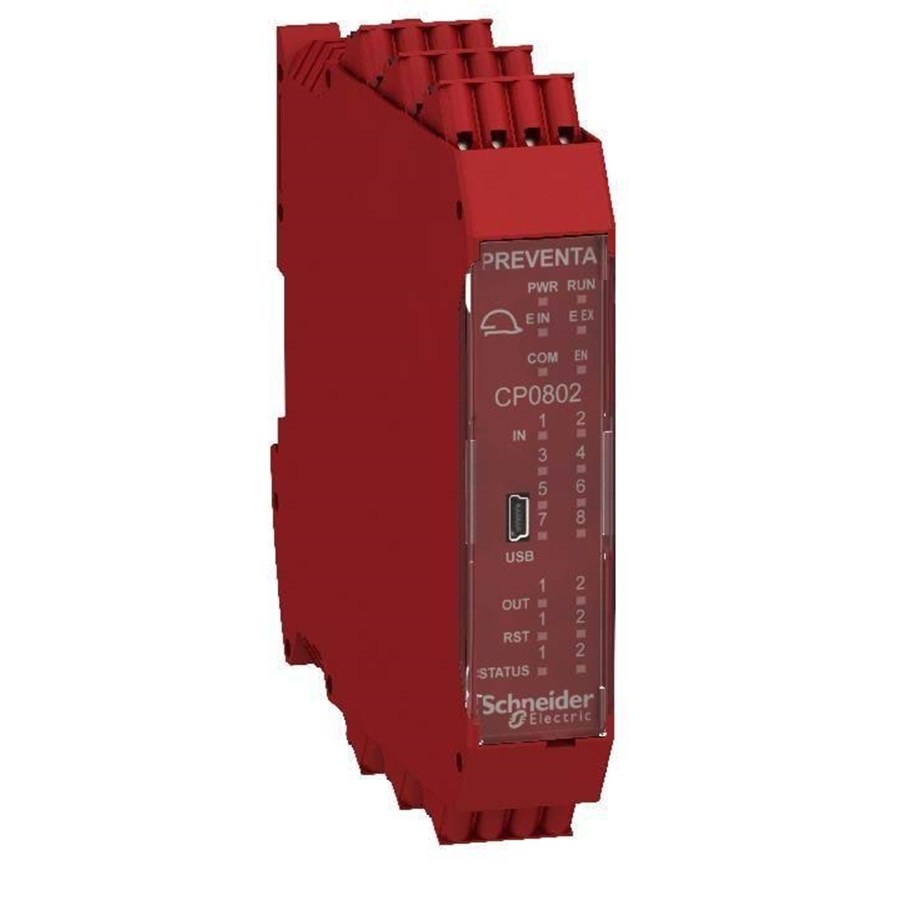

Preventa Modular Safety Controller, XPSMCM
The Preventa modular safety controller XPSMCM is designed to monitor a safety configuration and can be configured using the software SoSafe Configurable. The safety controller CPU is also usable as a standalone device or able to be connected to any of the expansion units of the XPSMCM system. These include I/O expansion, relay output, communication expansion, speed monitoring and non-safe fieldbus communication modules. It has a compact designed, 22.5 x 99 x 114.5 mm, the same size as a typical safety relay.
Features and Benefits
Optional configuration memory card (stock no.
111-3519
sold separately)
Log file containing the last 5 configuration modifications in chronological order, with date of modification
24 terminals compact red housing, 22.5 x 99 x 114.5 mm
Connection with other expansion modules via the expansion bus connector (stock no.
111-3503
, sold separately)
Mini USB 2.0 connector for configuration
8 safety digital inputs
2 OSSD pairs with 400 mA output current
4 test outputs for line control monitoring of input circuits
2 inputs for Start/Restart interlock and external device monitoring (EDM)
2 configurable status outputs
SILCL 3 conforming to IEC 62061
Type 4 conforming to EN/IEC 61496-1
Can reach PLe conforming to EN/ISO 13849-1
Can reach category 4 conforming to EN/ISO 13849-1
Green Premium Product
RoHS compliant
Application Information
The XPSMCM is suitable for speed monitoring, enabling switches, safety mats, two-hand control, magnetic switches, foot switches, light curtains and E-stops.
Standards
EN/IEC 61496-1, EN/IEC 61508, EN/IEC 61800-5-1, EN/ISO 13849-1, IEC 62061.
Approvals
CE, cULus, TUV.
