Productnummer: 2844583
Akyga Zasilacz uniwersalny AK-NU-12 do notebooka (
Netspanningsadapter, 110-240 V wisselstroom V, 65 watt, zwart
13,78 €
11,39 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

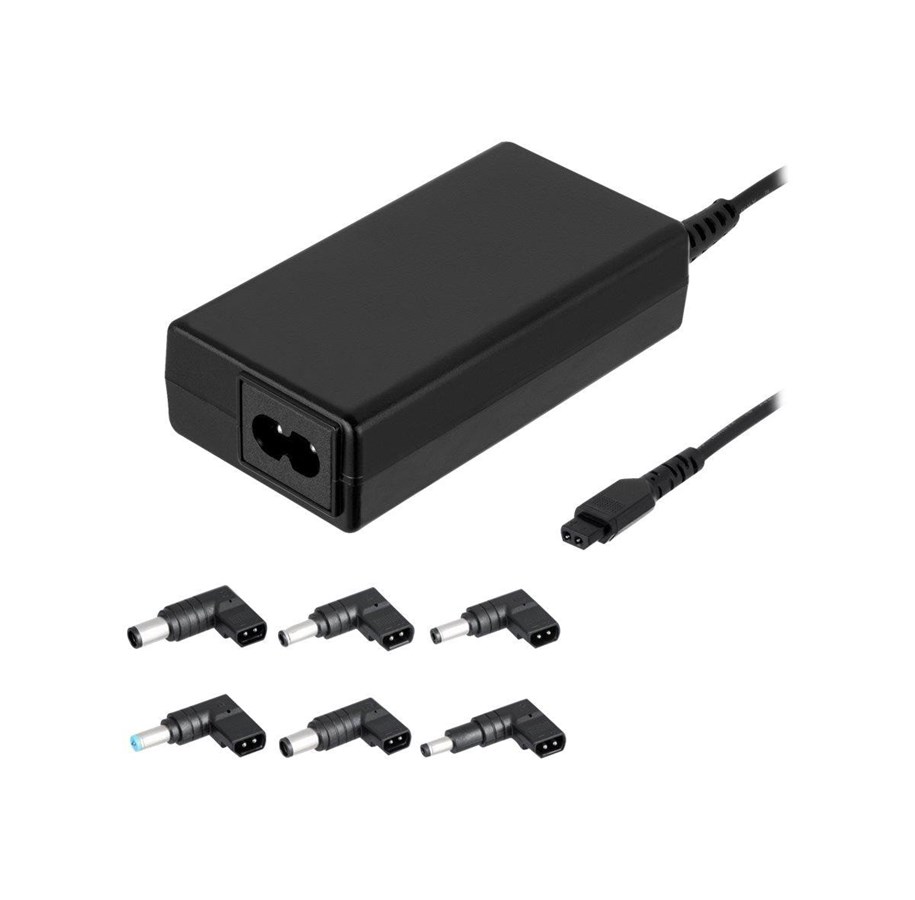

Akyga AK-NU-12 is a universal power supply for various types of notebooks powered in the range of 18.5V / 19V / 19.5V / 20V and maximum 65W, holding a set of 6 different interchangeable plugs. Plugs differ from each other in inner and outer dimensions and presence of the pin. This kind of solution is particularly recommended for people who want to supply various models of laptops of different brands, without buying and carrying many different power supplies. If needed, to match the power supply to a completely different range of products, all you have to do is only change the plug.The output voltage is adjusted automatically after connecting the selected plug. The cord of the power adapter is equipped with a high-quality ferrite core that prevents and protects devices from any possible mode currents and high frequency noise. A set of protectors (OVP, OTP, OPP, SCP and OCP) guarantees fully secure, stable work of both powered device and the power supply. Additional safety for the equipment is provided by the soft start technology, which neutralizes the shock of the first stroke of current during the device startup.
Producent
Productnummer
2844583
Model
AK-NU-12
EAN
5901720134905
Naar de website van de producent
Productbeschrijving
Akyga Universal Series AK-NU-12 - netspanningsadapter - 65 watt
Type apparaat
Netspanningsadapter - extern
Gewicht
322.5 g
Input Voltage
110-240 V wisselstroom V
Output Voltage
18.5 / 19 / 19.5 / 20 V
Stroomcapaciteit
65 watt
Invoerconnectors
1 x voeding IEC 60320 C8
Uitgangsaansluitingen
1 x voeding gelijkspanningsstekker 7,4 mm (ID: 5 mm)
1 x gelijkspanningsuitgang 5,5 mm (ID: 3,0 mm) - 19 V
1 x voeding gelijkspanningsuitgang 5,5 mm (ID: 2,5 mm) - 19 V
1 x gelijkspanningsuitgang 5,5 mm (ID: 1,7 mm)
1 x voeding gelijkspanningsstekker 7,4 mm (ID: 5 mm) - 19.5 V
1 x gelijkspanningsuitgang 4,8 mm (ID: 1,7 mm)
1 x gelijkspanningsuitgang 5,5 mm (ID: 3,0 mm) - 19 V
1 x voeding gelijkspanningsuitgang 5,5 mm (ID: 2,5 mm) - 19 V
1 x gelijkspanningsuitgang 5,5 mm (ID: 1,7 mm)
1 x voeding gelijkspanningsstekker 7,4 mm (ID: 5 mm) - 19.5 V
1 x gelijkspanningsuitgang 4,8 mm (ID: 1,7 mm)
Meegeleverde accessoires
6 stroomverbinders voor notebook
Kleur
Zwart
Afmetingen (BxDxH)
4.9 cm x 9.5 cm x 2.7 cm
Algemeen
Type apparaat
Netspanningsadapter - extern
Kleur
Zwart
Voeding
Input Voltage
110-240 V wisselstroom V
Vereiste frequentie
50/60 Hz
Invoerconnectors
1 x voeding IEC 60320 C8
Stroomuitgang Connector Details
1 x voeding gelijkspanningsstekker 7,4 mm (ID: 5 mm)
1 x gelijkspanningsuitgang 5,5 mm (ID: 3,0 mm) - 19 V
1 x voeding gelijkspanningsuitgang 5,5 mm (ID: 2,5 mm) - 19 V
1 x gelijkspanningsuitgang 5,5 mm (ID: 1,7 mm)
1 x voeding gelijkspanningsstekker 7,4 mm (ID: 5 mm) - 19.5 V
1 x gelijkspanningsuitgang 4,8 mm (ID: 1,7 mm)
1 x gelijkspanningsuitgang 5,5 mm (ID: 3,0 mm) - 19 V
1 x voeding gelijkspanningsuitgang 5,5 mm (ID: 2,5 mm) - 19 V
1 x gelijkspanningsuitgang 5,5 mm (ID: 1,7 mm)
1 x voeding gelijkspanningsstekker 7,4 mm (ID: 5 mm) - 19.5 V
1 x gelijkspanningsuitgang 4,8 mm (ID: 1,7 mm)
Output Voltage
18.5 / 19 / 19.5 / 20 V
Maximum elektrische stroom
3.5 A
Stroomcapaciteit
65 watt
Efficiëntie
80%+
Diversen
Meegeleverde accessoires
6 stroomverbinders voor notebook
Kabels meegeleverd
Voedingskabel - geïntegreerd - 1.5 m
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Functies
EcoBox-pakket, voltagebeschermer, bescherming tegen oververhitting, bescherming tegen te hoog voltage, kortsluitingsbeveiliging, overbelastingsbescherming, Soft Start Technology (SST), Automatic Voltage Regulation (AVR)
Conformiteitsnormen
FCC, RoHS, REACH
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
50 °C
Afmetingen & gewicht
Breedte
4.9 cm
Diepte
9.5 cm
Hoogte
2.7 cm
Gewicht
322.5 g
Afmetingen & gewicht (transport)
Verzendbreedte
9.2 cm
Verzenddiepte
19 cm
Verzendhoogte
3.8 cm
Verzendgewicht
371.5 g
