Productnummer: 2893759

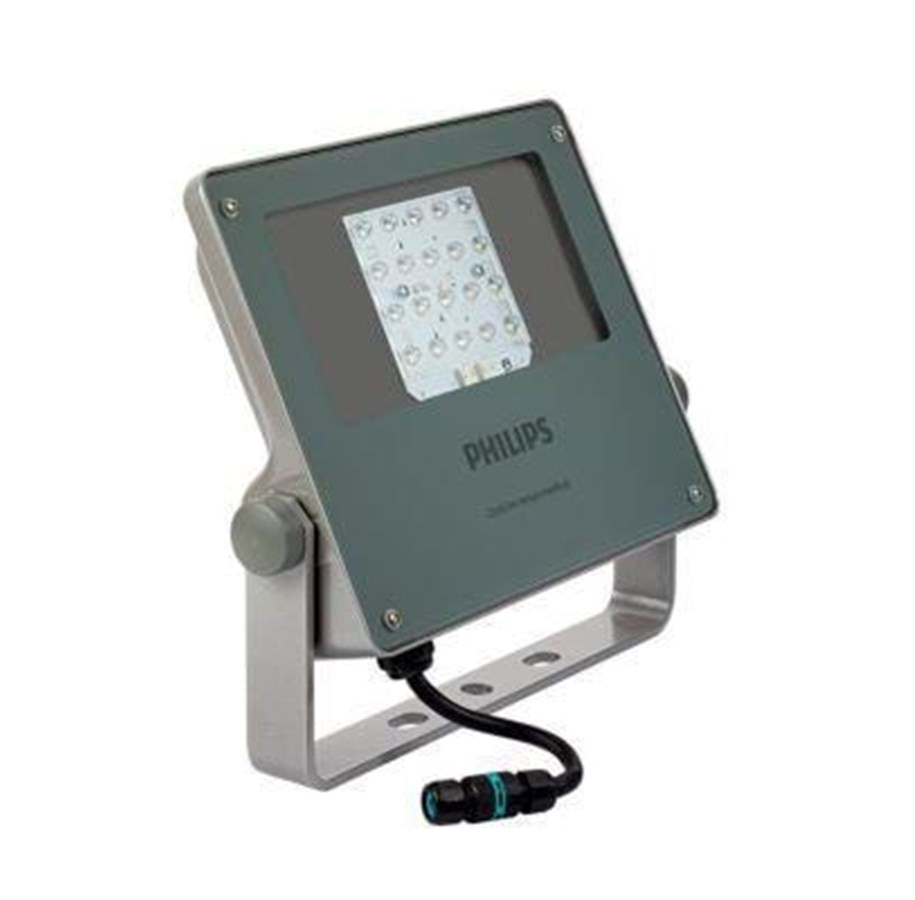

Philips Coreline tempo medium bvp125 63w 8000lm 740 asymmetric

CoreLine tempo medium is a highly efficient range of floodlights, designed for 1:1 retrofit replacement of conventional technology, while retaining the same electrical installation and poles. A limited rangeof options makes it easy to find the best lux-for- lux replacement.The easy-to-install CoreLine tempo medium offers lumen packages for many different application areas as well as a choice of high-performance asymmetrical and symmetrical optics. It includes aU-shaped universal mounting bracket and external quick 3-poles IP68connector.Benefits- Fast payback: energy savings of 65%- Low maintenance thanks to the long lifetime of the luminaire- Simple to install and connect- Robust, high-quality finishApplication- Areas and recreational sports facilities- Building facades- Billboards

374,88 € 309,82 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

Producent
Productnummer
2893759
Model
912300024002
EAN
8718699455880
Naar de website van de producent
Neem contact op met de fabrikant
Kleur van het product
Grijs
Internationale veiligheidscode (IP)
IP66
Materiaal behuizing
Aluminium
Beschermingsklasse
I
IK code
IK08
Snoerlengte
0,45 m
Ondersteuning voor plaatsing
Horizontaal
Kleur kabel
Zwart
Power factor
0,94
Dimbaar
Nee
Aantal GearUnits
1
Certificering
CE, ENEC
Lamptechnologie
LED
Kleur licht
Neutraal wit
Kleurtemperatuur
4000 K
Lichtstroom
8000 lm
Stralingshoek
102°
Lichtrendement
133 lm/W
Color Rendering Index (CRI)
70
Type lamp
LED
Lampfamiliecode
LED80
Inschakeltijd
0,3 ms
Compatibele types lampen
LED
Vermogen
63 W
Ingangsspanning
220 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
AC-ingangsspanning
220 - 240 V
Inschakelstroom
53 A
Omgevingstemperatuur (max)
35 °C
Omgevingstemperatuur (min)
-40 °C
Breedte
389 mm
Diepte
67 mm
Hoogte
323 mm
Gewicht
4,75 kg
Faalpercentage bij 5000 u
0,12 procent
Initieel ledlichtrendement
133 lm/W
Capaciteitstolerantie
11 procent
Lichtstroomtolerantie
7 procent
Effectief geprojecteerd gebied (EPA)
0,09 m²
Upward light output ratio
0
Certificaten van naleving
RoHS
Productfamiliecode
BVP125
Type lichtkap/lens
Plat glas
Materiaal lichtkap/lens
Glas
Volledige productnaam
BVP125 LED80-4S/740 A
Levensduur (L80B10)
70000 uur
12 NC logistieke code(s)
912300024002
Inclusief driver
Ja
Energie-efficiëntieklassen compatibele lamp (oud)
A, A+, A++
Aantal per verpakking
1 stuk(s)

Kenmerken

Kleur van het product
Grijs
Internationale veiligheidscode (IP)
IP66
Materiaal behuizing
Aluminium
Beschermingsklasse
I
IK code
IK08
Snoerlengte
0,45 m
Ondersteuning voor plaatsing
Horizontaal
Kleur kabel
Zwart
Power factor
0,94
Dimbaar
Nee
Aantal GearUnits
1
Certificering
CE, ENEC

Lampen

Lamptechnologie
LED
Kleur licht
Neutraal wit
Kleurtemperatuur
4000 K
Lichtstroom
8000 lm
Stralingshoek
102°
Lichtrendement
133 lm/W
Color Rendering Index (CRI)
70
Type lamp
LED
Lampfamiliecode
LED80
Inschakeltijd
0,3 ms
Compatibele types lampen
LED

Energie

Vermogen
63 W
Ingangsspanning
220 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
AC-ingangsspanning
220 - 240 V
Inschakelstroom
53 A

Eisen aan de omgeving

Omgevingstemperatuur (max)
35 °C
Omgevingstemperatuur (min)
-40 °C

Gewicht en omvang

Breedte
389 mm
Diepte
67 mm
Hoogte
323 mm
Gewicht
4,75 kg

Technische details

Faalpercentage bij 5000 u
0,12 procent
Initieel ledlichtrendement
133 lm/W
Capaciteitstolerantie
11 procent
Lichtstroomtolerantie
7 procent
Effectief geprojecteerd gebied (EPA)
0,09 m²
Upward light output ratio
0
Certificaten van naleving
RoHS
Productfamiliecode
BVP125
Type lichtkap/lens
Plat glas
Materiaal lichtkap/lens
Glas
Volledige productnaam
BVP125 LED80-4S/740 A
Levensduur (L80B10)
70000 uur

Logistieke gegevens

12 NC logistieke code(s)
912300024002

Inhoud van de verpakking

Inclusief driver
Ja

Overige specificaties

Energie-efficiëntieklassen compatibele lamp (oud)
A, A+, A++

Verpakking

Aantal per verpakking
1 stuk(s)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
