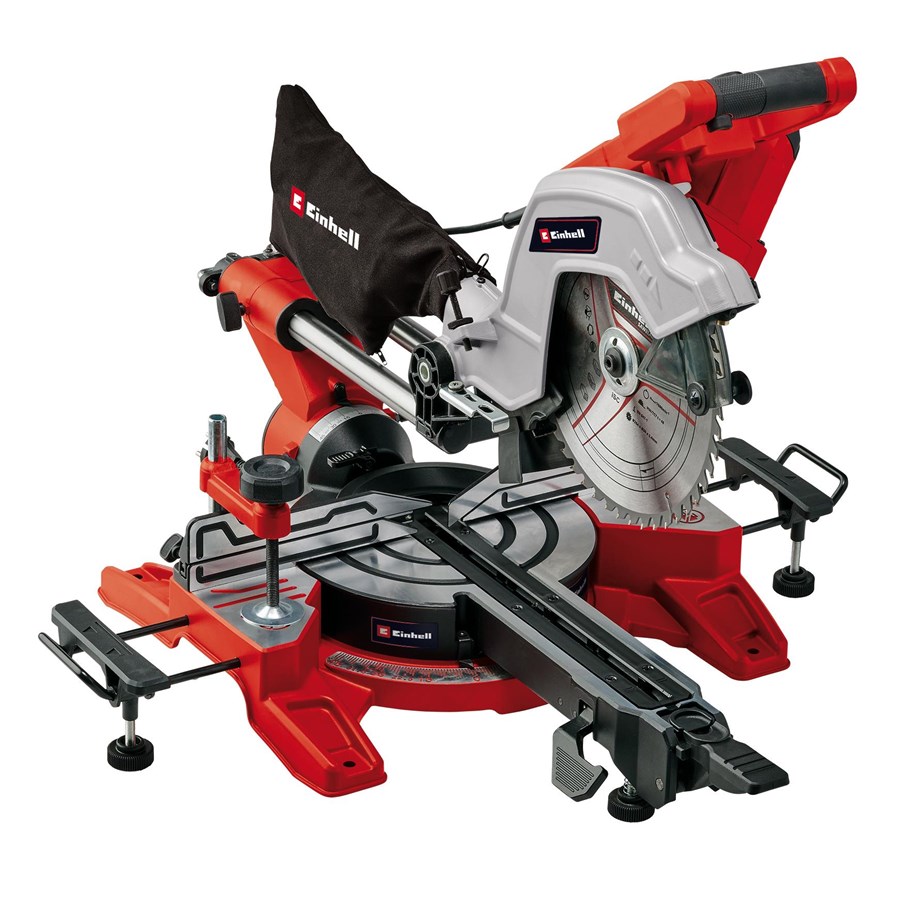

Einhell Sliding Mitre Saw TE-SM 10 L Dual
This mitre saw is the ideal choice for any DIY enthusiast. The powerful 2,100 W motor drives the robust Ø 254 mm carbide saw blade with 48 teeth quickly and precisely through the material.
The pull function provides a maximum cutting width of 305 mm and a cutting depth of up to 85 mm. The saw table can be rotated 47° to both the left and right, and the saw head can be tilted 45° to both sides, enabling precise mitre cuts.
An integrated laser and depth stop make work easier, while the chip collection funnel and extraction connection (Ø 36 mm) ensure a clean workplace.
Features and Benefits
- Special mounted traction function with excellent gliding qualities
- Smooth-running saw head joint mechanism for fatigue-free sawing
- Turntable with snap-in positions at the most common angles
- Easy angle setting on the rotary table by quick adjustment
- Clearly visible laser for precise cutting lines
- Saw head can be tilted to the left and right for mitre cuts
- Table extensions on both sides for longer workpieces
- High-quality saw blade for perfect cutting results
- Easy-to-reach spindle lock for simple saw blade changes
- Clearly visible and readable angle scales
- Incl. clamping device to fix the workpiece in place
- Chip collector behind the saw blade for a clean workplace
- Incl. suction connection (Ø 36 mm)
Technical Specifications
- Mains supply: 220–240 V | 50 Hz
- Power: 1,800 W (max. 2,100 W at 25% load)
- Idle speed: 4,800 rpm
- Saw blade: 254 x 30 mm, 48 teeth
- Mitre cut: -45° to +45°
- Swiveling range: -47° to +47°
Cutting Capacity
- 90° x 90°: 305 x 85 mm
- 90° x 45°: 215 x 85 mm
- 45° x 90°: 305 x 45 mm
- 45° x 45°: 215 x 45 mm
Connection
- Diameter of suction adapter: 36 mm
