Productnummer: 3423136

Lindy - transmitter and receiver - video/audio/infrared/serial extender - HDBaseT 2.0

Zender en ontvanger, video/audio/infrarode/seriële uitbreider, HDBaseT 2.0, maximaal 100 m

1.131,68 € 935,27 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Inclusief oplader
Charger included

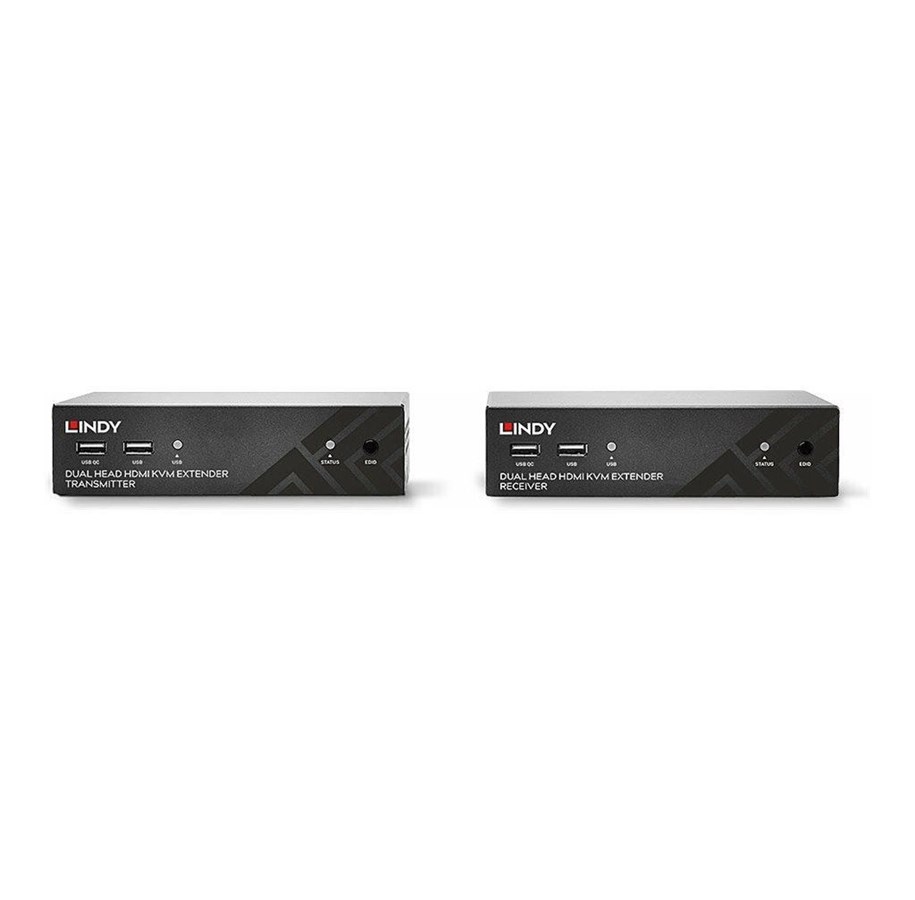

The Lindy 100 m Cat.6 Dual Head HDMI, USB and RS-232 KVM Extender is a powerful, versatile solution for extending and controlling a dual head workstation up to distances of 100 m (328.08 feet) over a single Cat.6 cable using HDBaseT. It's utilization of the HDBaseT 2.0 specification allows for the transmission of audio, video and various control methods with just one connection between the transmitter and receiver units. The use of two HDMI displays at resolutions up to 1920 x 1080 @ 60 Hz and USB HID's in a convenient remote location creates a super effective productivity console. This gives users the ability to fully operate a high-performance PC which is stored in a convenient location, helping to meet the requirements of modern offices as multiple applications can be open and sharing data simultaneously. Up to 7.1 Digital and Stereo analog can be passed through from the source to standalone amplifiers, speakers and headphones to ensure any relevant audible information or data is understood by the user.Serial and Bi-directional IR add to this extender's comprehensive suite of control methods. Source and display devices can be controlled at either point of a configuration using an IR remote control, whilst serial input and control devices can be used at the remote console. In applications which rely heavily on the uptime of source devices such as medical environments or manufacturing, the Lindy 100 m Cat.6 Dual Head KVM extender can be used to ensure PCs or servers can be locked in a secure location to prevent any unauthorized access or tampering of equipment and protect them from major power outages, fires or water leaks. It's reliable HDBaseT connection means users can be confident that control will always be maintained over the source device even in the most demanding environments.

Producent
Productnummer
3423136
Model
39374
EAN
4002888393744
Naar de website van de producent
Productbeschrijving
LINDY - zender en ontvanger - video/audio/infrarode/seriële uitbreider - HDBaseT 2.0
Type apparaat
Video/audio/infrarode/seriële uitbreider
Model
Extern
Lokalisatie
Europa, Verenigd Koninkrijk, Verenigde Staten, Australië
Gegevensoverdrachtsnelheid
8.92 Gbps
Protocol voor gegevenskoppeling
HDBaseT 2.0
Max. overdrachtsafstand
100 m

Algemeen

Type apparaat
Video/audio/infrarode/seriële uitbreider
Model
Extern
Kleur
Zwart
Lokalisatie
Europa, Verenigd Koninkrijk, Verenigde Staten, Australië

Netwerk

Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
HDBaseT 2.0
Gegevensoverdrachtsnelheid
8.92 Gbps
Max. resolutie
1920 x 1080 @ 60 Hz
Max. overdrachtsafstand
100 m
Statuslampjes
USB, status
Voorzieningen
7.1 kanaalaudio-ondersteuning, metalen behuizing, EDID-kopieerknop
Conformiteitsnormen
HDCP 1.4

Uitbreiding / Aansluiting

Interfaces
2 x HDMI
4 x USB - Type A
1 x RS-232 (bi-directioneel) - DB-9
1 x IR (uitgang) - mini jack
1 x IR (ingang) - mini jack
1 x SPDIF - TOSLINK
1 x audiolijnuitgang - mini jack
1 x microfoon - mini jack
1 x mini-USB - Type B

Diversen

Bijgeleverde accessoires
8 rubberen voetjes
Kabels meegeleverd
1 x mini-USB naar USB-kabel - 1 m
2 x IR ontvangerkabel - 1.5 m
2 x IR-zenderkabel - 1.5 m
Conformiteitsnormen
RoHS, REACH, FCC Part 15 B, WEEE

Stroom

Voeding
Externe stroomadapter
Aantal geïnstalleerd
2
Max. aantal ondersteund
2

Afmetingen & gewicht

Afmetingen (BxDxH) / gewicht
Zender: 15.6 cm x 13 cm x 4.2 cm / 720 g
Ontvanger: 15.6 cm x 13 cm x 4.2 cm / 720 g

Afmetingen & gewicht (transport)

Verzendbreedte
47 cm
Verzenddiepte
22 cm
Verzendhoogte
6.7 cm
Verzendgewicht
2.5 kg

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
65 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% (niet condenserend)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
