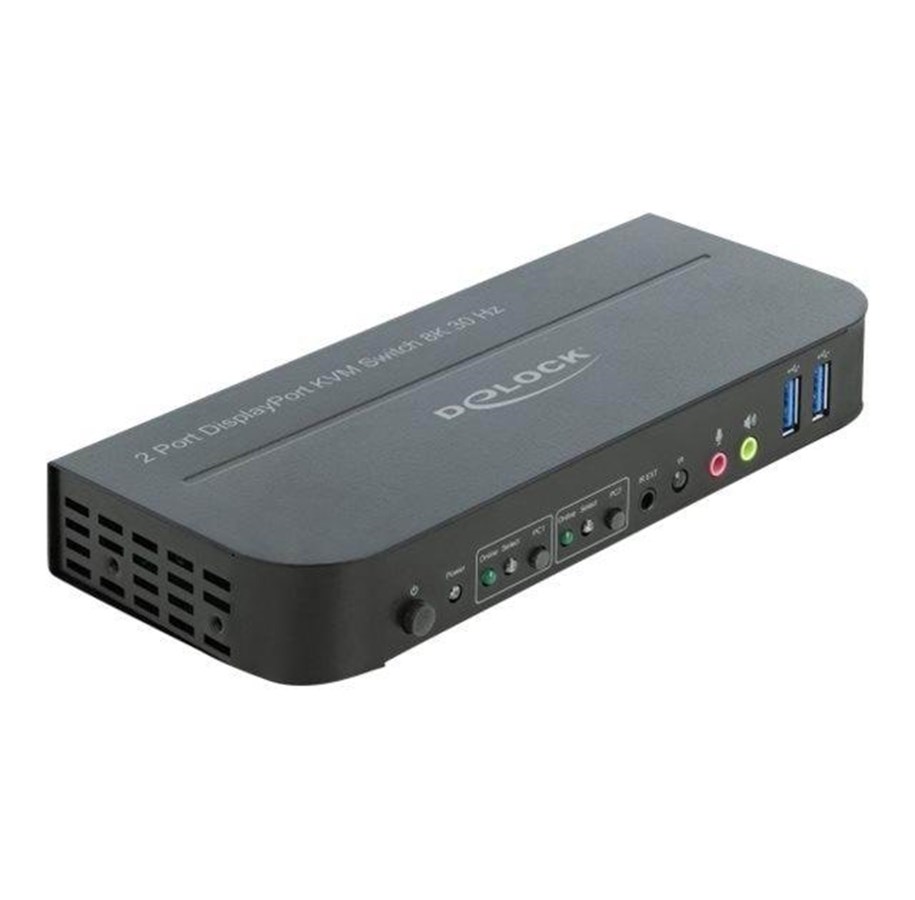

DeLOCK KVM Switch

This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to one DisplayPort monitor.AdditionallyThere is an HDMI output for connection of two monitors, of which only one can be active at a time.Peripheral devices Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.



Connectors: Input: 2 x DisplayPort female 2 x USB 3.0 Type-B female 4 x 3.5 mm 3 pin stereo jack female (audio) 1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver 1 x DC 5 V power connector

Switching via button, mouse button, hotkey or infrared remote control

Automatic switching when turning a PC on or off

Supports HDCP 1.4 and 2.2

Supports HDR

Supports MST (Multi-Stream Transport)

Resolution up to: DisplayPort output: 7680 x 4320 @ 30 Hz 3840 x 2160 @ 120 Hz (SDR) 3840 x 2160 @ 60 Hz (HDR) HDMI output: 3840 x 2160 @ 60 Hz

Robust metal housing

Colour: black

Dimensions (LxWxH): ca. 178 x 75 x 26 mm Power supply specification
