Productnummer: 2264119

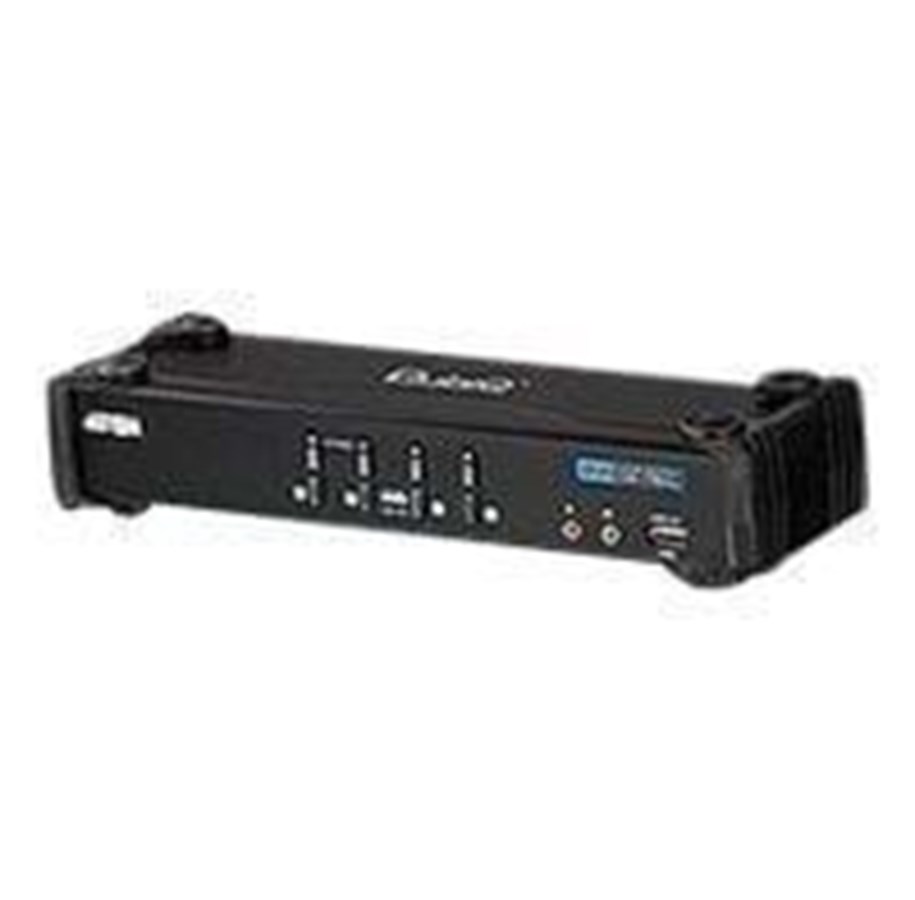

ATEN CubiQ CS1764A - KVM / audio-switch - 4 poorten

KVM/audio switch, USB, 4 x KVM/audio, 1 local user, desktop. Includes 4 cables (1.8m)

214,28 € 177,09 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd

The CubiQ CS1764A USB 2.0 DVI KVMP switch erases a new path in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub while also providing an interface for a digital monitor (DVI). Additionally, the CS1764A includes ATEN's Video DynaSync technology which optimizes display resolution and power on detection that automatically switches to the next powered-on computer if one is turned off. As a KVM switch, it allows users to access four computers from one USB keyboard, USB mouse and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on 'one computer at a time' basis.

Producent
Productnummer
2264119
Model
CS1764A
EAN
4710423773073
Naar de website van de producent
Productbeschrijving
ATEN CubiQ CS1764A - KVM / audioschakelaar - 4 poorten
Type apparaat
KVM / audioschakelaar - 4 poorten
Subtype
KVM
Poorten
4 x KVM / audio
Aantal KVM-gebruikers
1 lokale gebruiker
Voorzieningen
Firmware die kan worden opgewaardeerd, in overeenstemming met de HDCP-norm, Video DynaSync
Afmetingen (BxDxH)
27 cm x 8.7 cm x 5.5 cm
Gewicht
0.94 kg

Algemeen

Type apparaat
KVM / audioschakelaar - 4 poorten
Type bijvoegsel
Desktop
Subtype
KVM
Poorten
4 x KVM / audio
Aantal lokale KVM-gebruikers
1 lokale gebruiker
Toetsenbord / Muisinterface
USB
Max. resolutie
1920 x 1080 @ 60 Hz
Voorzieningen
Firmware die kan worden opgewaardeerd, in overeenstemming met de HDCP-norm, Video DynaSync
Ingebouwde apparaten
USB-hub

Uitbreiding / Aansluiting

Interfaces
4 x DVI-I
4 x USB 2.0 Type B
4 x audio ministekker
4 x microfoon ministekker
1 x DVI-I
1 x toetsenbord (USB) Type A
1 x muis (USB) Type A
2 x audio ministekker
2 x microfoon ministekker
1 x USB 2.0 Type A

Stroom

Voeding
Externe stroomadapter
Energieverbruik tijdens gebruik
10 watt

Diversen

Conformiteitsnormen
DDC-2B

Afmetingen & gewicht

Breedte
27 cm
Diepte
8.7 cm
Hoogte
5.5 cm
Gewicht
0.94 kg

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 80%

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
