Productnummer: 2681855

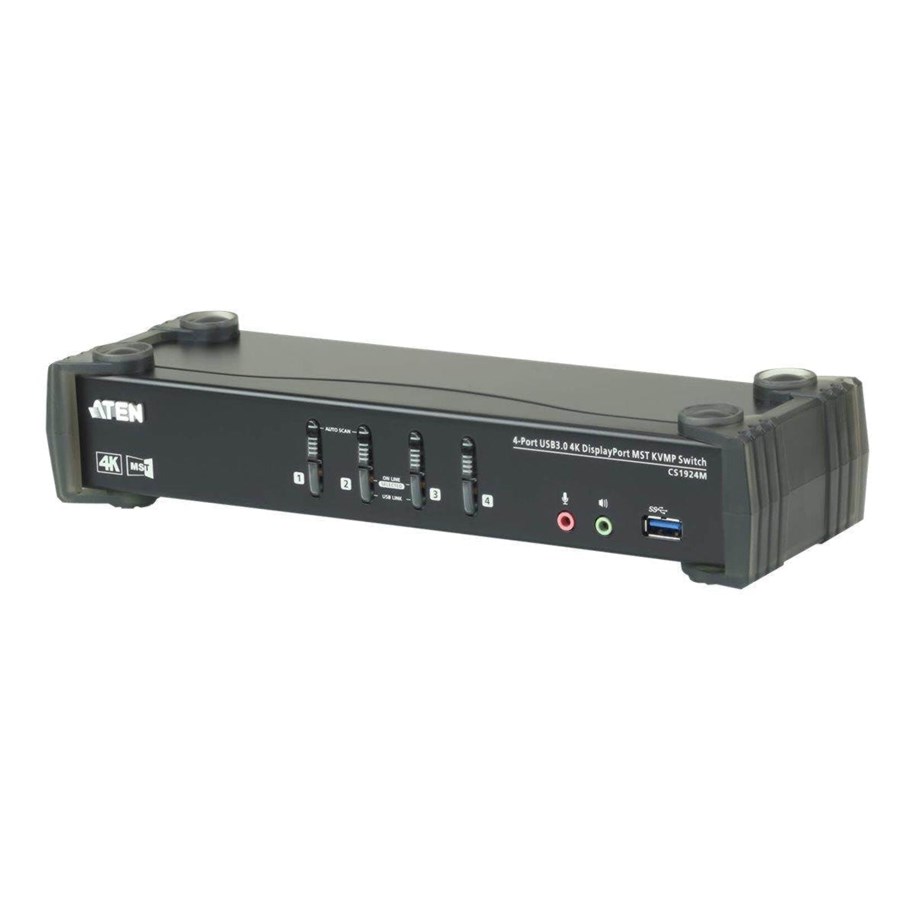

ATEN CS1924M KVMP Switch

KVM / audio / USB switch, 4 x KVM / audio / USB, 1 lokale gebruiker, desktop

566,85 € 468,47 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

Producent
Productnummer
2681855
Model
CS1924M-AT-G
EAN
4719264645839
Naar de website van de producent
Aantal computers
4
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
HDMI
Console-poorten
3.5mm hoofdtelefoon, 3.5mm mic, DisplayPort, HDMI, USB A
Aantal DisplayPorts
4
Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-B poorten
2
Aantal USB-poorten console
2
USB-hub
Ja
Aantal USB 3.2-hubpoorten type A (3.1 Gen 1)
2
USB-connectortype
USB Type-A, USB Type-B
Audio-aansluitingen
Ja
Hoofdtelefoonuitgangen
6
Aantal microfooningangen
6
Aansluiting voor netstroomadapter
Ja
HD type
4K Ultra HD
Maximum resolutie
4096 x 2160 Pixels
Videobandbreedte
60 Hz
Scaninterval
1,5,99 s
Kleur van het product
Zwart
Materiaal behuizing
Metaal, Kunststof
LED-indicatoren
Ja
drukknop
Ja
Sneltoetsen
Ja
Ingebouwd display
Nee
Stroombron
DC
Ingangsspanning
5 V
Stroomverbruik (typisch)
4,89 W
Ondersteunt Windows
Ja
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Luchtvochtigheid bij opslag
0 - 80 procent
Breedte
270 mm
Diepte
88 mm
Hoogte
55,5 mm
Gewicht
2,01 kg
Breedte verpakking
98 mm
Diepte verpakking
325 mm
Hoogte verpakking
210 mm
Gewicht verpakking
2,56 kg
Snelle installatiehandleiding
Ja
Gebruikershandleiding
Ja
Netto gewicht kartonnen doos
10,1 kg
Code geharmoniseerd systeem (HS)
85176200
(Buitenste) hoofdverpakking breedte
342 mm
(Buitenste) hoofdverpakking lengte
512 mm
(Buitenste) hoofdverpakking hoogte
232 mm
(Buitenste) hoofdverpakking brutogewicht
13,7 kg
Hoeveelheid per (buitenste) hoofdverpakking
5 stuk(s)

Poorten & interfaces

Aantal computers
4
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
HDMI
Console-poorten
3.5mm hoofdtelefoon, 3.5mm mic, DisplayPort, HDMI, USB A
Aantal DisplayPorts
4
Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-B poorten
2
Aantal USB-poorten console
2
USB-hub
Ja
Aantal USB 3.2-hubpoorten type A (3.1 Gen 1)
2
USB-connectortype
USB Type-A, USB Type-B
Audio-aansluitingen
Ja
Hoofdtelefoonuitgangen
6
Aantal microfooningangen
6
Aansluiting voor netstroomadapter
Ja

Prestatie

HD type
4K Ultra HD
Maximum resolutie
4096 x 2160 Pixels
Videobandbreedte
60 Hz
Scaninterval
1,5,99 s

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal, Kunststof
LED-indicatoren
Ja
drukknop
Ja
Sneltoetsen
Ja

Beeldscherm

Ingebouwd display
Nee

Energie

Stroombron
DC
Ingangsspanning
5 V
Stroomverbruik (typisch)
4,89 W

Minimale systeemeisen

Ondersteunt Windows
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Luchtvochtigheid bij opslag
0 - 80 procent

Gewicht en omvang

Breedte
270 mm
Diepte
88 mm
Hoogte
55,5 mm
Gewicht
2,01 kg

Verpakking

Breedte verpakking
98 mm
Diepte verpakking
325 mm
Hoogte verpakking
210 mm
Gewicht verpakking
2,56 kg

Inhoud van de verpakking

Snelle installatiehandleiding
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Netto gewicht kartonnen doos
10,1 kg
Code geharmoniseerd systeem (HS)
85176200
(Buitenste) hoofdverpakking breedte
342 mm
(Buitenste) hoofdverpakking lengte
512 mm
(Buitenste) hoofdverpakking hoogte
232 mm
(Buitenste) hoofdverpakking brutogewicht
13,7 kg
Hoeveelheid per (buitenste) hoofdverpakking
5 stuk(s)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
