Productnummer: 2681860

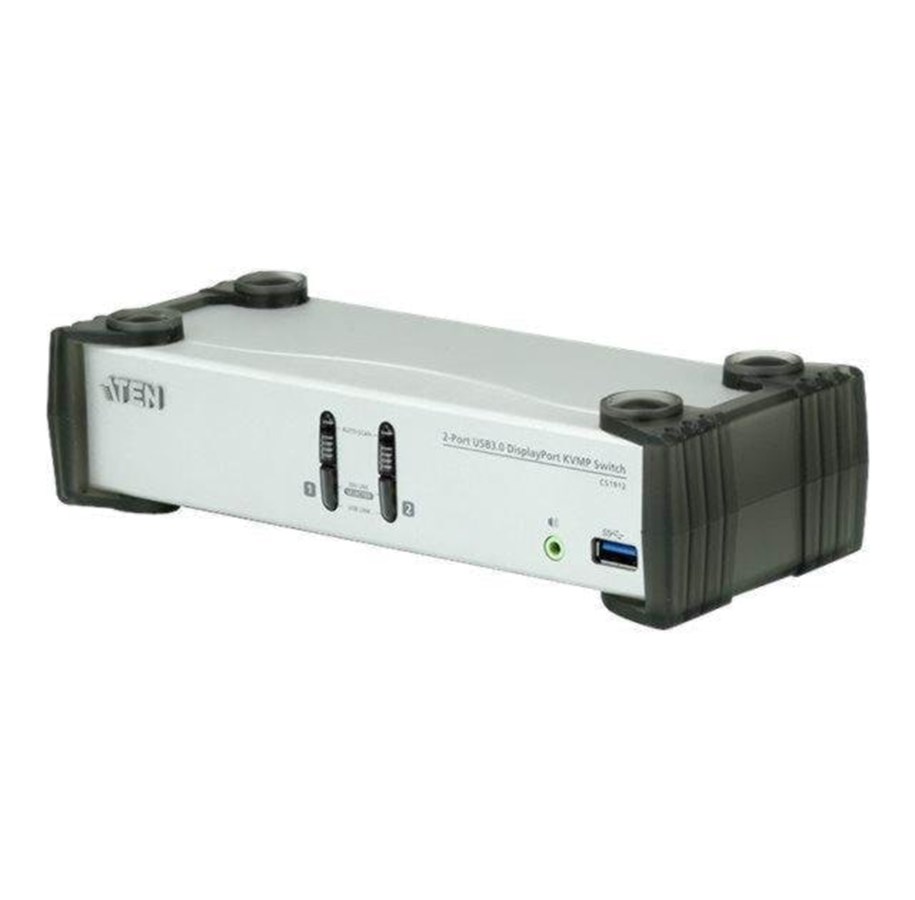

ATEN CS1912 KVMP Switch

KVM / audio / USB switch, 2 x KVM / audio / USB, 1 lokale gebruiker, desktop

200,85 € 165,99 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Inclusief oplader
Charger included

The ATEN CS1912 2-port USB 3.0 DisplayPort KVMP Switch provides the innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations. As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods - front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers. ATEN's unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a printer server, modem or splitter. With its rich feature set, the CS1912 is designed to surpass all requirements for video post-production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.

Producent
Productnummer
2681860
Model
CS1912
EAN
4719264645037
Naar de website van de producent
Aantal computers
2
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
DisplayPort
Console-poorten
DisplayPort, USB A
Aantal USB-poorten console
2
USB-hub
Ja
USB-connectortype
USB Type-A, USB Type-B
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Audio-aansluitingen
Ja
Hoofdtelefoonuitgangen
4
Aansluiting voor netstroomadapter
Ja
Maximum resolutie
3840 x 2160 Pixels
Automatisch schakelen
Ja
Scaninterval
1,99 s
HDCP
Ja
Hot-plug ondersteuning
Ja
Rack-montage
Nee
Kleur van het product
Zwart, Grijs
Materiaal behuizing
Metaal, Kunststof
LED-indicatoren
Status, USB
drukknop
Ja
Ingebouwd display
Nee
Spanning
5 V
Stroomverbruik (typisch)
3,3 W
Externe adapter
Ja
Ondersteunt Mac-besturingssysteem
Ja
Certificaten van naleving
RoHS
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Breedte
88 mm
Diepte
210 mm
Hoogte
55,5 mm
Gewicht
730 g
Meegeleverde kabels
Audio (3ˌ5 mm), DisplayPort, USB
Gebruikershandleiding
Ja
Inclusief AC-adapter
Ja

Poorten & interfaces

Aantal computers
2
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
DisplayPort
Console-poorten
DisplayPort, USB A
Aantal USB-poorten console
2
USB-hub
Ja
USB-connectortype
USB Type-A, USB Type-B
USB-versie
3.2 Gen 1 (3.1 Gen 1)
Audio-aansluitingen
Ja
Hoofdtelefoonuitgangen
4
Aansluiting voor netstroomadapter
Ja

Prestatie

Maximum resolutie
3840 x 2160 Pixels
Automatisch schakelen
Ja
Scaninterval
1,99 s
HDCP
Ja
Hot-plug ondersteuning
Ja

Design

Rack-montage
Nee
Kleur van het product
Zwart, Grijs
Materiaal behuizing
Metaal, Kunststof
LED-indicatoren
Status, USB
drukknop
Ja

Beeldscherm

Ingebouwd display
Nee

Energie

Spanning
5 V
Stroomverbruik (typisch)
3,3 W
Externe adapter
Ja

Minimale systeemeisen

Ondersteunt Mac-besturingssysteem
Ja

Duurzaamheid

Certificaten van naleving
RoHS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent

Gewicht en omvang

Breedte
88 mm
Diepte
210 mm
Hoogte
55,5 mm
Gewicht
730 g

Inhoud van de verpakking

Meegeleverde kabels
Audio (3ˌ5 mm), DisplayPort, USB
Gebruikershandleiding
Ja
Inclusief AC-adapter
Ja

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
