Productnummer: 2977986

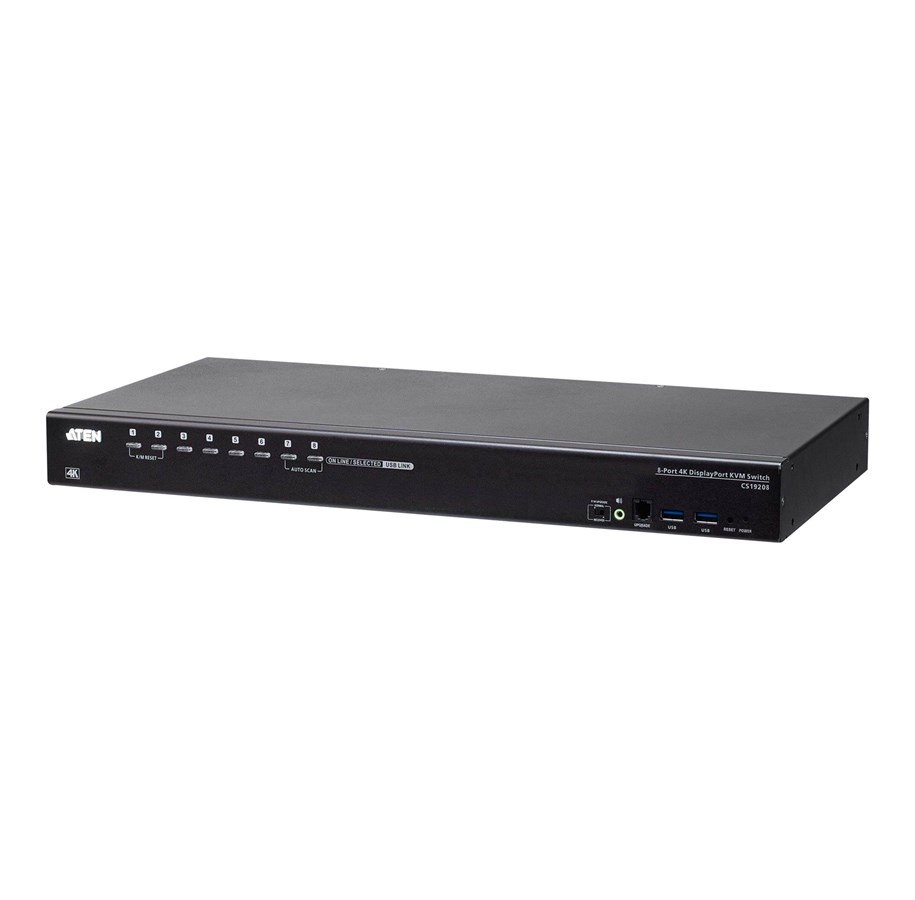

ATEN 8-Port USB True 4K DisplayPort KVM Switch wit
KVM / audio / USB switch, 8 x KVM / audio / USB, 1 lokale gebruiker, desktop, rack-uitvoering
1.128,72 €
932,83 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
The ATEN CS19208 KVM switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality. To meet the needs of easy expansion and flexibility, the CS19208 can be cascaded to two levels to control up to 128 computers from a single console. Furthermore, the CS19208 supports multi-display function by stacking up to eight CS19208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment. Besides, the CS19208 comes with a built-in USB 3.1 hub delivering fast data transfer rates, allowing users to speedup operations and share USB peripherals instantly. For user-friendly port selection methods, the CS19208 offers push buttons, hotkeys, and OSD, bringing effortless and intuitive operations. To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers.
Producent
Productnummer
2977986
Model
CS19208-AT-G
EAN
4719264649257
Naar de website van de producent
Productbeschrijving
ATEN CS19208 - KVM / audio / USB switch - 8 poorten - rack-uitvoering
Type apparaat
KVM / audio / USB switch - 8 poorten - cascadable
Type bijvoegsel
Rack-uitvoering
Subtype
DisplayPort
Poorten
8 x KVM / audio / USB
Aantal KVM-gebruikers
1 lokale gebruiker
Voorzieningen
Firmware die kan worden opgewaardeerd, metalen behuizing, EDID Expert, wachtwoordbeveiliging
Conformiteitsnormen
USB 3.1 Gen 1
Stroom
DC 12 V
Afmetingen (BxDxH)
43.24 cm x 21.43 cm x 4.4 cm
Gewicht
3.11 kg
Algemeen
Type apparaat
KVM / audio / USB switch - 8 poorten - cascadable
Type bijvoegsel
Desktop, rack-uitvoering
Subtype
DisplayPort
Poorten
8 x KVM / audio / USB
Aantal lokale KVM-gebruikers
1 lokale gebruiker
Toetsenbord / Muisinterface
USB
Maximaal aantal eenheden op een stapel
8
Max. resolutie
4096 x 2160 @ 60 Hz
Voorzieningen
Firmware die kan worden opgewaardeerd, metalen behuizing, EDID Expert, wachtwoordbeveiliging, broadcastmodus, ATEN Video DynaSync, automatische scanmodus
Conformiteitsnormen
USB 3.1 Gen 1
Ingebouwde apparaten
USB 3.1 Gen1-hub
Statuslampjes
Voeding, selecteren, USB, online
Uitbreiding / Aansluiting
Interfaces
1 x toetsenbord (USB) Type A
1 x muis (USB) Type A
1 x DisplayPort console
1 x HDMI console
2 x audio ministekker console
8 x DisplayPort
8 x USB 3.1 Gen 1 Type B
8 x audio ministekker
1 x beheer RJ-11
2 x USB 3.1 Gen 1 Type A
1 x muis (USB) Type A
1 x DisplayPort console
1 x HDMI console
2 x audio ministekker console
8 x DisplayPort
8 x USB 3.1 Gen 1 Type B
8 x audio ministekker
1 x beheer RJ-11
2 x USB 3.1 Gen 1 Type A
Stroom
Voeding
Externe stroomadapter
Vereiste netspanning
DC 12 V
Energieverbruik tijdens gebruik
18.44 Watt
Diversen
Meegeleverde accessoires
4 voetkussentjes
Kabels meegeleverd
2 x DisplayPort kabel
2 x SuperSpeed USB-kabel
2 x audiokabel
1 x firmware-opwaardeerkabel
2 x SuperSpeed USB-kabel
2 x audiokabel
1 x firmware-opwaardeerkabel
Rackmontagekit
Inclusief
Conformiteitsnormen
RoHS, DisplayPort 1.4, HDCP 2.2
Afmetingen & gewicht
Breedte
43.24 cm
Diepte
21.43 cm
Hoogte
4.4 cm
Gewicht
3.11 kg
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 80% (niet-condenserend)
Min. opslagtemperatuur
-20 °C
Max. opslagtemperatuur
60 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
