Productnummer: 3021130

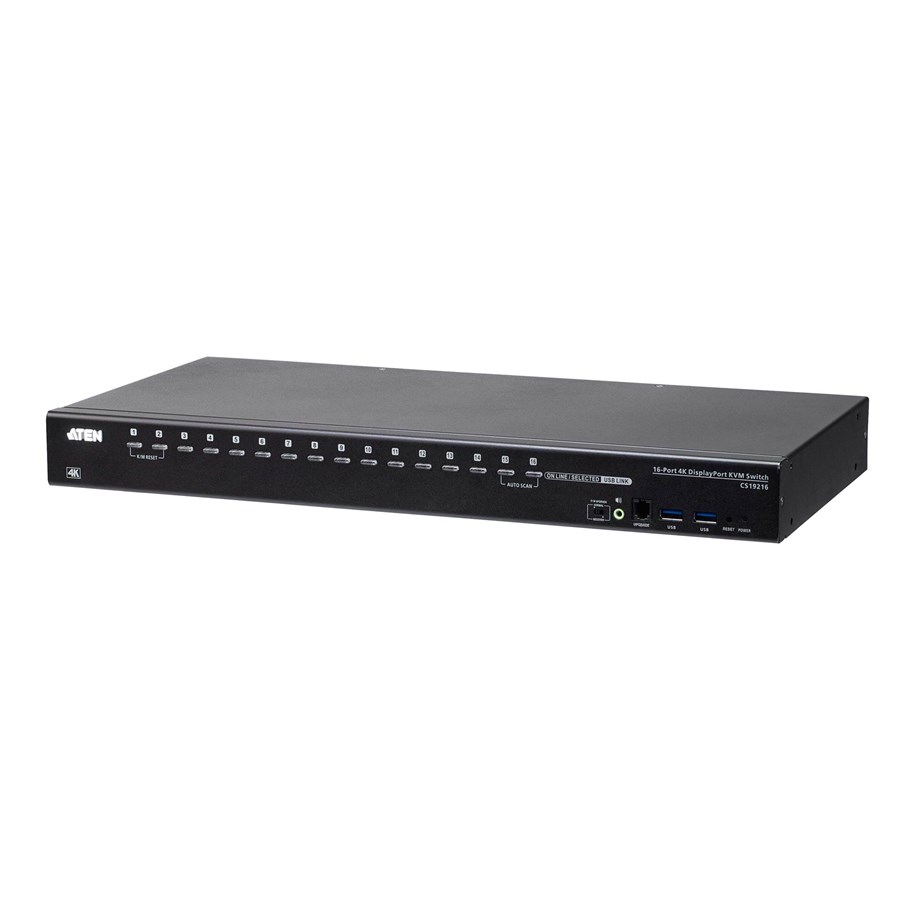

ATEN 16-Port USB True 4K DisplayPort KVM Switch wi

KVM / audio / USB switch, 16 x KVM / audio / USB, 1 lokale gebruiker, desktop, rack-uitvoering

1.654,63 € 1.367,46 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

The ATEN CS19216 16-port USB 3.0 4K DisplayPort KVM switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi-display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.With two patented ATEN technology - Video DynaSync and EDID Expert, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.Besides, the CS19216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the C19216 offers pushbuttons, hotkeys, RS-232 commands, and OSD with UI, bringing effortless and intuitive operations.

Producent
Productnummer
3021130
Model
CS19216-AT-G
EAN
4719264649264
Naar de website van de producent
Aantal computers
16
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
DisplayPort
Console-poorten
3.5mm hoofdtelefoon, 3.5mm mic, DisplayPort, HDMI, USB A
Aantal DisplayPorts
16
DisplayPort versie
1.2
Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-B poorten
16
Aantal USB-poorten console
2
USB-hub
Ja
Aantal USB 3.2-hubpoorten type A (3.1 Gen 1)
2
USB-connectortype
USB Type-A, USB Type-B
Audio-aansluitingen
Ja
Hoofdtelefoonuitgangen
17
Aantal microfooningangen
17
Aansluiting voor netstroomadapter
Ja
HD type
4K Ultra HD
Maximum resolutie
4096 x 2160 Pixels
Videobandbreedte
60 Hz
Scaninterval
1,5,255 s
HDCP
Ja
Upgraden van firmware mogelijk
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
drukknop
Ja
Ingebouwd display
Nee
Stroombron
DC
Ingangsspanning
12 V
Stroomverbruik (typisch)
26,66 W
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Ondersteunt Mac-besturingssysteem
Ja
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Luchtvochtigheid bij opslag
0 - 80 procent
Breedte
432,4 mm
Diepte
214,3 mm
Hoogte
44 mm
Gewicht
4,18 kg
Breedte verpakking
133 mm
Diepte verpakking
499 mm
Hoogte verpakking
324 mm
Gewicht verpakking
5,33 kg
Snelle installatiehandleiding
Ja
Gebruikershandleiding
Ja
Netto gewicht kartonnen doos
12,5 kg
Code geharmoniseerd systeem (HS)
85176200
(Buitenste) hoofdverpakking breedte
427 mm
(Buitenste) hoofdverpakking lengte
519 mm
(Buitenste) hoofdverpakking hoogte
348 mm
(Buitenste) hoofdverpakking brutogewicht
15,3 kg
Hoeveelheid per (buitenste) hoofdverpakking
3 stuk(s)

Poorten & interfaces

Aantal computers
16
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
DisplayPort
Console-poorten
3.5mm hoofdtelefoon, 3.5mm mic, DisplayPort, HDMI, USB A
Aantal DisplayPorts
16
DisplayPort versie
1.2
Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-B poorten
16
Aantal USB-poorten console
2
USB-hub
Ja
Aantal USB 3.2-hubpoorten type A (3.1 Gen 1)
2
USB-connectortype
USB Type-A, USB Type-B
Audio-aansluitingen
Ja
Hoofdtelefoonuitgangen
17
Aantal microfooningangen
17
Aansluiting voor netstroomadapter
Ja

Prestatie

HD type
4K Ultra HD
Maximum resolutie
4096 x 2160 Pixels
Videobandbreedte
60 Hz
Scaninterval
1,5,255 s
HDCP
Ja
Upgraden van firmware mogelijk
Ja

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
drukknop
Ja

Beeldscherm

Ingebouwd display
Nee

Energie

Stroombron
DC
Ingangsspanning
12 V
Stroomverbruik (typisch)
26,66 W

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Ondersteunt Mac-besturingssysteem
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 80 procent
Luchtvochtigheid bij opslag
0 - 80 procent

Gewicht en omvang

Breedte
432,4 mm
Diepte
214,3 mm
Hoogte
44 mm
Gewicht
4,18 kg

Verpakking

Breedte verpakking
133 mm
Diepte verpakking
499 mm
Hoogte verpakking
324 mm
Gewicht verpakking
5,33 kg

Inhoud van de verpakking

Snelle installatiehandleiding
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Netto gewicht kartonnen doos
12,5 kg
Code geharmoniseerd systeem (HS)
85176200
(Buitenste) hoofdverpakking breedte
427 mm
(Buitenste) hoofdverpakking lengte
519 mm
(Buitenste) hoofdverpakking hoogte
348 mm
(Buitenste) hoofdverpakking brutogewicht
15,3 kg
Hoeveelheid per (buitenste) hoofdverpakking
3 stuk(s)

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
