Productnummer: 2896593

Elma Instruments Elma dt 901 - phase sequence tester cat iv

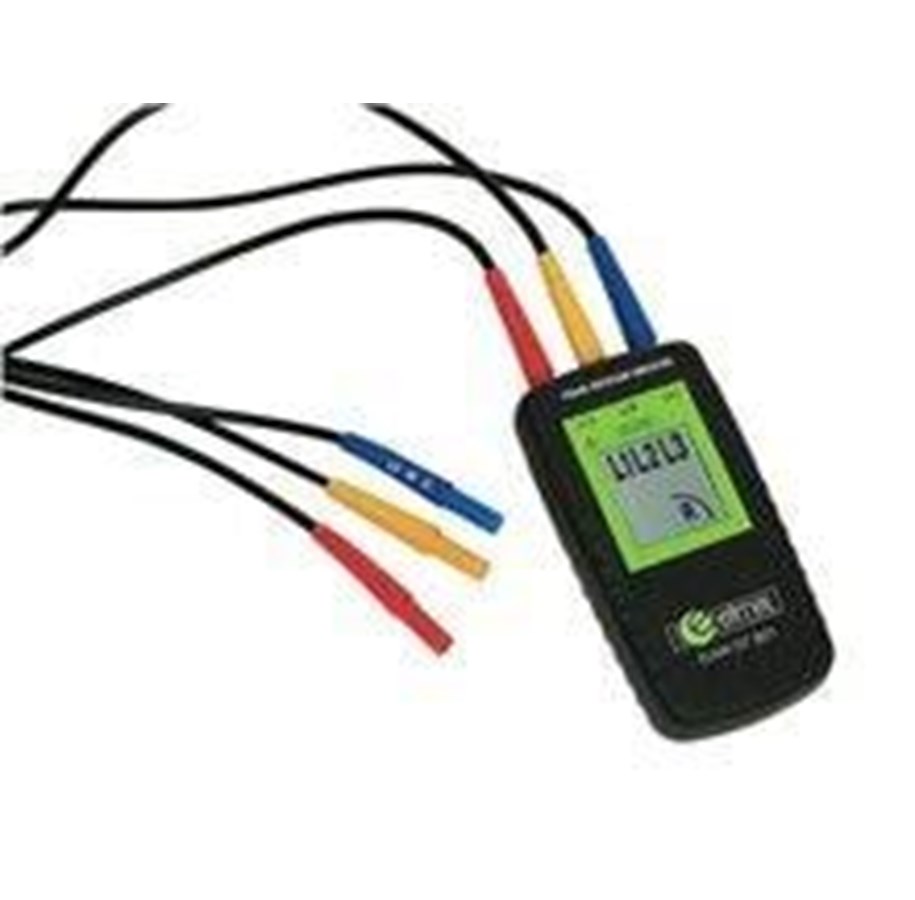

Elma DT901 is a new security phase sequence / rotating field tester with large clear LCD display instead of traditional LEDs. The display, which is very easy to read even in sunlight, showing both the individual phases and rotation. Note that this instrument does not show rotary field by mistake connection, for example. two phases and zero, but only when there are three real phases connected. The instrument is equipped with integrated rubber sheath and meet IEC 1010-1 CAT III 600V and CAT IV 300V. Supplied incl. bag, safety test leads and 3 alligator clips. Technical data: Voltage range: 40 - 690VAC Frequency: 15 - 400Hz Dimensions: 124 x 61 x 27 mm Weight: 200 g

Lees meer
156,14 € 129,04 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

Phase sequence tests with LCD, DT 901 Product description: Elma DT901 is a new safety phase sequence/rotation field tester, with a large clear LCD display instead of traditional LEDs. The display, which is very easy to read even in sunlight, shows both individual phases and rotation fields. Note that this instrument does not show rotation fields when incorrectly connected to e.g. two phases and neutral, but only when there are three correct phases.The instrument comes with an integrated rubber cap and complies with IEC 1010-1 CAT III 600V and CAT IV 300V. Supplied including bag, safety test leads and 3 crocodile clips.TECHNICAL DATA Voltage range: 40 - 690VAC Frequency:15 -400Hz Dimensions:124 x61 x27 mm Weight:200 g

Producent
Productnummer
2896593
Model
5703317410771
EAN
5703317410771

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
