Productnummer: 2503496

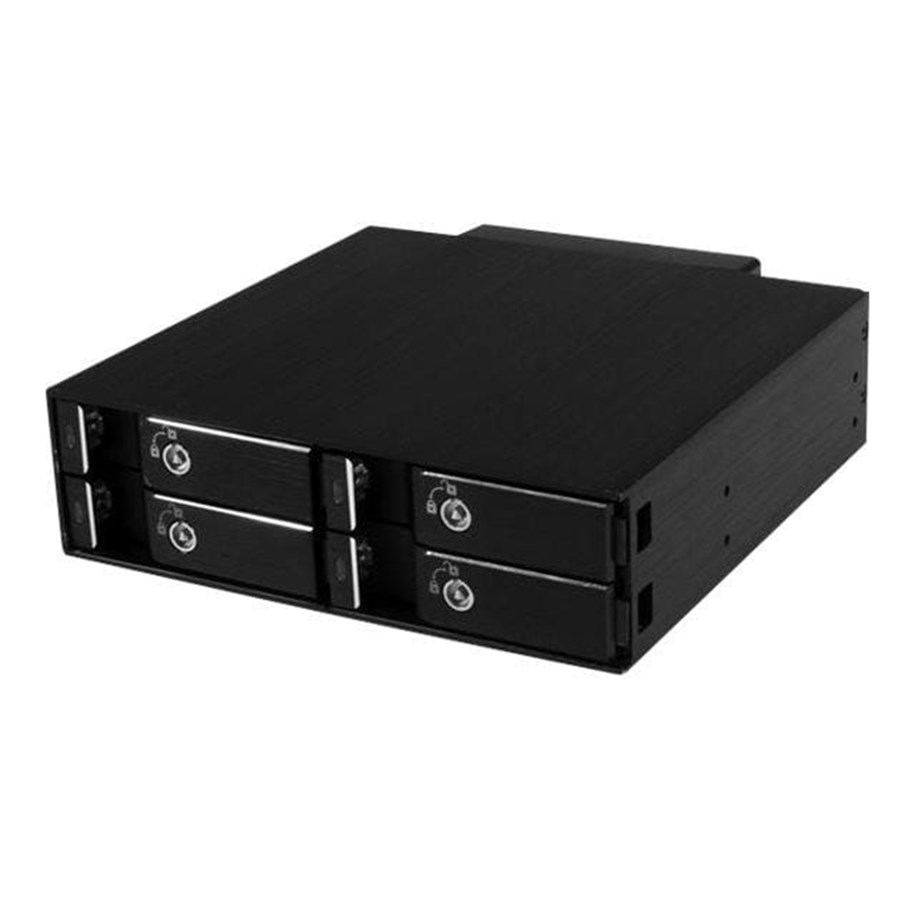

StarTech.com 4-bay mobiel Rack Backplane voor 2,5 inch SATA/SAS schijven
Storage cabinet, 4 bays (SATA-600/SAS-2), 0 x
114,16 €
94,35 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
Hot swap with ease by installing four SSDs/HDDs into one 5.25in bay. Now it's easy to share and enhance the storage capabilities of your server or PC. This mobile rack backplane allows you to install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems, making it ideal for systems integrators and administrators who need flexible data storage management.The mobile rack backplane is designed to protect your valuable data and provide reliable performance, with an aluminum housing that enhances heat dissipation and two 40mm fans that improve airflow to minimize heat build-up and ensure optimum operating temperature.You can lock the removable steel trays in place for enhanced drive protection, while the backplane can be mounted vertically or horizontally for error-free tray insertion and maximum compatibility with servers or desktop computers. The Non-Scratch SATA (NSS) connector provides a high level of connectivity without damaging your drives during installation or removal
Producent
Productnummer
2503496
Model
SATSASBP425
EAN
0065030859837
Naar de website van de producent
Productbeschrijving
StarTech.com 4-Bay Mobile Rack Backplane voor 2.5" SATA/SAS Drives - Hot Swap SSDs/HDDs 5-15mm - Supports SAS II & SATA III (6 Gbps) - opslagbehuizing
Type apparaat
Opslagbehuizing
Kleur
Zwart
Aantal geïnstalleerde apparaten/modules
4 (max.)
Ondersteunde Drives
SATA-600 / SAS-2
Harde schijf
0 SATA 6Gb/s / SAS 6Gb/s - hot-swap
Afmetingen (BxDxH)
14.6 cm x 15.15 cm x 4.2 cm
Gewicht
740 g
Ontworpen voor
P/N: SATBP125VP, SATSASBP125
Algemeen
Type apparaat
Opslagbehuizing
Kleur bijvoegsel
Zwart
Chassis
Aantal ondersteunde apparaten/modules
4
Ondersteunde Drives
SATA-600 / SAS-2
Processor
CPU
Zonder CPU
Harde schijf
Type
Hot-swap
Capaciteit
0
Interfacetype
SATA 6Gb/s / SAS 6Gb/s
Uitbreiding / Aansluiting
Expansion Bays
4 (totaal) / 4 (vrij) x hot-swap - 2.5"
Interfaces
4 x SATA 6Gb/s - 7 pins Serial ATA
4 x SAS 6Gb/s - 7 pins Serial ATA
1 x - 4-PIN interne voeding
4 x SAS 6Gb/s - 7 pins Serial ATA
1 x - 4-PIN interne voeding
Diversen
Voorzieningen
Sleutelvergrendeling, LED-indicator, ingebouwde koelventilator
Kabels meegeleverd
4 x Seriële ATA-kabel - 4 m
MTBF (gemiddelde tijd tussen twee storingen)
30,000 uur
Conformiteitsnormen
FCC, RoHS
Meegeleverde accessoires
4 x stationslades, 20 x stationsmontageschroeven, 8 x moederkaartmontageschroeven
Afmetingen & gewicht
Breedte
14.6 cm
Diepte
15.15 cm
Hoogte
4.2 cm
Gewicht
740 g
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
5 - 65%
Informatie over Compatibiliteit
Ontworpen voor
P/N: SATBP125VP, SATSASBP125
